Part #: 522-1135-012

Model: 37R-2

NSN:

5985-01-080-8452

OEM:

Collins Aerospace

Desc:

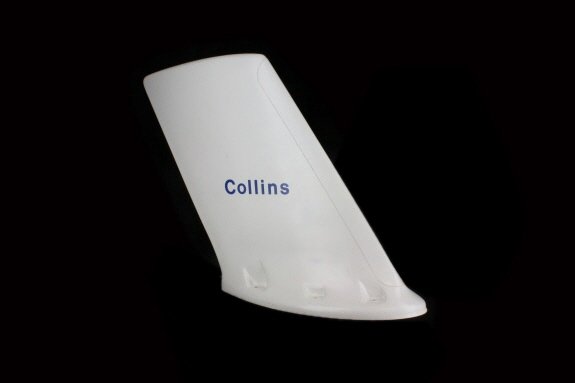

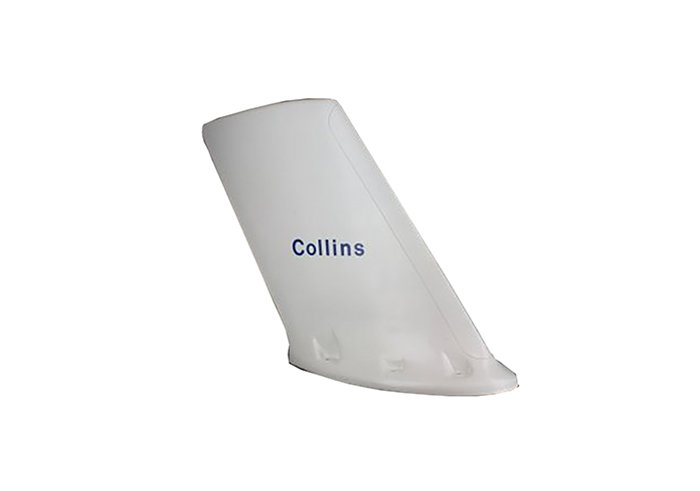

VHF Comm Antenna

Part Number :



37R-2



FEATURES

  • VHF Airborne Communications Antenna for 116 - 152 MHz frequency range
  • Pressurized BNC jack



SPECIFICATIONS

Frequency Range: 116 to 152 MHz Compliance: FAA TSO-C37, C38
Polarization: Vertical Duty Cycle: Continuous, unattended
Gain: 120 Mhz, 2.5 dB; 150 MHz, 3.2 dB Weight: 3.0 lb.
Construction: Laminated epoxy fiber-glass skin, foam filling enclosing printed circuit radiating elements Finish: White epoxy paint
Temperature: -62 to 85C Altitude: Equivalent to absolute pressure of 111 mm of mercury
Height: 12.84"



Part Number: Description:
522-1135-012 VHF Comm Antenna



522-1135-012
- VHF Comm Antenna

NSN: 5985-01-080-8452
