Part #:

Model: 37P-5

OEM:

Collins Aerospace

Desc:

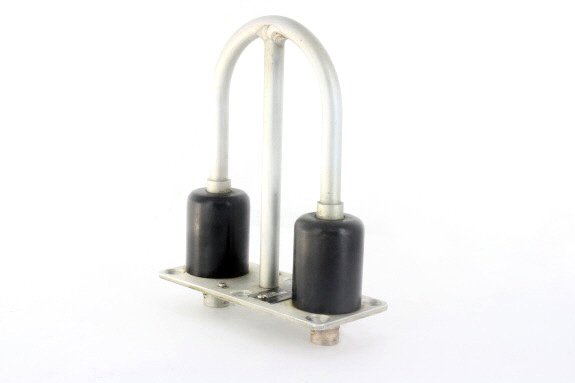

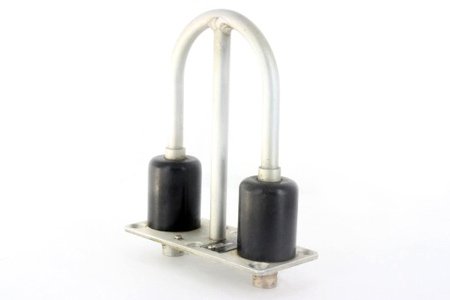

Glideslope Antenna

Part Number :


37P-5



FEATURES

  • Folded dipole antenna used to receive signals in the 329-335 Mhz range
  • Designed to be used with two receivers
  • Two C jacks both presenting a 52-ohm impedance



SPECIFICATIONS
Frequency Range: 329 to 335 MHz Duty Cycle: Continuous, unattended
Input Impedance: 52 ohms at each connector Connectors: Two C jacks
Grounding: Electrically grounded for dc and all low frequencies Weight: 0.5 lb.
Mounting Plate: 114.3 x 50.8 mm (4.5 x 2 in.) Extension From Aircraft: 133.4 mm (5.25")
Temperature: -55 to 70C Altitude: 55000 ft.
Part Number: Description:
522-0700-003 Glideslope Antenna



522-0700-003
- Glideslope Antenna

NSN: 5826-00-861-8984

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
522-0700-023
- Glideslope Antenna

NSN: 5826-00-861-8984

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
