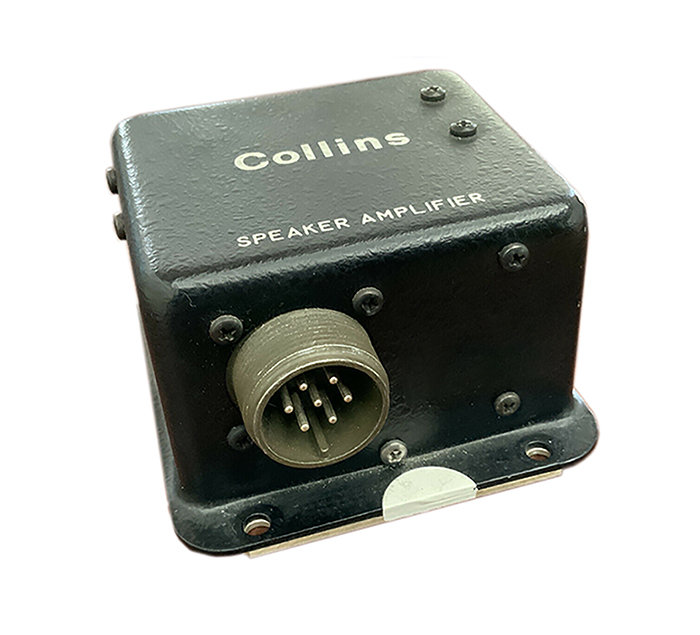

Picture of product 356F-3

Part #:

Model: 356F-3

OEM:

Collins Aerospace

Desc:

Speaker Amplifier

Part Number :


356F-3



FEATURES

  • Speaker Amplifier used to amplify headset level (100 mW) signals to speaker level
  • Transistor push-pull audio power amplifier with rated output of 18 watts
  • Compact and lightweight at 1.2 lbs.



SPECIFICATIONS

Dimensions: 3.438"W x 2.125"H x 3.8125"L Weight: 1.2 lbs.
Temperature: -55 to +55C (continuous) Altitude: 55000 ft. max.
Power Source: 27.5VDC, 40ma with no input, 1.3 amp at full rated output Power Output: 18 watts rated, 36 watts peak
Load Impedance: 4,8, or 16 ohms Input Impedance: 600 ohms, center tapped
Noise Level: 60 db below 10 watts Power Gain: 20 db
Part Number: Description:
522-2867-00 Speaker Amplifier



522-2867-00
- Amplifier
Price Condition Status
RFQ RFQ RFQ
522-2867-000
- Speaker Amplifier

NSN: 5820-00-936-6928

Price Condition Status
RFQ RFQ RFQ
