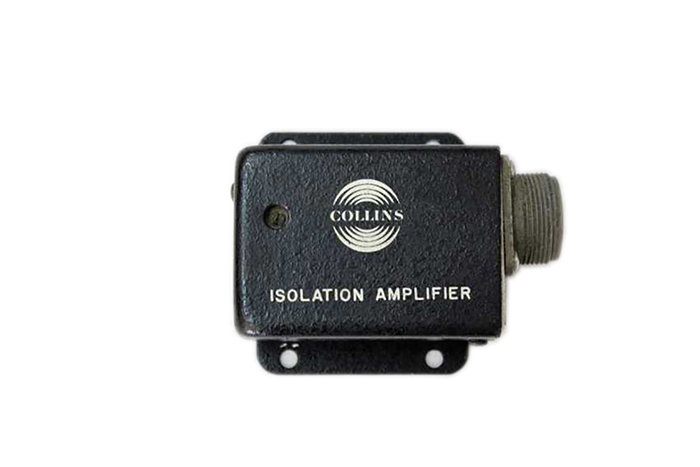

Picture of product 356C-4

Part #:

Model: 356C-4

OEM:

Collins Aerospace

Desc:

Isolation Amplifier

Part Number :


356C-4



FEATURES

  • Isolation Audio Amplifier used to amplify microphone and recevier output signals to sufficient power to operate headphones or drive a speaker amplifier
  • 2-stage transistor amplifier with an additional transistor used as a voltage regulator
  • Compact and lightweight at 0.5 lbs.



SPECIFICATIONS

Dimensions: 2.75"W x 1.5"H x 3.5"L Weight: 0.5 lbs.
Temperature: -55 to +55C (continuous) Altitude: 55000 ft. max.
Power Source: 27.5VDC with less than 0.5 volt ripple, 125-185 ma Power Output: 100 mw
Load Impedance: 600 ohms Frequency Response: +-3 db at 200 to 6000 cps (1000-cps reference)
Noise Level: Not less than 40 db below 100 mw Gain: 40 db
Part Number: Description:
522-2866-00 Isolation Amplifier



522-2866-00
- Isolation Amplifier

NSN: 5895-00-811-6818

Price Condition Status
RFQ RFQ RFQ
522-2866-000
- Isolation Amplifier

NSN: 5996-00-876-3164

Price Condition Status
$350.00 SV OUTRIGHT REQUEST LEAD TIME
