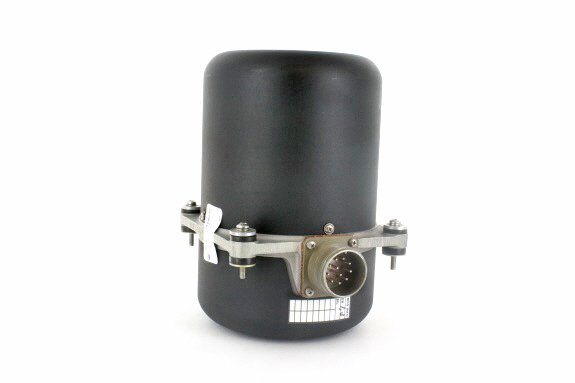

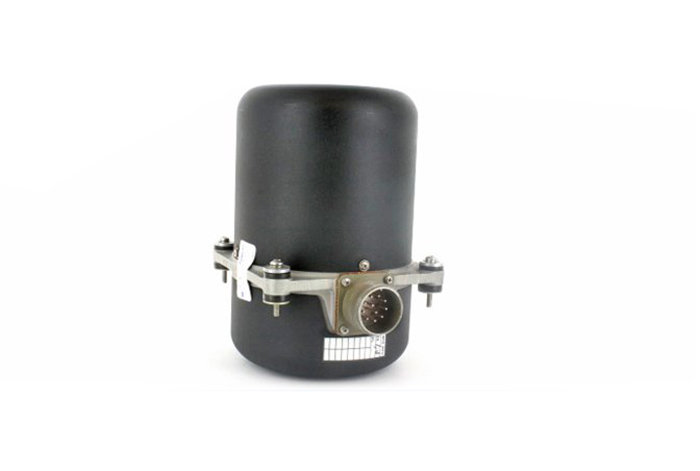

Part #: 522-3241-00

Model: 332E-4

OEM:

Collins Aerospace

Desc:

Directional Gyro

Part Number :


332E-4



FEATURES

  • Electrically driven Directional Gyro used with PN-101 Compass System
  • Provides dynamic or short-term portion of magnetic heading output for compass system
  • Electrical excitation for gyro provided by 328A-3G slaving accessory
  • 3-wire synchro from output



SPECIFICATIONS

Dimensions: 4.81"W x 7.375"H x 6.00"L Weight: 4.5 lbs.
Warmup Time: Instrument performance will be achieved 1 minute after application of rated power. Three minutes are required to obtain maximum rotor speed Service: Continuous service
Mounting: Rigid mount and secured with four thumbscrews Temperature: -55 to 70C (operating)
Altitude: -1000 to 40000 feet Power Source: 26 volts, 400 Hz, single-phase, 115 volts, 400 Hz, single-phase
Signal Output: 3-wire ac signal with a maximum line-to-line value of 11.8 volts Accuracy: Transmitter error will not exceed +20 minutes
Part Number: Description:
522-3241-000 Directional Gyro



Serial # 984
Condition OH
Mods 1,3
Tag Date 10/01/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 1238
Condition OH
Mods 1-3
Tag Date 09/27/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 605
Condition OH
Mods 1-3
Tag Date 10/30/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
522-3241-00
- Directional Gyro
Price Condition Status
$2,250.00 OH EXCHANGE 3 IN STOCK
$2,750.00 OH OUTRIGHT 3 IN STOCK
522-3241-000
- Directional Gyro
Price Condition Status
$2,250.00 OH EXCHANGE 1 IN STOCK
$2,750.00 OH OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes. The C-14A directional gyro can be used in place of the 332E-4 dir. gyro and 328A-3G slaving amp. However, the amplifier in the C-14A gyro is not enough to drive the compass card in the 331A-3G HSI. Therefore, the 341C-1 servo amplifier must be used in conjunction with the C-14A to function properly the Collins PN-101.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

Most of the Collins Proline I components were originally manufactured in the early 1970s. Collins has continued to produce some of the Proline I components by special order over the past 30 years however large scale production stopped many years ago. Most of the Collins Proline I product lines incorporates 1960s and 70s analog technology. Collins has superseded the Proline I product line several times with the Proline II, Proline IV, and Proline 21 lines. As a result, some service parts needed to maintain and repair original Collins Proline I components are no longer available. Therefore, you may experience limited to no warranty available and unreliability for many of the Proline I units.

Southeast Aerospace offers many affordable, upgradeable options that are available for aircraft with Collins Proline I. As avionics integration specialists and premiere Collins dealer, Southeast Aerospace is experienced and knowledgeable on all Collins Proline generations.

If you are interested in upgrading any of your original Collins Proline I systems, please contact us for the most reasonable, optimal choice available.
