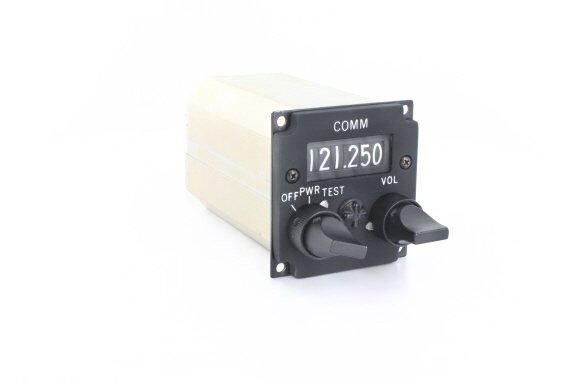

Part #: 522-3617-000

Model: 313N-5A

OEM:

Collins Aerospace

Desc:

VHF Comm Control

Part Number :


313N-5A



FEATURES

  • VHF communications control typically used with VHF-20/A and 618M-2B/D Transceivers
  • Tunes frequency range of 118.000 to 135.975 (720 channels)
  • Product improved versions (-5XX series) available with modular switch assemblies and flexible printed circuit board to replace most of point-to-point wiring and seperate switch wafers used in -00X models (see table below)
  • Models available with 5 or 27.5V, red or white lighting (see table below)
  • Frequency selected by two knobs
  • Includes volume control, power, and test control knobs
  • -5XX series contain internal diodes for tandem tuning (see table below)

PLEASE NOTE: All parallel tuning control heads, including the 313N( ) series, CTL-20, and CTL-21 controls, are not capable of providing 8.33 kHz tuning. These controls must be replaced with an 8.33 kHz capable control.





SPECIFICATIONS

Frequency: 118.00-135.975 MHz with 25-kHz spacing Lighting: 5Vac or 27.5Vac red or white
Dimensions: 2.625"H x 2.5"W x 3.78"L Weight: 1.1 lbs.
Part Number: Description:
522-3617-000 27.5V dc red lighting (0.12A current)
522-3617-001 5V ac white lighting (0.6A current)
522-3617-002 5V ac red lighting (0.6A current)
522-3617-003 27.5V dc white lighting (0.12A current)
522-3617-500 27.5V dc red lighting (0.12A current), with product improvements as mentioned above and internal diodes for tandem tuning
522-3617-503 27.5V dc white lighting (0.12A current), with product improvements as mentioned above and internal diodes for tandem tuning



522-3617-000
- VHF Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Most of the Collins Proline I components were originally manufactured in the early 1970s. Collins has continued to produce some of the Proline I components by special order over the past 30 years however large scale production stopped many years ago. Most of the Collins Proline I product lines incorporates 1960s and 70s analog technology. Collins has superseded the Proline I product line several times with the Proline II, Proline IV, and Proline 21 lines. As a result, some service parts needed to maintain and repair original Collins Proline I components are no longer available. Therefore, you may experience limited to no warranty available and unreliability for many of the Proline I units.

Southeast Aerospace offers many affordable, upgradeable options that are available for aircraft with Collins Proline I. As avionics integration specialists and premiere Collins dealer, Southeast Aerospace is experienced and knowledgeable on all Collins Proline generations.

If you are interested in upgrading any of your original Collins Proline I systems, please contact us for the most reasonable, optimal choice available.
