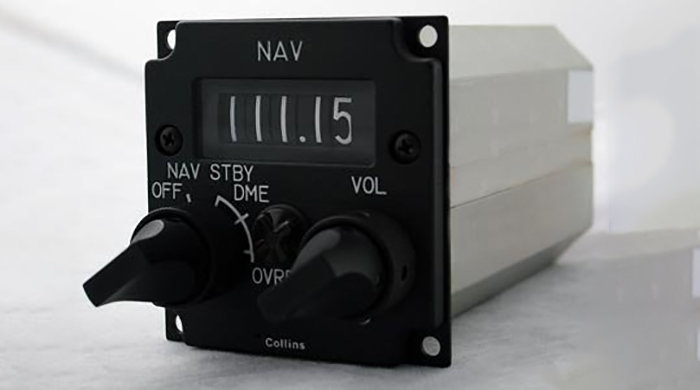

Picture of product 313N-4D

Part #:

Model: 313N-4D

OEM:

Collins Aerospace

Desc:

VHF Control

Part Number :


313N-4D



FEATURES

  • VHF Navigation Control with analog readout
  • Models available that provide channel selection for DME equipment utilizing resitive bridge tuning per ARINC characteristic 521c (see table below)
  • Models available that provide channel selection for DME equipment utilizing two-out-of-five remote selector system per ARINC characteristic 568 (see table below)
  • Models available that contain isolation diodes to allow transferring between two control units without interaction in accordance with ARINC characteristic 410 (see table below)
  • Product improved versions (-5XX series) available with modular switch assemblies and flexible printed circuit board to replace most of point-to-point wiring and seperate switch wafers used in -2XX models (see table below)
  • Models available with either 28VDC red or white lighting (see table below)
  • Provides ILS operation and supplies output to energize navigation receivers for 40-channel operation
  • Frequency selected by two knobs
  • Includes volume control, power, and test control knobs



SPECIFICATIONS

Frequency: 108.00-117.95 MHz and 133.00 to 135.95 MHz with 50-kHz spacing Lighting: 27.5 Volt red or white
Dimensions: 2.625"H x 2.5"W x 4.343"L Weight: 1.0 to 1.2 lbs.
Temperature: -55 to 70C (operating) Altitude: Up to 45000 feet (operating)
Part Number:  Description:
522-3616-200 27.5V red lighting, resitive bridge tuning for DME channeling
522-3616-201 27.5V red lighting, two-out-of-five remote selection for DME channeling
522-3616-202 27.5V red lighting, two-out-of-five remote selection for DME channeling, isolation diodes for tranfer between two controls
522-3616-204 27.5V white lighting, two-out-of-five remote selection for DME channeling
522-3616-501 27.5V red lighting, two-out-of-five remote selection for DME channeling, with product improvements as mentioned above
522-3616-502 27.5V red lighting, two-out-of-five remote selection for DME channeling, isolation diodes for tranfer between two controls, with product improvements as mentioned above
522-3616-503 5 VDC white lighting, two-out-of-five remote selection for DME channeling, isolation diodes for tranfer between two controls, with product improvements as mentioned above
522-3616-504 27.5V white lighting, two-out-of-five remote selection for DME channeling, isolation diodes for tranfer between two controls, with product improvements as mentioned above



522-3616-201
- VHF Control

NSN: 5820-01-129-6009

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
522-3616-202
- Nav Control

NSN: 5895-01-422-0953

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
522-3616-502
- Nav Control

NSN: 5895-01-422-0954

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
