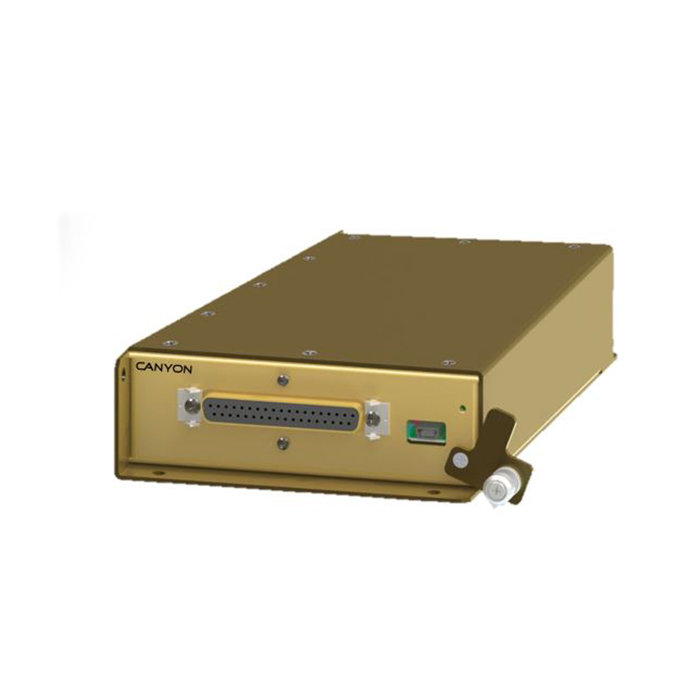

Picture of product NAT630A

Part #: 630A-000

Model: NAT630A

OEM:

Canyon Aeroconnect

Desc:

Aural Warning Generator

Part Number :




FEATURES

  • 16-number storage
  • Parallel handset operation
  • Field-adaptable settings: mic, sidetone, DTMF, ringer output levels
  • Backlighting adjustable
  • Interfaces with Globalstar, Iridium and Inmarsat
  • Interfaces with airborne cellular systems
  • Storage and playback of virtually any audible signal upon activation by control signal
  • User may choose from a pre-set sound library, or may define their own warning set
  • AWGs are in service on helicoptersfixed wing military trainers, business jets, regional jets, and transport aircraft
  • Standard Microsoft Windows audio alert .wav files. The installer may create and load their own files
  • Fully installer-programmable alert volume levels.
  • Built-in test capability to diagnose faults and report to the aircraft maintenance computer via RS-422
  • Full compatibility with the original Model 630, so it’s retrofittable to existing aircraft harness and mounting



SPECIFICATIONS

Output noise: < -50 dB (-70 dB typical) Total Harmonic Distortion (THD+N): <3% (<1% typical)
Audio I/O: Flat-to-within 3 dB from 300 MHz to 6 kHz Audio Outputs Playback Messages: Flat-to-within 3 dB from 300 Hz to 15 kHz
Crosstalk: -80dB (typical) Operating temp: -55° C to +70° C
Operating Alt: 55,000 feet (16,764 m) Height: 7.81” (19.84 cm)
Width: 4.96” (12.59 cm) Length: 1.68” (4.27 cm) (not including cable exit and bend radius)
Weight: 1.25 lb. (0.57 kg.) TSO C50c Compliance: : Meets the performance requirements of RTCA DO-214 while testing to the environmental conditions of RTCA DO-160F





Part Number: Description:
630A-000 Aural Warning Generator















630A-000
- Aural Warning Generator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
