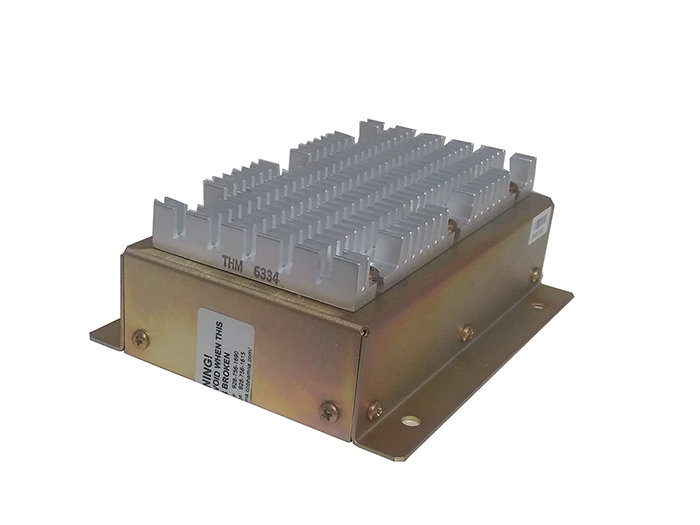

Picture of product LD12-002

Part #: LD12-002

OEM:

Canyon Aeroconnect

Desc:

LED Dimmer/Test unit (12 lines)

Part Number :


LD12-002



FEATURES

  • Provides lamp dimming and test functions for lamps and annunciators independent from the aircrafts existing dimming system
  • LL08 and PB08 can be used with the RS family of remote switches for annunciation and switching applications
  • Illuminated switches and annunciators are used to provide the visual reference for a complete system
  • Extensive legend set is included for general Nav and GPS installations
  • Sealed gold switch section is rated for over 1,000,000 operations



SPECIFICATIONS

Weight: 0.84 lbs (380 g) Height: 1.78 inches (45.1 mm) max
mounting: Bulkhead attachment (4 x 10-32 screws) width : 3.99 inches (101. mm) (Max Flanges)
length: 5.29 inches (134.4 mm) max temperature: -15°C to +70°(ambient), -55°C to +85°C (survival)
altitude: 50,000 ft. humidity: 95% Non-condensing Cat. A
vibration: Conforms to DO-160C, Cat. B, M, N led outputs: 0 mA to 50 mA of current to 2 floating LED circuits and 10 ground keyed circuits for system annunciators



Part Number: Description:
LD12-002 LED Dimmer/Test Unit (12 lines)





LD12-002
- LED Dimmer/Test unit (12 lines)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
