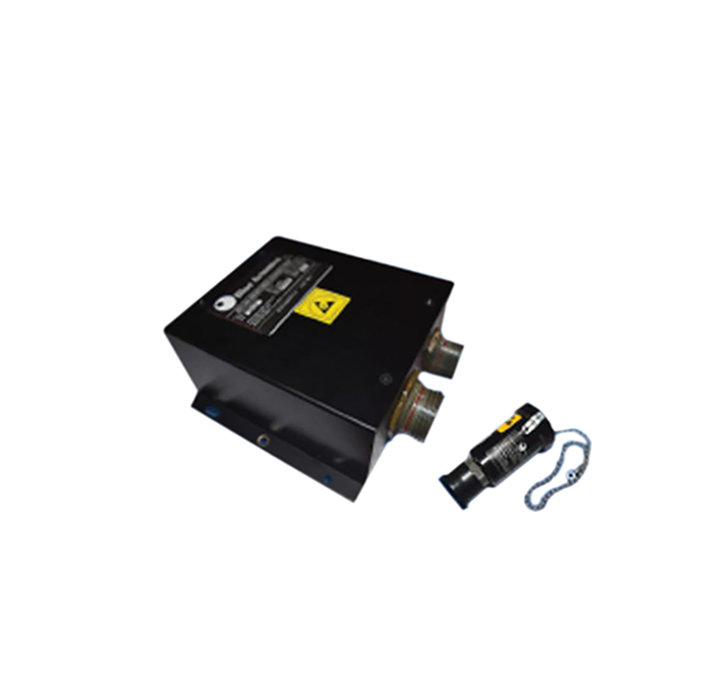

Picture of product RFS

Part #: BA-440

Model: RFS

OEM:

Blue Avionics

Desc:

Router/Filter

Part Number :
Logo (2).jpg







FEATURES

  • BA-440 Router/Filter is designed to perform hundreds of functions with only configuration changes without impacting the software or hardware
  • ARINC 429 Bus Routing
  • Active ARINC 429 Bus Switching
  • ARINC 429 Bus Combining
  • ARINC 429 Label Filtering or Passing
  • ARINC 429 Bit Mapping
  • ARINC 429 Configurable Boolean Calculations and computations to derive outputs
  • ARINC 429 SDI and SSM Changes
  • ARINC 429 Label Changes
  • ARINC 429 Data Monitoring and Driving Data outputs or Annunciations
  • Integrating non-compatible systems
  • Mapping Discrete Inputs to ARINC 429 Conversion and vice versa.
  • Function Calculations such as
  • ADS-B DO-260B Monitoring
  • True North Calculations
  • Bus Combining and Switching
  • Label Filtering and Passing (Change up to 100 Labels)
  • Intregration Solutions using ARINC 429 Busses and Discretes
  • Trend and complex monitoring algorithms
  • Boolean Logic Calculations
  • ARINC 575 to ARINC 429 Conversions
  • Integration of Complexed systems such FMS and Electronic Display systems
  • Autopilot Interface
  • Flight Data Concentration
  • Combinations of all the above on all Channels and Discrete Inputs



SPECIFICATIONS

POWER: +28 VDC Nominal  (Range +32Vdc  to +10Vdc)                0.7 A nominal INPUTS: Four (4) Channels of ARINC 429 (HS/LS), Eight (8) Discrete Inputs (GND/OPEN)
OUTPUTS: Four (4) Channels of ARINC 429 (HS/LS), Sixteen (16) Discrete Outputs (GND/OPEN) Built-In-Test : (Self-monitoring) 98% Detection BUILT-in-TEST with a Valid Discrete Output
CONFIGURATION PLUG: Unique Configuration Part Number (CPN) is generated for each STC/TC to protect the STC/TC usage rights, Configurations can be accomplished in a few days to few weeks depending on complexity, Configuration changes can be made in the field during engineering testing in minutes using our 626 Configuration Plug Cable SAFETY: DO-178C DAL B, DO-254 DAL B, DO-160G Non-pressurized, Non-Temp controlled, Very High Levels of EMI/EMC tolerance



Part Number: Description:
ba-440 Router/Filter, (RFS)




BA-440
- Router/Filter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
