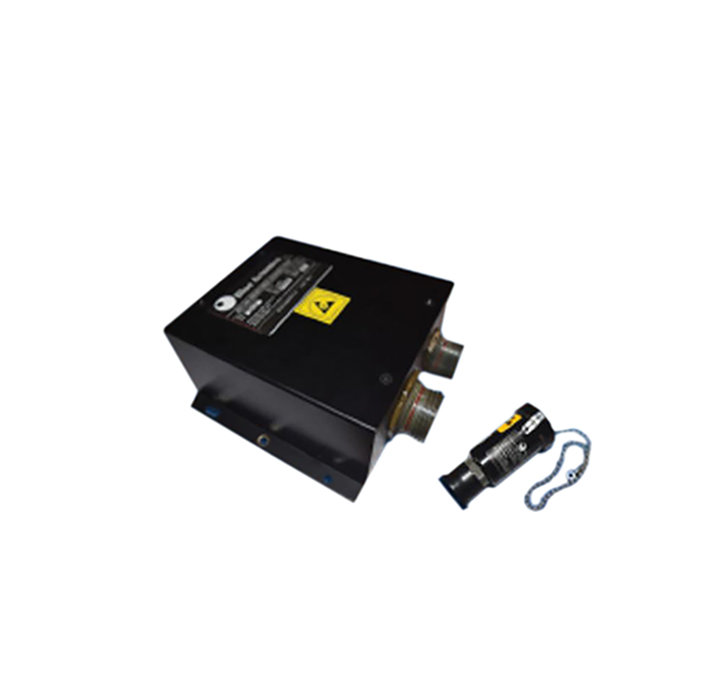

Picture of product AAU

Part #: BA-540

Model: AAU

OEM:

Blue Avionics

Desc:

Adaptable Avionics Unit

Part Number :
Logo (2).jpg







FEATURES

  • A-540 AAU is designed to perform hundreds of functions with only configuration changes without impacting the software or hardware
  • ARINC 429 Bus Routing
  • Active ARINC 429 Bus Switching
  • ARINC 429 Bus Combining
  • ARINC 429 Label Filtering or Passing
  • ARINC 429 Bit Mapping
  • INCARINC 429 Configurable Data Calculations and computations to derive outputs
  • Discrete to ARINC 429 Conversion and vice versaCalculation Functions such asTrue North Calculations
  • Scale changes on approach
  • IAS and Mach Speed Caution and Warning
  • Fuel Management and Fuel transfer
  • CG Calculations
  • Trend and complex monitoring algorithms
  • Deviation and Nav Offsets
  • Much more
  • ARINC 575 to ARINC 429 Conversions
  • Integration of Complexed systems such FMS and Electronic Display systems
  • Autopilot Interface
  • Flight Data Concentration



SPECIFICATIONS

POWER: +28 VDC Nominal  (Range +32Vdc  to +10Vdc)                0.7 A nominal INPUTS: Four (4) Channels of ARINC 429 (HS/LS), Eight (8) Discrete Inputs (GND/OPEN)
OUTPUTS: Four (4) Channels of ARINC 429 (HS/LS), Sixteen (16) Discrete Outputs (GND/OPEN) Built-In-Test : (Self-monitoring) 98% Detection BUILT-in-TEST with a Valid Discrete Output, Certified to Software Load in the Field
CONFIGURATION PLUG: Unique Configuration Part Number (CPN) is generated for each STC/TC to protect the STC/TC usage rights, Configurations can be accomplished in a few days to few weeks depending on complexity, Configuration changes can be made in the field during engineering testing in minutes using our 626 Configuration Plug Cable SAFETY: DO-178C DAL B, DO-254 DAL B, DO-160G Non-pressurized, Non-Temp controlled, Very High Levels of EMI/EMC tolerance



Part Number: Description:
ba-540 Adaptable Avionics Unit




BA-540
- Adaptable Avionics Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
