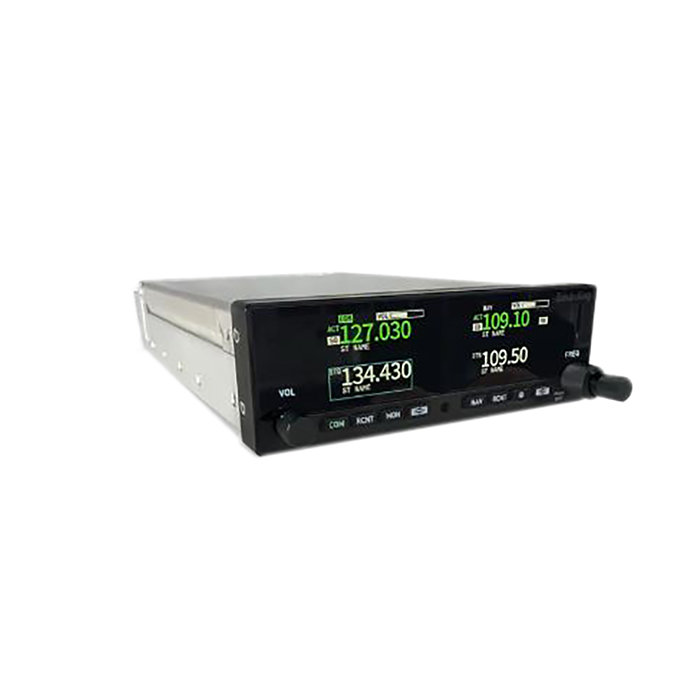

Picture of product KX-200

Part #: 89000002-120

Model: KX-200

OEM:

BendixKing

Desc:

Navigation/Communication Radio

Part Number :

KX-200 OVERVIEW

The KX-200 has been designed to directly replace existing legacy KX-155 and KX-165 radios. For 14 and 28 volt applications, a separate adapter is required for each of these installations. Since it is a direct replacement for the KX-155 and KX-165, it is intended to utilize the same preexisting rack and connectors from the original KX-155/165 installation. Therefore, it is recommended that a visual inspection of the rack backplate and existing connectors be done to ensure proper connection with the new KX-200. Cleaning and reseating of the connector pins might be necessary as well.

As of the August 2023 announcement of the KX-200, it is only intended to be a direct replacement for the KX-155 and KX-165 radios. That is, not the KX-155A or KX-165A. Replacement for the KX-155/165A radios will be announced at a later date.

Since many aircraft now have more modern avionics displays and indicators from manufacturers such as Garmin, it should be noted that, for the most part, the KX-200 is an analog radio. Therefore, it, most likely, does not have any advanced interface capabilities to products such as the Garmin G5, GI-275, G3X or G500/600.

For all intents and purposes, the KX-200 may be a very good solution for those aircraft owners who look to alleviate some of the issues with their legacy KX-155/165 radios (ex. gas discharge displays) without a completely new installation of a nav/comm radio. Furthermore, there are very few manufacturers remaining who produce a dedicated, federated “nav/comm” radio so options are limited. The KX-200 is intended to be a true, “slide-in”, direct replacement without the need for any physical, panel or wiring changes. For additional information or a comparison of the KX-200 to other available nav/comm radios, please Contact Us at any time.



FEATURES

  • High-resolution color LCD
  • 50-channel memory presets
  • 25kh or 8.33kh channel spacing
  • Full featured digital NAV/COM with VOR, LOC, ILS, and glide slope
  • Compatible with existing indicators and installed equipment
  • Compatible with 14- and 28-volt systems
  • 28 Volt Adapter PN 89000002-121 or 14 Volt Adapter PN 89000002-122 must be purchased with each KX-200
  • Possibility to expand capabilities with future Honeywell AnthemTM cockpit connectivity
  • Two-year warranty





SPECIFICATIONS

Supply Voltage: 14 and 28 volt system     temperature: (Operating)  -20…+55 °C
Control interface: COM: RS422 NAV: RS422  channel spacing: 8.33 / 25 kHz
Freq rANGE: 118.000- 136.991666 MHz     MODULATION: AM
NAV channels: 108.00 … 117.95 MHz NAV sensitivity: -93 dBm, -107 Dbm (typically)
Dimensions: HxWxD (install. Depth)   52.1 x 158.8 x 224 mm (2.1 x 6.3 x 8.8 inch) Number of channel memory: 50 + 10 Last
Channel labeling: Yes Sensitivity: ≤ -93 dBm (typically -101 dBm) for AM 30%, 1000 Hz
Weight: ≤ 1.5 kg Climax operation: Yes
Dual watch (SCAN): Yes Auxiliary power supply output: up 500 mA
VOR/LOC output: Composite signal for external VOR/LOC converter and indicator GS channels: 329.15…335.00 MHZ
Current consumption:   ≤ 750 mA @ 12V; RX RX stand-by mode, ≤ 400 mA @ 28 VDC; RX stand-by mode, ≤ 2.5 A @ 12 VDC; TX mode (m ≥ 70%, 1 kHz), ≤ 1.8 A @ 28 VDC; TX mode (m ≥ 70%, 1 kHz) Single / multicarrier distortions: ≤ 25% (typically ≤ 15%) for AM 85%
Audio frequency response: 350…2500 Hz @ 8.33 kHz channel spacing 350…3000 Hz (typically 300…3400 Hz) @ 25 kHz channel spacing Transmitting power: ≥ 6 W @ 14 VDC, ≥ 10 W @ 28 VDC
Modulation capability: ≥ 70%, ≤ 95% Modulated audio distortion: ≤ 15%
DME channeling: Serial DME channeling provided for KN 62A, KN 63, KN 64 NAV audio output power: ≥ 100 mW @ 500 Ω, ≥ 100 mW @ 600 Ω
IDENT notch filter: ON/OFF ILS energize output: Open collector to ground discrete output
Part Number: Description:
89000002-120 Navigation/Communication Radio
89000002-121 28 Volt Adapter
89000002-122 14 Volt Adapter






89000002-120
- Nav/Comm Radio
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

As of 2023, the outputs for the KX-200 are analog. Therefore, it will inteface legacy CDIs or HSIs such as the BendixKing KI-209.  For its initial release, the KX-200 is not intended to be interfaced with modern digital indicators and displays that require a digital input.

As of August 2023, the new KX-200 is the only radio intended as a direct, slide-in replacement for the legacy KX-155/165 radios.  At one time, TKM Avionics intended to produce and market their MX-155 radio. However, this Arizona based company, went out of business several years ago.

Garmin offers their GNC-255 line of nav/comms.  However, it is a new installation as it uses different rack & connectors and is different in size.

As of the August 2023 announcement of the KX-200, it is only intended to be a direct replacement for the KX-155 and KX-165 radios. Replacement for the KX-155/165A will be announced at a later date.

While the KX-200 is a direct replacement for the KX-155/165, an adapter is required for each 14 or 28 volt installation.

You should purchase one of the following adapters when you purchase the KX-200 radio:

PN 89000002-122 for 14 volt or 89000002-121 for 28 volt
