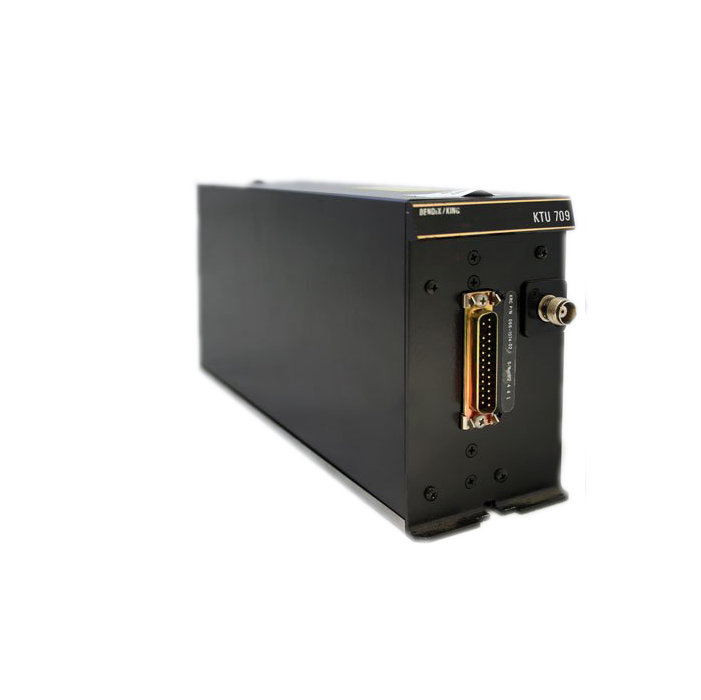

Picture of product KTU-709

Part #: 066-1074-01

Model: KTU-709

NSN:

5826-01-248-2114

OEM:

BendixKing

Desc:

TACAN Receiver

Part Number :


KTU-709



FEATURES

  • TACAN unit used in conjunction with related distance and navigation indicators to provide distance, bearing, groundspeed and time-to-station information with respect to a selected TACAN or VORTAC ground station
  • Remote mounted 252 channel unit
  • Solid state transmitter and large scale integrated circuit (LSI) technology
  • 18-33 VDC power input
  • All tuning done electronically with single crystal digital frequency synthesizer
  • Channel selection is controlled by serial digital data stream fed from the KDI-572 or KDI-574 DME indicators
  • Generates synthesized VOR composite output when a bearing signal has been acquired
  • TACAN VOR composite signal may interface with converter-driven VOR instruments or area nav system such as the KNS-81 (-30/34)
  • Incorporates self test mode used to verify range and bearing computation
  • May be tuned by KFS-579A NAV/TACAN control or various RNAV receivers, nav controls
  • Model available (-01) that may output TACAN VOR composite format only when designated tuning source for TACAN is selected and when frequency HOLD operation is not attempted (see table below)



SPECIFICATIONS

Size: 3.0"W x 5.25"H x 11.80"L Weight: 5.8 lbs.
Transmitter Frequency Range: 1025 to 1150 MHz Receiver Frequency Range: 962 to 1213 MHz
TSO Compliance: C66a, DO151A Cat A2E1/A/MNO/XXXXXXZAAAA Altitude To 70,000 feet
Power Output: 250 watts PEP min. Operating Temperature: -55C to 70C
Decoder Sensitivity: -90dBm AGC Range: Lock-on to 0dBm
Range: 0.0-389 nautical miles for DME channel selection Accuracy: +-0.1 nmi from 0-99.9 nmi +-1.0 nmi from 100-389 nmi
Acquisition Time: 2.0 seconds (typical) Memory Time: 10 seconds
Velocity: 0-999 knots Tuning: Accepts serial tuning data from KDI/572 master indicators
Part Number: Description:
066-1074-00 Original production unit without Tune Source Select or Frequency Agility
066-1074-01 With Tune Source Select, Without Frequency Agility
066-1074-02 With Tune Source Select, With Frequency Agility


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET




Serial # 1541
Condition OH
Mods 1-2
Tag Date 07/15/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 2027
Condition SV
Mods 1-3
Tag Date 05/22/24
Shop Avionics Specialist Inc.
Warranty 6 Months
066-1074-01
- TACAN Receiver

NSN: 5826-01-248-2114

Price Condition Status
$13,775.00 OH OUTRIGHT 2 IN STOCK
REQUEST OH EXCHANGE 2 IN STOCK
066-1074-02
- TACAN Receiver

NSN: 5895-01-449-9133

Price Condition Status
REQUEST OH OUTRIGHT 1 IN STOCK
REQUEST SV EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
