Part #: 89000007-002001

Model: KT-74

OEM:

BendixKing

Desc:

Mode S/ADS-B Transponder

Part Number :



KT-74

FEATURES

  • Meets ADS-B Out requirements (when connected to a compatible GPS source)
  • Slide-in replacement for the popular BendixKing KT 76A/C and KT 78A transponders (See KT-74 FAQ)
  • Simple and economical upgrade path for ADS-B from the KT-76A/C vintage transponders
  • Push button operation
  • Low power consumption
  • Stopwatch and timer
  • Altitude monitor
  • Built-in altitude repeater instead of a second altitude encoder
  • TIS-A Traffic output
  • FAA TSO C166b certified
  • CNI5000 Citation Jet version available - see Media
  • Part 23 and Part 27 Approved Model List (AML) - see Media



SPECIFICATIONS
Size: 6.30"W x 1.7"H x 10.7"L Weight: 2.98 lbs.
TSO: C112D, C166B and ETSO C112C, C166B Temperature: -20 to +70C
typical current consumption (at 14V): Idle: 0.22 A, Active: 0.45 A nominal transmitter power: 240 W at connector
Type: Class 1 Mode S Level 2 els Voltage: 11-33 V DC
Compliance: DO-160G, DO-181E, DO-260B Class B1S, DO-178B Level B, DO-254 Level C Cooling: No fan required



Part Number: Description:
89000007-000001 Unit only (Trig PN: 01157-00-01)
89000007-002001 Includes Install Kit (Trig PN: 01158-00-01)
89000007-000001 Unit only (Trig PN: 01157-00-01)
89000007-002002 Citation Jet CNI-5000 Version



89000007-000001
- Mode S/ADS-B Transponder (Unit Only)
Price Condition Status
$2,250.00 SV OUTRIGHT IN WORK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
89000007-000002
- 01157-00-02 ADS-B Transponder (Gray, CNI-5000)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
89000007-002001
- Mode S/ADS-B Transponder
Price Condition Status
$3,625.00 NEW OUTRIGHT REQUEST LEAD TIME
89000007-002002
- Mode S/ADS-B Transponder Kit (CNI-5000 Version)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The KLN-94 is not a WAAS GPS, nor is it upgradeable to one. We recommend the KT-74, but if you decide to upgrade to a GPS400W or GNS430W, then you would want to go with a GTX-330.

Honeywell has obtained STC# SA00765DE for the installation of the KT-74 for ADS-B Out functionality in a multitude of aircraft.  There is an Approved Model List that accompanies the STC.  Please see Resources for copies of the STC.

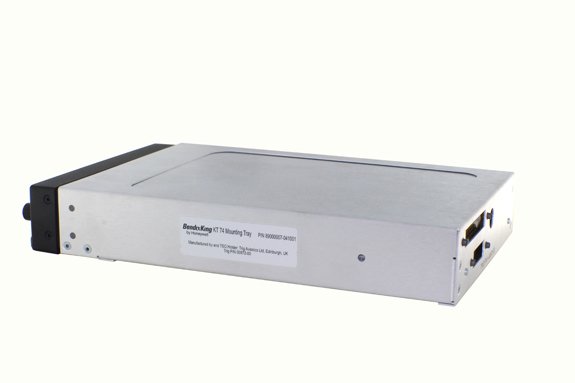

The KT-74 is a direct replacement only if ADS-B is not being utilized. The KT-74 is designed to fit into an existing KT-76A/C & KT-78A tray. However to utilize the ADS-B feature of the KT-74, a secondary connector and new tray will need to be installed.

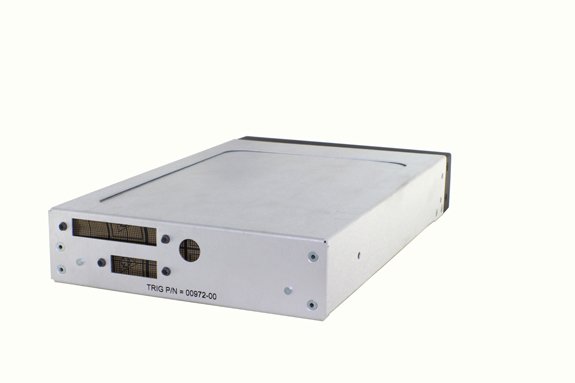

The KT-74 has two Molex edge connectors. The primary connector can use the same contact positions and are electrically compatible with the KT-76A & KT-78A (if properly wired). A secondary connector would need to be installed to utilize ADS-B functions, resulting in a necessary second hole in the rack to accommodate the connector.

Click on a headline below to see more:

Honeywell receives Brazilian ANAC Validation for the KT-74 ADS-B transponder to be accpeted for Brazlian registered aircraft.
