Part #: 066-1078-04

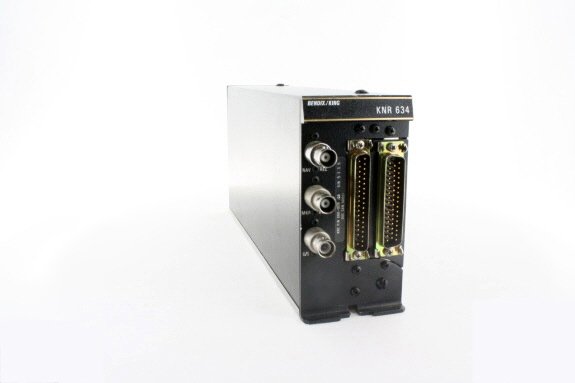

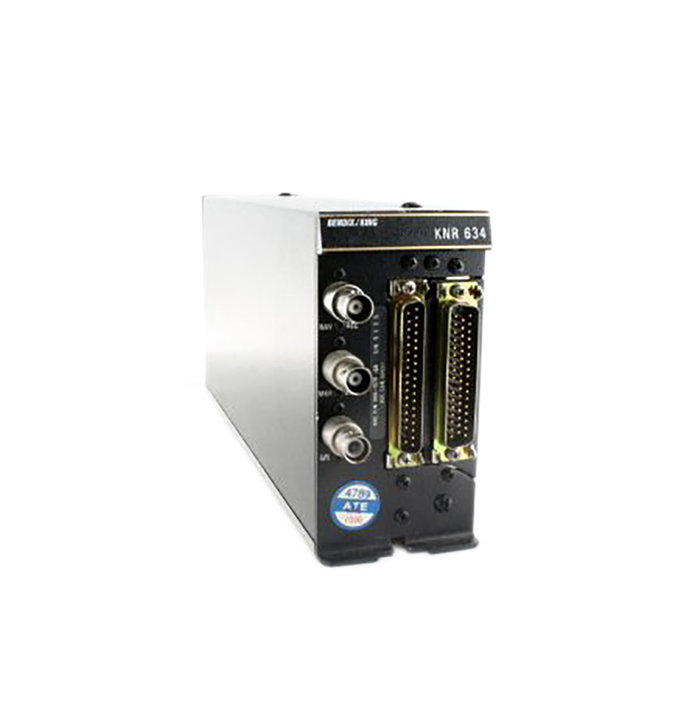

Model: KNR-634

NSN:

5820-01-667-0939

OEM:

BendixKing

Desc:

Nav Receiver

Part Number :


KNR-634



FEATURES

  • 200-channel navigation receiver
  • 40-channel glidelsope receiver
  • Marker beacon receiver
  • Internal VOR/LOC converter
  • XYZ RMI option available will provide 3-wire synchro RMI information in addition to Sine/Cosine OBI information provided by all KNR-634 versions (see table below)
  • Models available with different combinations of above features (see table below)
  • Used with KFS-564 and KFS-564A flip-flop frequency selector which displays active and standby frequencies in gas discharge numerics.
  • Can be used with nav indicators such as KNI-582, KPI-552, KPI-553A, KI-206
  • Can be interfaced with any 400 Hz, Electrically Zeroed, ARINC CDI or HSI nav display
  • Serial outputs provided for automatic channeling of King DME systems
  • Superflags for both NAV and Glideslope receivers are compatible with most popular Flight Director / Autopilot systems
  • Similar to KFS-564A but DOES NOT accepts ARINC 429 channeling and provides ARINC 429 outputs for use with EFS 10 and ARINC 429 based systems
  • TSO'd
  • 28VDC



SPECIFICATIONS

Size: 2.5"W x 5.0"H x 11.1"L Weight: 4.0 to 5.4 lb. (depending on model)
NAV Frequency Range: 108.00 MHz to 117.95 MHz in 50 kHz increments Temperature Range: -55C to +70C
TSO Compliance: NAV C40a, DO-153A / LOC C36c, Class D, Cat. II DO-131A / GS C34c, Class D, Cat. II DO-132A / MKR C35d, Category A DO-143 Applicable Documents: RTCA Document DO-160A
Design: All solid-state, electronically tuned by single-crystal digital frequency synthesizer Altitude: To 55,000 feet
Part Number: Description:
066-1078-00 NAV Receiver, Converter, Marker Receiver, Glideslope Receiver, XYZ RMI
066-1078-01 NAV Receiver, Converter, Glideslope Receiver, XYZ RMI
066-1078-02 NAV Receiver, Converter, Marker Receiver, XYZ RMI
066-1078-03 NAV Receiver, Converter, XYZ RMI
066-1078-04 NAV Receiver, Converter, Marker Receiver, Glideslope Receiver
066-1078-05 NAV Receiver, Converter, Glideslope Receiver
066-1078-06 NAV Receiver, Converter, Marker Receiver
066-1078-07 NAV Receiver, Converter
066-1078-08 NAV Receiver only
NOTE: Same base part number used for all KNR-634 and KNR-634A models



Serial # 4467
Condition OH
Mods 1-5,7,8
Tag Date 08/29/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-1078-04
- Nav Receiver

NSN: 5820-01-667-0939

Price Condition Status
$2,250.00 OH OUTRIGHT 1 IN STOCK
REQUEST OH EXCHANGE 1 IN STOCK
066-1078-00
- Nav Receiver

NSN: 5895-01-276-4234

Price Condition Status
$2,250.00 SV OUTRIGHT REQUEST LEAD TIME
$1,295.00 SV EXCHANGE REQUEST LEAD TIME
066-1078-05
- Nav Receiver
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
