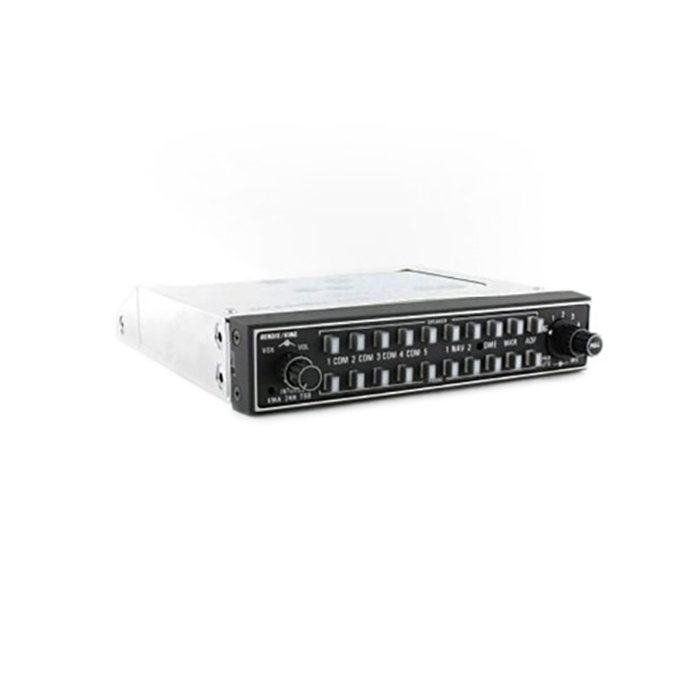

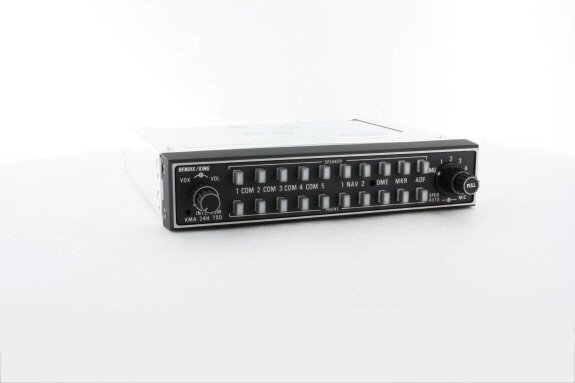

Part #: 066-1055-70

Model: KMA-24H

NSN:

5821-01-432-7181

OEM:

BendixKing

Desc:

Audio Panel

Part Number :
Bendix King logo

KMA-24H -50/54
(scroll down or click here to view -70/71 info)
-50/54 FEATURES
  • Compact, fully solid-state unit containing pushbutton audio selector panel with seperate speaker and headphone isoaltion amplifiers
  • Styled to match with the other King Silver Crown units but can be integrated into any 500 ohm output audio system
  • Provides interphone communication including five microphone audio inputs for up to five intercom stations to meet crew member helicopter and fixed wing needs
  • Designed for use in both single and dual audio panel installations
  • Can handle as many three transceivers and six receivers
  • Models with different features and combinations of AUTO, 2 COMMs, 2 NAVs, DME, MKR, ADF, HF, TEL selections (see table below for selections)
  • Night vision goggle version available (see table below)
  • Has two unswitched inputs for use as altimeter warning and telephone ringer
  • Has speaker outputs for ramp hailer and passenger address or intercom
  • PA mute provided to mute passenger background music systems when a microphone is keyed
  • Similar to KMA-24 but DOES NOT include marker beacon presentation and DOES include intercom functions/controls
  • 14V or 28VDC operation
  • TSO'd
-50/54 SPECIFICATIONS
Size: 6.25"W x 1.3"H x 6.81"L Weight: 1.7 lbs.
TSO Compliance: TSI C50b, Class I per RTCA DO-170, Env. Cat. /A1D1/A/PKS/XXXXXXZBAAA Duty Cycle: Continuous
Applicable Documents: RTCA DO-160, DO-160 Temperature Range: -20 to +55C
Design: All solid state Input Impedance: 380 ohms for ICS inputs, 500 ohms for all audio inputs
Speaker Muting: At least 55 dB when the MIC is keyed Input Isolation (iso amp): 60dB between inputs
Distortion: Less than 5% at rated output Frequency Response: Within 3dB from 350Hz to 6000Hz
Part Number Audio Panel Description:
066-1055-50 Selections for: HF/COM1/COM2/NAV1/NAV2/DME/MKR/ADF1/ADF2
066-1055-51 Selections for: TEL/COM1/COM2/NAV1/NAV2/DME/MKR/ADF1/ADF2
066-1055-52 Selections for: HF/COM1/COM2/NAV1/NAV2/DME/MKR/ADF/AUTO
066-1055-53 Selections for: TEL/COM1/COM2/NAV1/NAV2/DME/MKR/ADF/AUTO
066-1055-54 Same as -52 unit but with night vision goggle capability





KMA-24H -70/71
-70/71 FEATURES
  • Compact, fully solid-state unit containing pushbutton audio selector panel, five station intercom, speaker and headphone isolation amplifiers
  • Front panel controls include an interphone volume control, audio selector buttons, speaker auto switch, interphone VOX (Voice Operated Intercom) control
  • Styled to match with the other King Silver Crown units but can be integrated into any 500 ohm output audio system
  • Provide ability for pilot and co-pilot to isolate out of the intercom system through seperate independent amplifiers
  • Up to 5 transceivers and 5 receivers can be controlled in -71 version
  • Up to 4 transceivers and 6 receivers can be controlled in -70 version
  • Has two unswitched inputs for use as altimeter warning and telephone ringer
  • Has speaker outputs for ramp hailer and passenger address or intercom
  • PA mute provided to mute passenger background music systems when a microphone is keyed
  • User can select VOX, keyed or hot mic intercom through adjustments of the VOX control on the front panel
  • Contains summing amplifier to combine received audio with the pilots microphone for installations where a voice recorder is necessary
  • Similar to KMA-24H -50/54 but DOES include Voice Operated Intercom, seperate alternate action capability and keyed activation of up to 5 stations
  • 14V or 28VDC operation
  • TSO'd
-70/71 SPECIFICATIONS
Size: 6.31"W x 1.3"H x 6.49"L Weight: 1.7 lbs.
TSO Compliance: TSI C50c, Class I per RTCA DO-170, Env. Cat. /A2D1/ A/ PKS/ XXXXXXZB/ AB/ BZ/ A Duty Cycle: Continuous
Applicable Documents: RTCA DO-160A, DO-170 Temperature Range: -20 to +70C
Design: All solid state Input Impedance: 320 ohms for ICS inputs, 500 ohms for all audio inputs
Speaker Muting: At least 55 dB when the MIC is keyed Input Isolation (iso amp): 60dB between inputs
Isolater Muting: Pilot -55 dB, Co-pilot -55 dBd
Distortion: Less than 5% at rated output Frequency Response: Within 3dB from 350Hz to 6000Hz
Part Number Audio Panel Description (Push Button Selections)
066-1055-70 COM1/COM2/COM3/COM4/NAV1/NAV2/DME/MKR/ADF1/ADF2
066-1055-71 COM1/COM2/COM3/COM4/COM5/NAV1/NAV2/DME/MKR/ADF



Serial # 169569
Condition OH
Mods 3,5-7
Tag Date 11/08/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 169581
Condition OH
Mods 3,5-7
Tag Date 11/05/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 164941
Condition SV
Mods 3,5-7
Tag Date 10/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-1055-71
- Audio Panel w/ Intercom

NSN: 5821-01-326-6139

Price Condition Status
$1,550.00 OH OUTRIGHT 4 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-1055-70
- Audio Panel w/ Intercom

NSN: 5821-01-432-7181

Price Condition Status
$1,950.00 OH OUTRIGHT 3 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-1055-50
- Audio Panel
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1055-51
- Audio Panel
Price Condition Status
RFQ RFQ RFQ
066-1055-52
- Audio Panel w/ Intercom

NSN: 5821-01-381-8894

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1055-53
- Audio Panel

NSN: 5895-01-393-5442

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
066-1055-54
- Audio Panel
Price Condition Status
RFQ RFQ RFQ
066-1055-65
- Audio Panel
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
