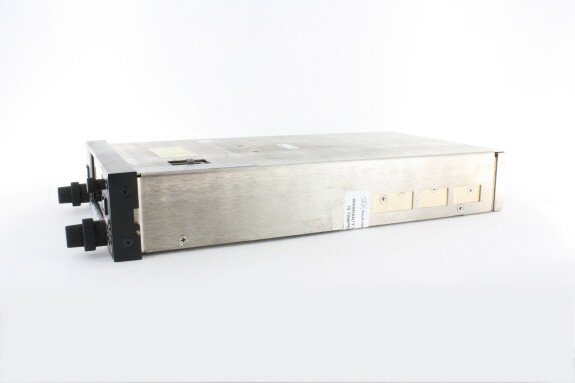

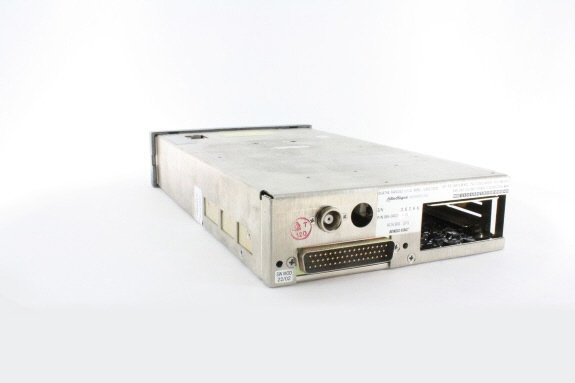

Part #: 066-04031-1122

Model: KLN-90B

NSN:

5826-01-536-2810

OEM:

BendixKing

Desc:

IFR GPS Receiver
Part Number :
Bendix Logo

KLN-90B



FEATURES

  • Panel-mount IFR GPS capable of performing non-precision GPS approaches
  • Easy-to-read CRT map display
  • Comprehensive Jeppesen database with SID and STAR waypoints and approaches
  • Pilot-friendly controls
  • Eight-channel parallel GPS receiver
  • Meets FAA C129 A1 specifications
  • Built-in resolver interface allows system to be linked directly to aircraft's HSI or CDI or coupled to an autopilot
  • Resistant to COMM radio interference
  • Straightforward control panel consisting of two sets of concentric knobs
  • Screen can be split enabling two pages of information to be open at once
  • Available into two database options - Americas and International - that can be easily updated by plug-in cartridge located on back of unit (IBM compatible computer updating also available)
  • Can store as many as 26 separate flight plans with up to 30 waypoints each
  • Includes flight calculator that can handle useful computations such as true airspeed, pressure altitude, density altitude, actual winds aloft, and much more
  • Models available with 5,14, or 28 volt lighting (see table below)
  • Models available with gray or black bezel (see table below)
  • Upgrading available to improve GPS performance for B-RNAV compliance for Europe
  • KLN-90 and KLN-90A upgrade to KLN-90B no longer available from factory
  • Certain parts controlled by the US DOS or DOC, Export License Required - Contact SEA for more information

Additional Information: Click Here for Pilot's Guide



SPECIFICATIONS

Dimensions: 6.312"W x 2.00"H x 12.55"L Weight: 6.30 lbs.
Temperature Range: -40 to +70C TSO: C129A1
Altitude: Up to 50,000 ft Power Inputs: 11 to 33 VDC at 2.5A max
RS-232 Input: The RS-232 input is designed to communicate with devices such as air data and fuel flow sensors via RS-232 format RS-232 Output: The RS-232 output is designed to interface with certain ARNAV Elts and certain moving map displays, stormscopes, and Shadin fuel flow systems
Part Number: Description:
066-04031-1121 14/28V Lamps, Black bezel
066-04031-1122 same as -1121 but with B-RNAV upgrade
066-04031-1221 5V Lamps, Black bezel
066-04031-1222 5V Lamps, Black bezel, with BRNAV
066-04031-1321 14/28V Lamps, Gray bezel
066-04031-1322 14/28V Lamps, Gray bezel, with BRNAV
066-04031-1421 5V Lamps, Gray bezel
066-04031-1422 5V Lamps, Gray bezel, with BRNAV
066-04031-1622 With Night Vision Goggle Compatibility. Export License Required
066-04031-2121 14/28V Lamps, Black bezel, upgraded to KLN-90B from KLN-90/A status
066-04031-2122 14/28V Lamps, Black bezel, upgraded to KLN-90B from KLN-90/A status, with BRNAV
066-04031-2221 5V Lamps, Black bezel, upgraded to KLN-90B from KLN-90/A status
066-04031-2222 5V Lamps, Black bezel, upgraded to KLN-90B from KLN-90/A status, with BRNAV
066-04031-2321 14/28V Lamps, Gray bezel, upgraded to KLN-90B from KLN-90/A status
066-04031-2322 14/28V Lamps, Gray bezel, upgraded to KLN-90B from KLN-90/A status, with BRNAV
066-04031-2421 5V Lamps, Gray bezel, upgraded to KLN-90B from KLN-90/A status
066-04031-2422 5V Lamps, Gray bezel, upgraded to KLN-90B from KLN-90/A status, with BRNAV



Serial # 27547
Condition OH
Mods 1
Tag Date 11/11/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-04031-1121
- IFR GPS Receiver

NSN: 5826-01-417-9563

Price Condition Status
$3,950.00 SV OUTRIGHT 2 IN STOCK
066-04031-1122
- IFR GPS Receiver

NSN: 5826-01-536-2810

Price Condition Status
$3,950.00 SV OUTRIGHT 1 IN STOCK
066-04031-1221
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-1222
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-1321
- GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-1322
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-1421
- GPS Receiver
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-1422
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-1521
- IFR GPS Receiver (NVG)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-1522
- IFR GPS Receiver (NVG)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-1622
- IFR GPS Receiver (NVG)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-2121
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-2122
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-2221
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-2222
- GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-04031-2321
- GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-2322
- GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-2421
- GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-04031-2422
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The KI-209A does not have an OBS resolver inside the indicator to provide selected course information to the GPS. Instead, it has a Sine/Cosine potentiometer. To see the Sine/Cosine potentiometer and properly calibrate to it, it requires more than the +/- 10 degrees of adjustment that a KLN-90B has. The KLN-89B and KLN-900 has +/- 180 degrees of adjustment. Therefore, the KI-208A and KI-209A are limited to the KLN 89B and KLN 900.
No. The Bendix/King KLN-94 Color IFR GPS is not a slide-in direct replacement for the KLN-90B IFR GPS. The mounting rack and connector are different. They do use the same KA-92 GPS antenna. The KLN-94 does directly replace the KLN-89B IFR GPS.
The KI-209A does not have an OBS resolver inside the indicator to provide selected course information to the GPS. Instead, it has a Sine/Cosine potentiometer. To see the Sine/Cosine potentiometer and properly calibrate to it, it requires more than the +/- 10 degrees of adjustment that a KLN-90B has. The KLN-89B and KLN-900 has +/- 180 degrees of adjustment. Therefore, the KI-208A and KI-209A are limited to the KLN 89B and KLN 900.
Yes, the KLN-90B is compatible with GPSS as long as it has updated to the most current software level?
Click here to view a document containing the different database coverage areas.

In most cases, Honeywell offers two options for GPS database updates: - Card/cartridge replacement - Computer download

Users can order a subscription and have a database card/cartridge delivered to a given address every 28 days. If an update is not required as frequently, users can simply order a database card or cartridge direct from Honeywell Wingman Services. Click Hereto go to the Wingman website.

The GPS database Internet download option is available for most receivers. The update is downloaded to a laptop computer. The laptop is then interfaced to the GPS inside the aircraft via the PC interface kit (P/N 050-03213-0000). Certain GPS receiver software as well as laptop performance requirements must be met in order to properly utilize Internet downloading and the computer interface. Please view the following document for complete instructions on computer updating. GPS_download.pdf

Please Note: The KLN-35A and KLX-135A GPS units can only be updated via computer as they do not have externally accessible databases.

A normal Annunciator Control Unit (ACU) includes a control and relay assembly. The control portion includes lighted annunciations (words) as well as a switch assembly to activate a relay. The relay assembly provides the electrical transfer of information between a conventional nav (VOR/ILS/GS) and GPS to one Course Deviation Indicator (CDI).

The ACU units can be complete with control and relay built into one assembly or they can be separated depending on the part number. Some GPS systems and CDIs include internal relays. Therefore, only a control with switch is required. In this case, you would only purchase the Control Head. Some installations use different custom sizes and styles of annunciator switches. Therefore, in this case, only a remote relay is purchased without a control assembly.


In addition to variations in switches, relays, and sizes, ACUs are engineered to be compatible with specific GPS systems by different manufacturers. Variations in power input and bezel orientation are available as well.
For IFR GPS approach certification, GPS status annunciations are required to be in the pilot's field of view. These annunciations (or lights) indicate active switches such as the NAV/GPS and OBS (if applicable) modes. Other annunciations or alerts might include the following:

TERM - light that will signal pilot when operating within 30 miles of departure or arrival airport (i.e. Terminal area)
APR - light that signals pilot when the GPS is engaged in Approach mode
MSG - light that signals pilot that the GPS has generated a Message alert that should be viewed on the GPS
WPT - light that signals pilot that the GPS has generated a Waypoint alert that should be viewed on the GPS
INTG - light that will signal pilot when the GPS receiver detects a position error or is unable to calculate the Integrity of the position

Some annunciator units and annunciator control units or ACUs have a variety a these switches and annunciators depending on the GPS system to be interfaced with or the aircraft installation. However, there are certain annunciations such as MSG and WPT that are standard for all annunciators required.

No. Although they are similar in appearance and function, the KLN-90, KLN-90A, and KLN-90B are not direct replacements for the KLN-88. The KLN-90 series receivers use a different mounting rack, antenna, and larger connector.

While they are not direct replacements, the KLN-90 series GPS systems are the ideal replacement system for the KLN-88. Both the KLN-88 and KLN-90 series units operate through a unique knob functionality.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

As of October 2010, Honeywell does not have any plans to incorporate WAAS into these units. No further details are available.

However, Honeywell is manufacturing WAAS sensors for their APEX GPS series. This series DOES NOT include any of the following: KLN-89B, KLN-90B, KLN-94, KLN-900 or GNS-XLS.

See this PDF document for a detailed listing of currently available IFR GPS systems and a brief comparison.

Yes, this is a total "plug and play" upgrade. The KLN-90B uses the same rack and has the same connector pin-outs as the KLN-90A. The database cartridge style is also the same. The KLN-90B has several upgraded features including certified IFR approach capability, digital OBS and an internal back-up battery pack for continuous operation in the event of aircraft power spikes.
As per the Instructions For Continued Airworthiness, there are no periodic service requirements for the KLN-90B. This unit is manufactured to allow "on condition maintenance". The unit monitors the internal battery and displays a message if the battery is in need of replacement. The typical life of the battery is about 5 years but can vary. Southeast Aerospace evaluates each unit and replaces the battery as needed during maintenance. Not every unit serviced needs a battery replacement at time of service.
