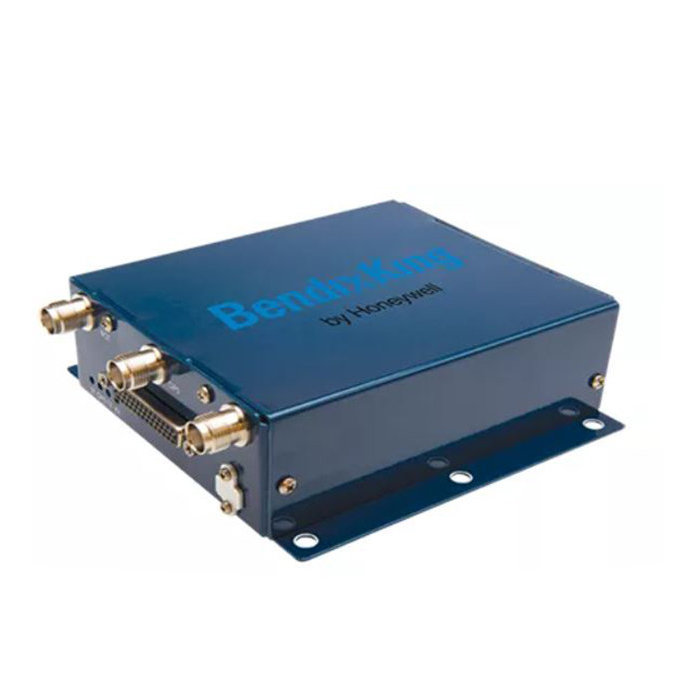

Picture of product KGX-130

Part #:

Model: KGX-130

OEM:

BendixKing

Desc:

ADS-B UAT Transceiver/No GPS

Part Number :

KGX-130



FEATURES

  • KGX 130 offers the same capability for aircraft that already have a compatible ADS-B compliant WAAS GPS solution
  • Designed to maximize inside-the-cockpit configuration flexibility and outside-the-cockpit situational awareness
  • KGX ADS-B wired and wireless solutions will integrate into your aircraft the way you want to fly it
  • ADS-B IN* and ADS-B OUT capability
  • KGX 150 includes a high integrity WAAS GPS
  • Can be paired with existing Mode A/C transponders
  • Receive TIS-B and FIS-B uplinks** for traffic, graphical weather and other data
  • Display on compatible panel MFD or iPad via Wi-Fi module [Option]
  • Compliant with FAA 2020 UAT mandate.
  • Compliance: DO–160G, DO-282B/TSO C154c, TSO-C157a, TSO-C195a, and TSO-145c (KGX 150 only)
  • Receiver only model also available for pairing with 1090-ES MHz Mode S Transponders
  • Software Application and Wi-Fi Wireless option required for displaying on your iPad
  • A TIS-B/FIS-B Traffic  and Weather Application is available on iTunes



SPECIFICATIONS

height: 1.7 in (43.18 mm) Weight: 0.86 lbs (364 g) [0.98 lbs (454 g) with internal GPS]
Temperature Range: -40°C to +70°C (operating), -55°C to +85°C (Storge) TSO: C154c (A1H/A1S), C157a (Class 1) Incomplete System C195a (Class C1), C145c (B1) - P/ (KGX 150 only)
Altitude: 50,000 ft. Power Requirements: 10-40 VDC
length: 5.5 in (139.7 mm) width: 5.0 in (127 mm)
TRANSCEIVER FREQUENCY: 978 MHz TRANSMITTER POWER: 40 Watts max at antenna



Part Number:  Description:
89000016-130 ADS-B UAT Transceiver/No GPS
89000016-131 ADS-B UAT Transceiver/No GPS




89000016-130
- ADS-B UAT Transceiver/No GPS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
89000016-131
- UAT Receiver (W/O GPS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
