Part #: 060-0015-00
Model: KG-102A
NSN: |
6615-01-217-6217 |
OEM: |
BendixKing |
Desc: |
Directional Gyro |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| $2,150.00 | OH EXCHANGE | 4 IN STOCK | VIEW | |
| $2,950.00 | OH OUTRIGHT | 4 IN STOCK | VIEW |
* Price & Availability valid as of 11/21/24 21:21:04 EST *
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
|
|
| REQUEST | OH EXCHANGE | REQUEST LEAD TIME |
|
* Price & Availability valid as of 11/21/24 21:21:04 EST *
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
|
|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
* Price & Availability valid as of 11/21/24 21:21:04 EST *

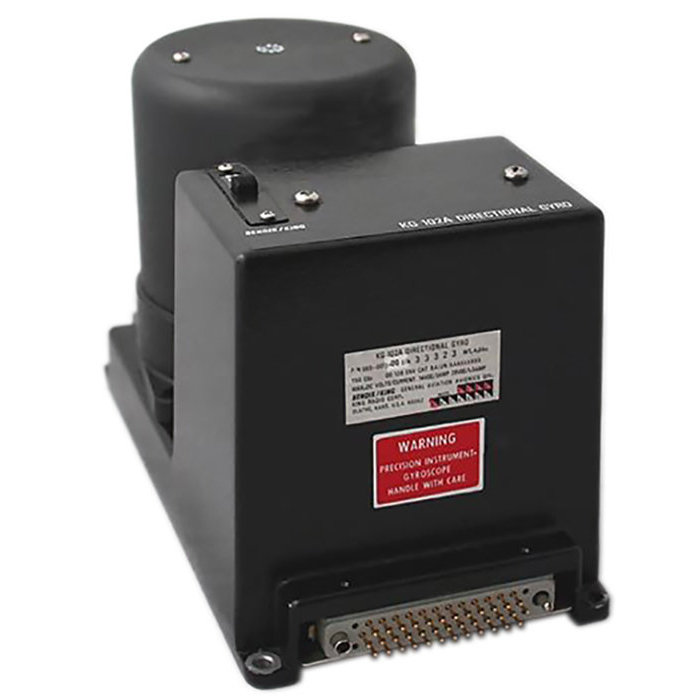

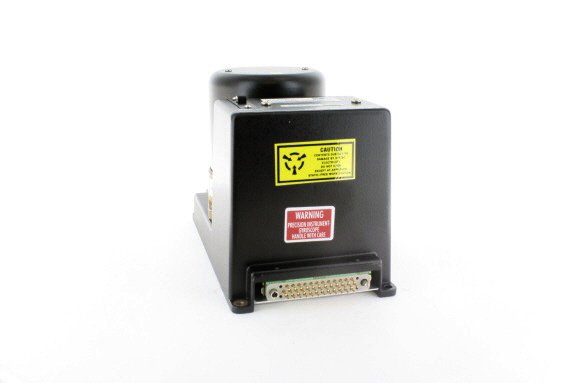

KG-102A
FEATURES
- Remote mounted Directional gyro for use in KCS-55A compass system
- Used in conjunction with KMT-112 Magnetic Azimuth Transmitter to provide a gyro-stabilized magnetic heading to KI-525A HSI
- Contains internal power supply which provides excitation voltages for KMT-112 and positive and negative DC voltages for KI-525A and KA-51B
- NOTE: Exchange price may vary if gyro can (P/N 060-0016-00) on KG-102A assembly core unit does not have Mod 1
- P/N: 060-0015-01/02 : RFI Filter = Radio Frequency Interference Filter
- P/N: 060-0015-02 : Tumble Detect Version - While in slaved gyro mode will automatically switch the system to fast slave mode when rates exceed approximately 25 degrees per second
SPECIFICATIONS
| Size: | 5.370" x 7.790" x 4.290" | Weight: | 4.3 lbs. |
| Mounting: | Shock mounted | Temperature: | -55C to +55C |
| Power Inputs: | 14VDC, 3.0 amperes or 28VDC, 1.5 amperes | Signal Inputs: | Slaving error control transformer from KI-525A |
| Power Outputs: | +-15 and +5VDC reference voltages for KI-525A and KA-51B; 7.2VRMS, 400Hz drive signal for primary excitation of KMT-112 and for use in KA-51B | Signal Outputs: | Drive signal for heading loop drive motor in KI-525A; slaving meter drive signal for KA-51B; pin a supplies a ground when compass system is valid |
| Part Number: | Description: |
|---|---|
| 060-0015-00 | Directional Gyro |
| 060-0015-01 | Directional Gyro with RFI filter |
| 060-0015-02 | Directional Gyro with RFI filter & tumble detection |
| Serial # | 21188 |
|---|---|
| Condition | OH |
| Mods | 1-5,7 |
| Tag Date | 11/18/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 42445 |
|---|---|
| Condition | OH |
| Mods | 1-8 |
| Tag Date | 11/15/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 41581 |
|---|---|
| Condition | OH |
| Mods | 1-8 |
| Tag Date | 11/12/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
| Serial # | 15099 |
|---|---|
| Condition | OH |
| Mods | 1-5,7 |
| Tag Date | 11/07/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
060-0015-00
- Directional Gyro
NSN: 6615-01-217-6217
| Price | Condition | Status |
|---|---|---|
| $2,150.00 | OH EXCHANGE | 4 IN STOCK |
| $2,950.00 | OH OUTRIGHT | 4 IN STOCK |
060-0015-01
- Directional Gyro
| Price | Condition | Status |
|---|---|---|
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
| REQUEST | OH EXCHANGE | REQUEST LEAD TIME |
060-0015-02
- Directional Gyro
| Price | Condition | Status |
|---|---|---|
| REQUEST | OH OUTRIGHT | REQUEST LEAD TIME |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
What is the difference between Honeywell (Bendix/King) part numbers with 9 digits vs. 12 digits?
None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
What is required to convert the older KCS-55 Compass System to the newer KCS-55A?
For the most part, the system wiring and connections are the same. The only wiring change needed pertains to the HSI unit. The KI-525 contained a Power flag instead of the standard Heading (HDG) flag as with the KI-525A. Therefore, pin P must be added to the existing KI-525 harness for the HDG flag in the KI-525A.
If the HSI is being upgraded to the -07 version of the KI-525A, then there is another pin that must be jumpered. Please see the KI-525A FAQ for more information on this matter.
The original KCS-55 system contained the KA-51A slaving accessory. This still can be utilized in the KCS-55A however it is recommended to upgrade to the KA-51B due to the age and lack of availability of service parts for the KA-51A. If the KA-51B is added, then a connector change would be required.
If the HSI is being upgraded to the -07 version of the KI-525A, then there is another pin that must be jumpered. Please see the KI-525A FAQ for more information on this matter.
The original KCS-55 system contained the KA-51A slaving accessory. This still can be utilized in the KCS-55A however it is recommended to upgrade to the KA-51B due to the age and lack of availability of service parts for the KA-51A. If the KA-51B is added, then a connector change would be required.
Why is Mod 1 important on the KG-102A gyro capsule?
Mod 1 for the KG-102A gyro capsule (P/N 060-0016-00) incorporates mechanical locking devices on the spin motor assembly and bearing end play adjustments. Quite simply, this modification should be incorporated when the gyro requires maintenance since service parts for gyros not containing this mod are no longer available.
The modification itself consists of installing a redesigned outer gimbals assembly and housing cap with a new bearing retainer and lock nut. The old style had glued in bearings.
The parts kit for installing this Mod is not cost prohibitive. However, due to the labor required to install the kit, the parts and labor cost exceed the gyro value in most cases.
Gyro capsules with serial numbers above 21390, KG-102A assemblies S/N 17698+, and KSG-105 assemblies S/N 3642+ should have had Mod 1 incorporated during original manufacturing. On such units, please note that Mod 1 is not marked on the dataplate(s).
In any case, to determine if a KG-102A gyro capsule has Mod 1 incorporated, inspect the gyro can mod chart either on top of the can (if available) or the gyro capsule dataplate underneath the can (3 screws must be removed). Please reference these pictures.
The modification itself consists of installing a redesigned outer gimbals assembly and housing cap with a new bearing retainer and lock nut. The old style had glued in bearings.
The parts kit for installing this Mod is not cost prohibitive. However, due to the labor required to install the kit, the parts and labor cost exceed the gyro value in most cases.
Gyro capsules with serial numbers above 21390, KG-102A assemblies S/N 17698+, and KSG-105 assemblies S/N 3642+ should have had Mod 1 incorporated during original manufacturing. On such units, please note that Mod 1 is not marked on the dataplate(s).
In any case, to determine if a KG-102A gyro capsule has Mod 1 incorporated, inspect the gyro can mod chart either on top of the can (if available) or the gyro capsule dataplate underneath the can (3 screws must be removed). Please reference these pictures.
|
|
|
|
What is the maximum drift rate for the KG-102A and KSG-105 directional gyros?
The maximum drift rate for the KG-102A and KSG-105 directional gyro is 1 degree per minute.
Why did Bendix/King change their part numbers from a 9 digit to a 12 digit format?
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.
Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
What is the main difference between the Century NSD-360A HSI and Bendix/King KCS-55A systems?
Is it possible to buy replacement shock mounts for the KG-102A without purchasing the complete installation kit?
Are SEA's Exchange prices negotiable?
Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
Does the KCS-55A or KG-102A provide 26 Volts AC power?
The KG-102A can supply 400 Hz power and eliminate the need for an additional inverter. Pins little p and t on the KG-102A provide the output. Please note that the KG-102A has a 5 VA maximum of 26VAC 400Hz power available. If more than 5VA is required, then an external inverter would be necessary.
What is the significance of Service Bulletin 6 or S/N 34591 for the KG-102A?
KG-102A gyros above serial number 34591 have Mod 6 incorporated during original manufacturing. Mod or SB 6 improves power supply board reliability for the KG-102A unit. Some original KG-102A units have experienced complete power failures as a result of the original board used in production. The updated power supply board related to SB 6 provides a more reliable, robust power supply board for the unit.
