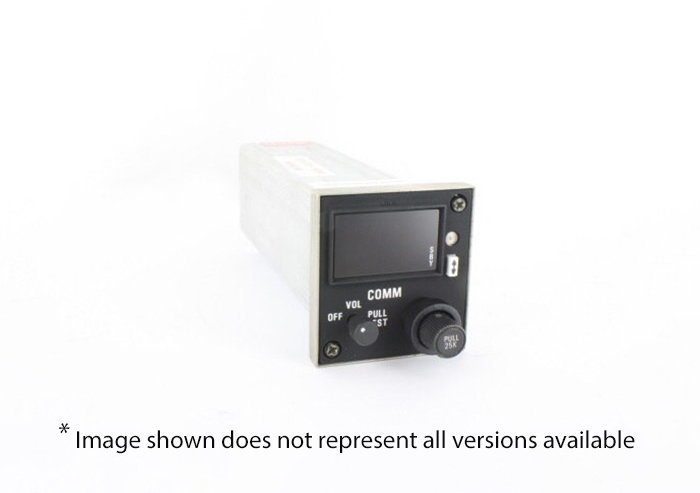

Picture of product KFS-598

Part #:

Model: KFS-598

OEM:

BendixKing

Desc:

VHF Comm Control
Part Number :


KFS-598

FEATURES

  • Digital control for use with KTR-908 VHF communcations transceiver
  • 7-segment gas discharge readouts
  • Cool-burning readouts for greater reliability
  • ACTIVE and STANDBY frequency displays
  • Models available with combination of ON/OFF/VOLUME selections (see table below)
  • Models available with black or gray face plates (see table below)
  • Models available with extended frequency option when used with compatible version of KTR-908 (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with diffused or non-diffused display lens (see table below)
  • Models available with 500 ohm volume control compatible with audio systems in certain Beechcraft King Air installations (see table below)
  • Automatic squelch eliminates need for manual adjustments but manual squelch override provided with pulling of ON/OFF/VOLUME knob
  • Automatic dimming circuit adjusts brightness of display
  • Flip-flop frequency transfer button
  • Similar to KFS-598A but DOES NOT include 9 preset channel memory, configuration capability for additional channel mode and/or tandem cockpit applications, frequency management capability when used with KNS-660 system, display dimmer override, civil or military operating modes



SPECIFICATIONS

Size: 2.193"W x 2.350"H x 5.50"L Weight: .5 lbs.
Lighting: 27.5 or 5 volts DC Temperature Range: -20C to +55C
TSO Compliance: C37b and C38b Environmental Cat.: AIDI/A/KPS/XXXXXXZXA/AB/A
Design: All solid-state, single chip microprocessor controlled with gas discharge display and Electrically Alterable Read Only Memory (EAROM) for power-off frequency storage. Duty Cycle: Continuous
Part Number: Description:
071-1215-24 Frequency range up to 135.975MHz, Black Bezel, 5 volt lighting, diffused lens, With Volume/ON/OFF/TEST controls
071-1215-25 Frequency range up to 135.975MHz, Black Bezel, 28 volt lighting, diffused lens, With Volume/ON/OFF/TEST controls
071-1215-26 Frequency range up to 135.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With Volume/ON/OFF/TEST controls
071-1215-27 Frequency range up to 135.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With Volume/ON/OFF/TEST controls
071-1215-29 Frequency range up to 135.975MHz, Black Bezel, 5 volt lighting, diffused lens, With TEST control only
071-1215-30 Frequency range up to 135.975MHz, Black Bezel, 28 volt lighting, diffused lens, With TEST control only
071-1215-31 Frequency range up to 135.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With TEST control only
071-1215-32 Frequency range up to 135.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With TEST control only
071-1215-34 Frequency range up to 135.975MHz, Black Bezel, 5 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-35 Frequency range up to 135.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-36 Frequency range up to 135.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-37 Frequency range up to 135.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-38 Frequency range up to 151.975MHz, Black Bezel, 28 volt lighting, non-diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-39 Frequency range up to 151.975MHz, Black Bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-40 Frequency range up to 135.975MHz, Black Bezel, 28 volt lighting, non-diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-41 Frequency range up to 135.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST/500 ohm volume controls
071-1215-42 Frequency range up to 151.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-43 Frequency range up to 151.975MHz, Black Bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-44 Frequency range to 151.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST/500 ohm volume controls
071-1215-45 Frequency range up to 151.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With TEST control only
071-1215-54 Frequency range up to 136.975MHz, Black Bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-55 Frequency range up to 136.975MHz, Black Bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-56 Frequency range up to 136.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-57 Frequency range up to 136.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-59 Frequency range up to 136.975MHz, Black Bezel, 5 volt lighting, diffused lens, With TEST control only
071-1215-60 Frequency range up to 136.975MHz, Black Bezel, 28 volt lighting, diffused lens, With TEST control only
071-1215-61 Frequency range up to 136.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With TEST control only
071-1215-62 Frequency range up to 136.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With TEST control only
071-1215-64 Frequency range up to 136.975MHz, Black Bezel, 5 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-65 Frequency range up to 136.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-66 Frequency range up to 136.975MHz, Gray Bezel, 5 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-67 Frequency range up to 136.975MHz, Gray Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST controls
071-1215-70 Frequency range up to 136.975MHz, Black Bezel, 28 volt lighting, non-diffused lens, With VOLUME/ON/OFF/TEST controls
071-1215-71 Frequency range up to 136.975MHz, Black Bezel, 28 volt lighting, diffused lens, With ON/OFF/TEST/500 ohm volume controls


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



071-1215-24
- Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
071-1215-25
- Comm Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-26
- Comm Control
Price Condition Status
$1,550.00 OH OUTRIGHT REQUEST LEAD TIME
$950.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-27
- Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-34
- Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
071-1215-35
- Comm Control

NSN: 5821-01-641-7946

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
071-1215-38
- Comm Control
Price Condition Status
$1,695.00 SV OUTRIGHT REQUEST LEAD TIME
071-1215-39
- Comm Control
Price Condition Status
$1,150.00 OH OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-40
- Comm Control
Price Condition Status
$1,450.00 OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-41
- Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-43
- Comm Control
Price Condition Status
$1,150.00 OH OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-44
- Comm Control
Price Condition Status
$1,150.00 OH OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-54
- Comm Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-55
- Comm Control

NSN: 5821-01-595-1546

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-56
- Comm Control
Price Condition Status
$1,150.00 OH OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-57
- Comm Control
Price Condition Status
$1,150.00 OH OUTRIGHT REQUEST LEAD TIME
$750.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-61
- Comm Control
Price Condition Status
$1,750.00 OH OUTRIGHT REQUEST LEAD TIME
$850.00 OH EXCHANGE REQUEST LEAD TIME
071-1215-65
- Comm Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1215-70
- Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
071-1215-71
- Comm Control
Price Condition Status
$1,575.00 OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.
