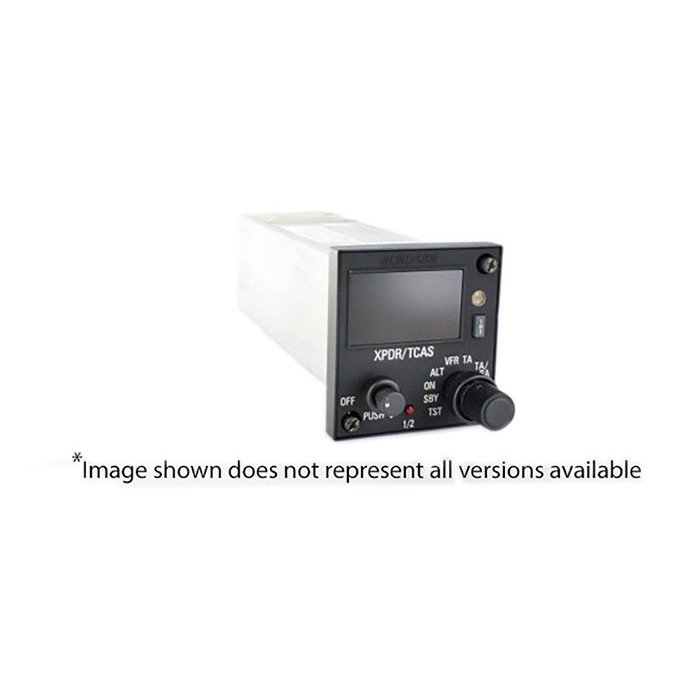

Picture of product KFS-578A

Part #: 071-01507-4903

Model: KFS-578A

OEM:

BendixKing

Desc:

Transponder Control
Part Number :


KFS-578A



FEATURES

  • Digital control for use with MST-67A Mode S Transponder
  • Contains all controls required for transponder operation including TEST, STANDBY, ON (transponder), ALTITUDE, VFR, and IDENT
  • Supplies ARINC 429 data to all versions of MST-67A
  • Can also serve as aircraft's TCAS controller for TCAS equipped aircraft
  • Microprocessor based
  • Versions available that are compatible with Collins TDR-94D Mode S Transponder
  • Black or gray faceplate available
  • Versions available with ON/OFF switch to turn control unit ON or OFF
  • Versions available that provide control of two, individually selected transponders
  • Versions available with various scales of TCAS mile ranges for traffic display
  • Non TCAS versions and TCAS I or II compatible versions available
  • Versions available with 5 or 28 VDC lamp voltage
  • TCAS Range Control Switch Configurations:



SPECIFICATIONS

Size: 2.09W x 2.25"H x 7.38"L Weight: 1.0 lbs.
Input Power: 28 VDC (200 mA nominal) Panel Lighting: 28 VDC (75 mA nominal); 5 VDC (300 mA nominal)
Temperature: -20 to 55C Operational Characteristics: ARINC 718
Data Output: Low-speed ARINC 429 TSO Compliance: TSO C112
Part Number:  Description:
071-01507-XXXX Transponder Control



Click Here to view part number descriptions for KFS-578A



Serial # 2807
Condition OH
Mods 1-2
Tag Date 07/22/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
071-01507-0901
- Transponder Control
Price Condition Status
$1,950.00 OH OUTRIGHT 1 IN STOCK
$1,450.00 OH EXCHANGE 1 IN STOCK
071-01507-4903
- TCAS/Transponder Control
Price Condition Status
$4,750.00 OH OUTRIGHT 1 IN STOCK
$2,250.00 OH EXCHANGE 1 IN STOCK
071-01507-1101
- Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-1201
- Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01507-1301
- Transponder Control

NSN: 5895-01-657-4840

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-1501
- Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-1701
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
071-01507-1901
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-2001
- TCAS/Transponder Control
Price Condition Status
$2,800.00 OH OUTRIGHT REQUEST LEAD TIME
$1,350.00 OH EXCHANGE REQUEST LEAD TIME
071-01507-2301
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
071-01507-3303
- TCAS/Transponder Control

NSN: 5895-01-657-9769

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-3403
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
071-01507-3502
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST AR EXCHANGE REQUEST LEAD TIME
071-01507-3503
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-3603
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01507-4102
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01507-4202
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-4302
- TCAS/Transponder Control
Price Condition Status
$1,450.00 OH EXCHANGE REQUEST LEAD TIME
$2,250.00 OH OUTRIGHT REQUEST LEAD TIME
071-01507-4304
- TCAS/Transponder Control
Price Condition Status
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
071-01507-4402
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-4404
- TCAS/Transponder Control
Price Condition Status
$2,150.00 OH OUTRIGHT REQUEST LEAD TIME
$1,450.00 OH EXCHANGE REQUEST LEAD TIME
071-01507-4902
- TCAS/Transponder Control

NSN: 5895-01-566-6242

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5002
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5003
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5102
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5103
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5202
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01507-5203
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5503
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-5603
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-6503
- TCAS/Transponder Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-01507-8403
- TCAS/Transponder Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes. According to Honeywell Installation Bulletin 502, the PS-578 has the same dimensions, mounting holes, and same connectors as the KFS-578A. Both controls have the same tuning functions however the PS-578 adds the ability to enter the 8 digit aircraft Flight ID. The design of each control differs as well as the internal circuitry. Some capabilities of the KFS-578 requiring part number differences were consolidated into single part numbers in the PS-578. The wiring is identical and no change in plug configuration or system wiring is required.

For operators (usually commercial) whose Flight ID changes frequently, a control head such as Honeywell PS-578 or Collins CTL-92E provide for the entry of the Flight ID. The Flight ID may contain the company-assigned number for that particular flight such as an Airline name and Flight number. For civil operators whose Flight ID (usually the aircraft registration number) whose Flight ID does not change, a control with Flight ID input is not required.
TCAS II is a system used for detecting and tracking aircraft in the area of an aircraft. TCAS interrogates transponders in other aircraft and analyzes the replies to determine range, bearing, and relative altitude (if reporting) of the intruder aircraft. When the TCAS II processor determines that a potential collision hazard exists, it will issue visual and audio advisories to the pilot/copilot for appropriate vertical avoidance maneuvers. TCAS is not able to detect aircraft without an operating ATCRBS transponder (operating in Mode A and C) or a Mode S transponder.
TCAS II utilizes two types of cockpit displays, Resolution Advisory (RA) and Traffic Advisory (TA) display. The RA is incorporated into the vertical speed indicator (VSI). With illuminating red and green arcs around the dial, the VSI displays the required rate, or limitation of climb or descent, to avoid a collision. The TA display shows the intruding aircraft’s relative position and altitude with a trend arrow to indicate if it is climbing or descending greater than 500 feet per minute. The TA display may be presented on compatible weather radar indicator or MFD, dedicated TCAS display or a TA/VSI display. The TA display uses symbols and colors to identify the relative threat of each intruder. Supplementing the displays, TCAS II provides appropriate synthesized voice announcements.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
