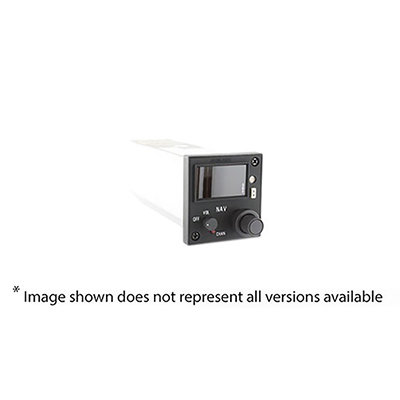

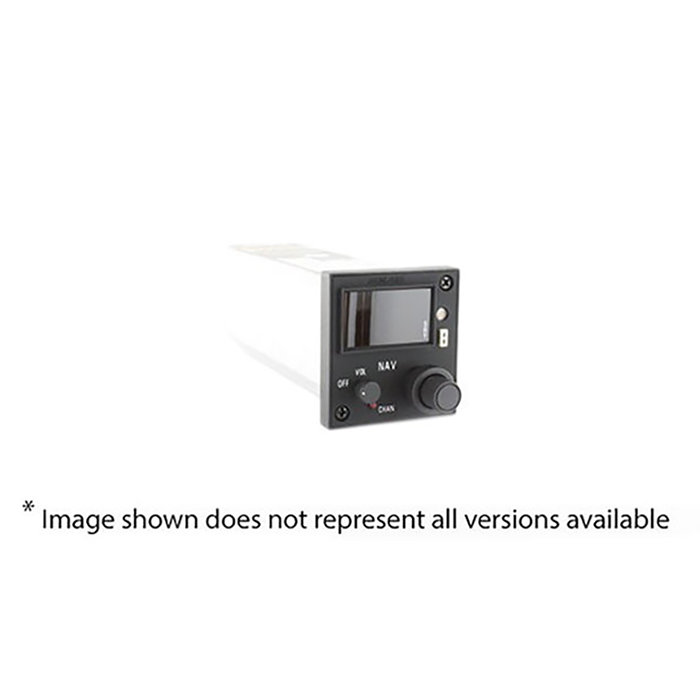

Picture of product KFS-564A

Part #: 071-1283-12

Model: KFS-564A

NSN:

5825-01-428-6779

OEM:

BendixKing

Desc:

Nav Control

Part Number :


KFS-564A

FEATURES

  • Digital control for use with KNR-634 and KNR-634A Nav receivers
  • 7-segment gas discharge readouts
  • Cool-burning readouts for greater reliability
  • ACTIVE and STANDBY frequency displays
  • Models available with combination of ON/OFF/VOLUME selections (see table below)
  • Models available with black or gray face plates (see table below)
  • Models available with 5, 28, or 115 volt lighting (see table below)
  • Photocell adjusts brightness of display
  • Flip-flop frequency transfer button
  • Display dimmer override
  • Civil or Military operating modes - Night Vision Goggle capability (see table below)
  • Direct channleing of frequency displayed in Active window
  • Frequency management capability when used with KNS-660 system
  • Similar to KFS-564 but DOES include above 6 features



SPECIFICATIONS

Size: 2.093W x 2.250"H x 5.775"L Weight: .7 lbs.
Lighting: 27.5 or 5 volts DC Temperature Range: -20C to +55C
Design: All solid-state, single chip microprocessor controlled with gas discharge display and Electrically Alterable Read Only Memory (EAROM) for power-off frequency storage.
Part Number: Description:
071-1283-12 Black bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1283-13 Gray bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1283-15 Black bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1283-16 Gray bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1283-17 Black bezel, 28 volt lighting, diffused lens, With ON/OFF controls
071-1283-18 Gray bezel, 28 volt lighting, diffused lens, With ON/OFF controls
071-1283-20 Black bezel, 5 volt lighting, diffused lens, With ON/OFF controls
071-1283-21 Gray bezel, 5 volt lighting, diffused lens, With ON/OFF controls
071-1283-22 Black bezel, 28 volt lighting, diffused lens, NO controls
071-1283-23 Gray bezel, 28 volt lighting, diffused lens, NO controls
071-1283-25 Black bezel, 5 volt lighting, diffused lens, NO controls
071-1283-26 Gray bezel, 5 volt lighting, diffused lens, NO controls
071-1283-27 Black bezel, 28 volt lighting, standard lens, With VOLUME/ON/OFF controls
071-1283-28 Black, 115VAC lighting, NVG 2 lyr LCD, With VOLUME/ON/OFF controls
071-1283-29 Gray, 115VAC lighting, NVG 2 lyr LCD, With VOLUME/ON/OFF controls
071-1283-30 Black bezel, 115VAC lighting, NVG 2 layer LCD, With ON/OFF controls
071-1283-31 Gray bezel, 115VAC lighting, NVG 2 layer LCD, With ON/OFF controls
071-1283-32 Black bezel, 115VAC lighting, NVG 2 layer LCD, NO controls
071-1283-33 Gray bezel, 115VAC lighting, NVG 2 layer LCD, NO controls
071-1283-38 Black, 115VAC lighting, NVG 1 lyr LCD, With VOLUME/ON/OFF controls. Export License Required
071-1283-39 Gray, 115VAC lighting, NVG 1 lyr LCD, With VOLUME/ON/OFF controls
071-1283-40 Black bezel, 115VAC lighting, NVG 1 layer LCD, With ON/OFF controls
071-1283-41 Gray bezel, 115VAC lighting, NVG 1 layer LCD, With ON/OFF controls
071-1283-42 Black bezel, 115VAC lighting, NVG 1 layer LCD, NO controls
071-1283-43 Gray bezel, 115VAC lighting, NVG 1 layer LCD, NO controls



Serial # KFS564A-A7788
Condition NEW
Mods 1-3
Tag Date 12/01/22
Shop Boeing Distribution Inc.
Warranty 1 Year
071-1283-12
- Nav Control

NSN: 5825-01-428-6779

Price Condition Status
$2,950.00 OH OUTRIGHT IN WORK
$975.00 OH EXCHANGE IN WORK
$9,995.00 NEW OUTRIGHT 1 IN STOCK
071-1283-27
- Nav Control
Price Condition Status
$2,750.00 OH OUTRIGHT 1 IN STOCK
$1,950.00 OH EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-1283-13
- Nav Control
Price Condition Status
RFQ RFQ RFQ
071-1283-15
- Nav Control

NSN: 1680-01-415-5778

Price Condition Status
$2,450.00 OH OUTRIGHT REQUEST LEAD TIME
$1,250.00 OH EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-1283-16
- NAV Control (Gray)
Price Condition Status
RFQ RFQ RFQ
071-1283-17
- Nav Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1283-38
- Nav Control- 115VAC NVG

NSN: 5825-01-561-8250

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
The KFS-564 is no longer in production. As per the KNR-634/634A installation manual page 1-14, the KFS-564A is an exact replacement for the KFS-564.
Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.
