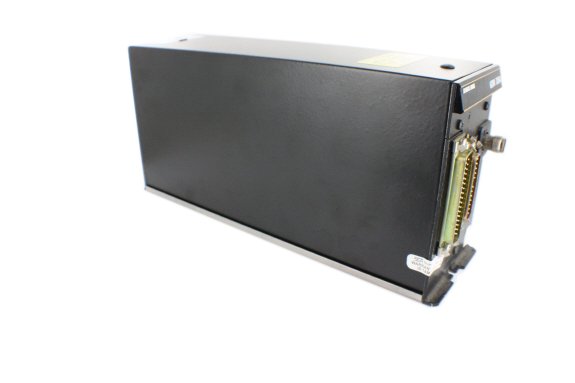

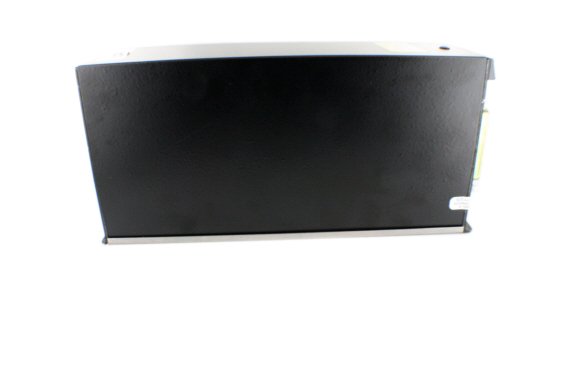

360 degree product image of KDM-706A
360
360 image holder for KDM-706A
360 degree product image thumbnail of KDM-706A
360
Thumbnail product image of KDM-706A

Part #: 066-1066-25

Model: KDM-706A

OEM:

BendixKing

Desc:

DME R/T
Part Number :
Bendix King logo

KDM-706A



FEATURES

  • 252-channels
  • 250 watts all solid-state DME
  • Accepts DME channeling from Bendix/King serial, 2x5 and ARINC 429 serial tuning formats
  • Provides outputs for ARINC formats 568 and 429, analog pulse pairs, analog pulse plus Bendix/King Serial Data for DME indicators
  • Provides 40 mv/nm for analog RNAVs
  • Can be used with KDI-572 or KDI-574 DME indicators
  • Can be channeled automatically by Bendix/King digital or conventional mechanical NAV frequency selector systems
  • Models available with -85 or -90dBm receiver acquisition sensitivity (see table below)
  • Models available with socketed input/outout board for use in conjunction with KDA-1120 ARINC adapter (see table below)
  • Models available for use in KNS-660 Navigation Management System (see table below)
  • Models available with DME Track Flag Output (see table below)
  • Models available with EFIS compatibility which means self test sequence is on 3 second intervals while all other units are on 1 second interval (see table below)
  • Models available with data buss compatible with Collins TCN-118 TACAN (see table below)
  • Similar to KDM-706 in # of channels and power (see KDM-706 for complete difference)
  • TSO'd
  • 18 to 33VDC operation



SPECIFICATIONS

Size: 3.0"W x 5.25"H x 12.80"L Weight: 5.5 lbs.
Transmitter Frequency Range: 1025 to 1150 MHz Receiver Frequency Range: 962 to 1213 MHz
TSO Compliance: C66a, Category A2E1/A/MNO/EXXXXSZAAAA DO 160A Altitude To 70,000 feet
Design: All solid-state, electronically tuned by single-crystal, digital frequency synthesizer. Range, speed, and time-to-station measured digitally, using LSI circuits Operating Temperature: -55C to 70C
Data Outputs: Analog pulse pairs, Analog rate pulse, 40mV/nm DC output, BCD serial data, BNR, BCD, channel serial data Channel Capability: 252 UHF channels
Channel Selection Inputs: Serial Data from KDI-572, 574, or KFS-564 / 2x5, shifted BCD or slip code for DME channel selection Suppression: Bilateral Pulse characteristics
Part Number: Description:
066-1066-11 With -90dBm sensitivity, Socketed I/O Board
066-1066-20 With -90dBm sensitivity, Socketed I/O Board
066-1066-21 With -85dBm sensitivity
066-1066-22 With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board
066-1066-23 With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board, DME Track Flag Output
066-1066-24 With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board
066-1066-25 With -90dBm sensitivity, KNS-660 System Compatible, Socketed I/O Board, DME Track Flag Output, EFIS Compatible
066-1066-31 With -90dBm sensitivity, TACAN Compatible, Socketed I/O Board
NOTE: Same base part number used for KDM-706/706A DME Transceivers



PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



Serial # 12307
Condition OH
Mods 5-7
Tag Date 07/25/24
Shop Avionics Specialist Inc.
Warranty 6 Months
066-1066-25
- DME Transceiver
Price Condition Status
$3,795.00 OH OUTRIGHT 1 IN STOCK
$1,795.00 OH EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-1066-20
- DME R/T
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1066-22
- DME Transceiver

NSN: 5895-01-308-0341

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1066-23
- DME R/T

NSN: 5895-01-249-7739

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
066-1066-24
- DME Transceiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes. There are several installation and wiring considerations that need to be addressed when changing KDM-706A units in existing installations. KDM-706A units with P/N 066-1066-20 and -22 did not originally have Mod 4 installed in original production. Mod 4 addresses the addition of a DME track flag output that is used This output is required to complete a compatible interface to some navigation systems such as the older KNS-660 and Litton 3000 as well as Sperry RD-650 HSIs. In order for a unit with Mod 4 to function properly in place of an existing KDM-706A without Mod 4, you must rewire part of the harness to prevent damage to the unit. Connector P7063 must be removed from ground potential (i.e. -20/22, non Mod 4 units) and rewired. Pin 19 of P7063 was used for aircraft ground on -20/22, non Mod 4 units. For units with Mod 4 and -23/24/25, Pin 19 is now used to provide +28VDC at 150ma drive capability for the purpose of operating a DME track valid flag. This can be achieved by connecting Pin 19 to Pin 36. Therefore, in order for units with Mod 4 as well as -24/25 units to function in place of -20/22/non Mod 4 units, you must remove pin 19 from the mating connector harness and connect it to 36 or splice into the wire going to Pin 36. For complete detailed information, reference Bendix/King Installation Bulletin # 245 and Bendix/King Service Bulletin P/N 600-04374-0040.
None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
