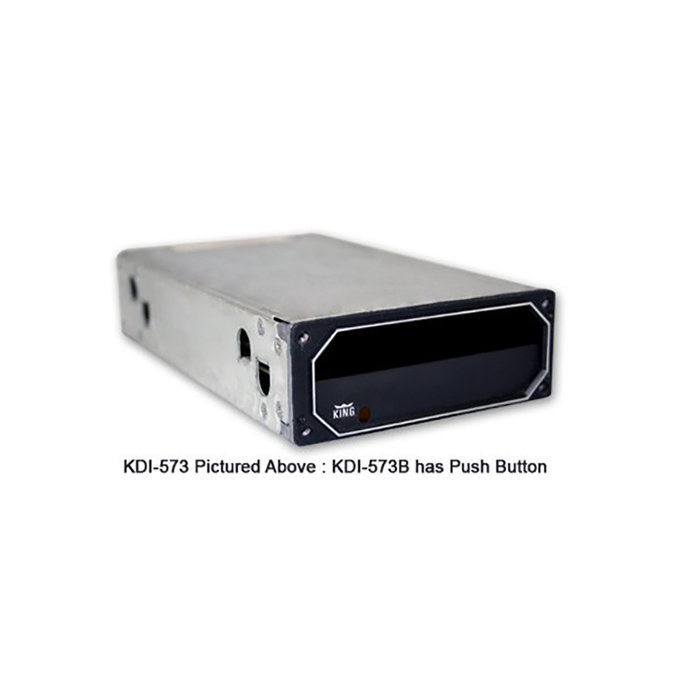

Picture of product KDI-573B

Part #:

Model: KDI-573B

OEM:

BendixKing

Desc:

DME Indicator

Part Number :
Bendix logo

KDI-573B

FEATURES

  • Remote mounted DME indicator designed to work with KDM-706A DME R/T
  • Has pushbutton to cycle righthand display between gourndspeed and time-to-station
  • Receives data in ARINC 429 format
  • Displays radar altitude from KRA-405 Radar Altimeter System in dashed lines on right-hand display
  • Automatic dimming
  • Versions available with black or gray bezel (see table below)
  • Versions available that can display information from a multi-channel DME with the addition of a panel mounted 1/2 switch (see table below)





SPECIFICATIONS

Size: 3.50"W x 1.35"H x 8.59"L Weight: 1.1 lbs.
TSO Compliance: C66b, C87, DO-160A Env. Cat. A2F1/A/KPS/XXXXXXA/BZ/AB/BZ/A Power Requirements: 28VDC @ 0.2A Max
Signal Inputs: Radar Altimeter Analog; Radar Altimeter Valid; ARINC 429 Serial Data Display Type: Gas Discharged
Part Number: Description:
066-1091-00 Black bezel, DME Indicator
066-1091-01 Gray bezel, DME Indicator
066-1091-02 Black bezel with Night Vision Goggle display, DME Indicator
066-1091-04 Black bezel with multi-channel compatibility, DME Indicator
066-1091-05 Gray bezel with multi-channel compatibility, DME Indicator
066-1091-06 Black bezel with Night Vision Goggle display and multi-channel compatibility, DME Indicator


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



066-1091-00
- DME Indicator

NSN: 6605-01-434-8334

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1091-02
- DME Indicator (NVG)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-1091-04
- DME Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
