Part #:

Model: KCI-310

OEM:

BendixKing

Desc:

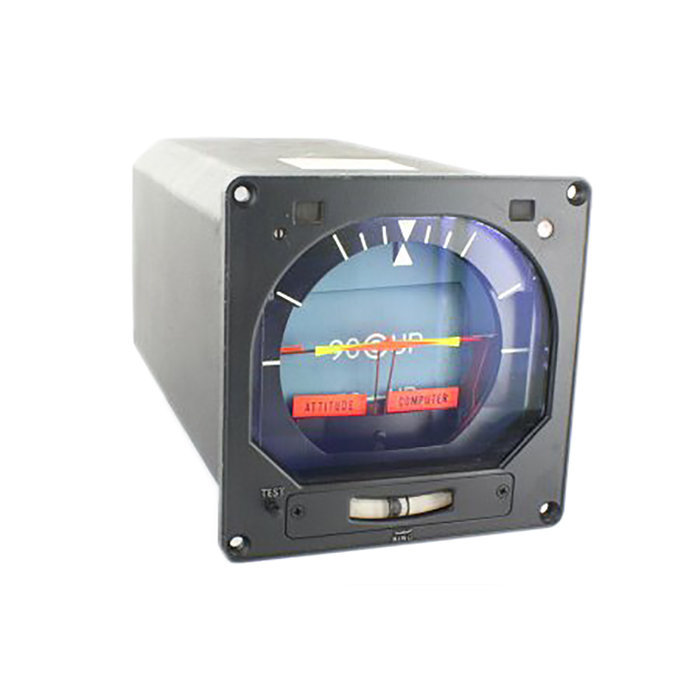

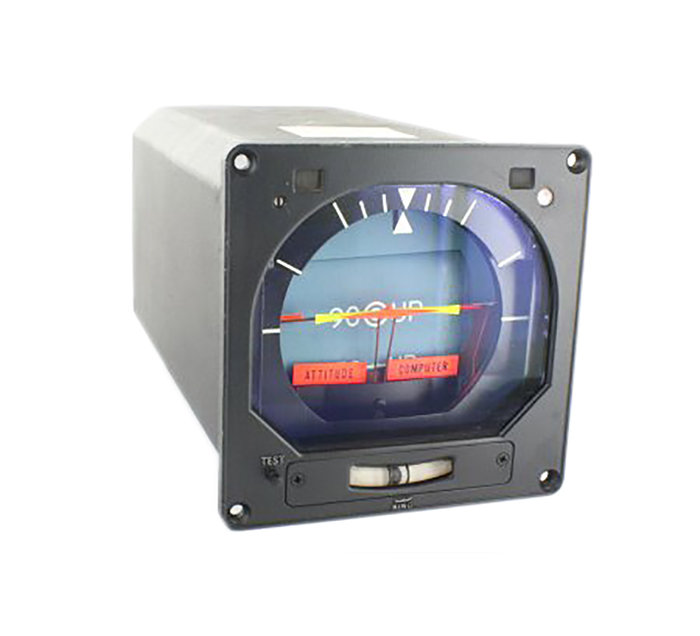

Flight Command Indicator

Part Number :


KCI-310

FEATURES

  • Please Note: Sandel offers the SA4550 as a direct replacement for the KCI-310
  • Flight command indicator providing altitude and command display for various King Flight Control Systems
  • Consists of altitude and command displays & valid and deviation meters
  • Pitch attitude indicator
  • Bank Angle Indicator
  • Pitch trim adjust
  • Fixed symbolic aircraft for reference
  • Displays computed pitch and bank commands from flight computer
  • Attitude warning flag warns of pitch or roll attitude failure in flight computer or vertical gyro
  • Computer warning flag warns of failure in flight computer or command loops of KCI-310
  • Preflight test button
  • Light dimming by photoresistor
  • Inclinometer monitors slip and skid in turns
  • Certains versions contain Decision Height (DH) annunciator (on left or right of unit) which illuminates upon passage through decision height set on radar altimeter (see table below)
  • Certains versions contain Minimum Descent Altitude (MDA) annunciator which illuminates upon coincidence of pressure altitude and selected altitude manually pre-set on VNAV computer (see table below)
  • Certains versions contain Area Navigation (RNAV) annunciator which illuminates when RNAV system (if equipped) is activated (see table below)
  • Certains versions contain Angle (ANG) annunciator which illuminates when VNAV meter in indicator is displaying Vertical Track Angle from FMS computer (see table below)
  • Certain versions contain glideslope deviation pointer corresponding to position of glideslope beam (see table below)
  • Certain versions contain localizer deviation pointer corresponding to position of localizer beam (see table below)
  • Certiain verions contain VNAV deviation displaying vertical flight path angle for VNAV tracking prior to VNAV coupled (see table below)
  • Certain versions compatible with KNS-660 Flight Management System (see table below)



SPECIFICATIONS

Size: 4.3"W x 4.3"H x 9.4"L Weight: 5.00 lbs.
Power: 9.1 VA 26 VAC
Part Number: DESCRIPTION:
066-3020-00 Black, 5 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer
066-3020-01 Black, 5 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, IAS deviation knob
066-3020-02 Black, 5 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, VNAV annuciator
066-3020-03 Gray, 5 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, VNAV annuciator
066-3020-04 Gray, 5 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer
066-3020-05 Black, 28 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer
066-3020-06 Black, 28 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, VNAV annunciator
066-3020-07 Gray, 28 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer
066-3020-08 Gray, 28 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, VNAV annunciator
066-3020-09 Black, 28 volt red lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer
066-3020-10 Black, 28 volt lighting, DH annun. on right, MDA annun, GS pointer, LOC pointer, VNAV annunciator
066-3020-11 Black, 28 volt lighting, DH annunciator on right, RNAV annunciator
066-3020-12 Black, 5 volt lighting, DH annunciator on right, RNAV annunciator
066-3020-13 Gray, 28 volt lighting, DH annunciator on right, RNAV annunciator
066-3020-14 Gray, 5 volt lighting, DH annunciator on right, RNAV annunciator
066-3020-15 Black, 28 volt lighting, DH annunciator on left, ANG annunciator, GS pointer, LOC pointer, VNAV annunciator, KNS-660 compatible
066-3020-16 Black, 5 volt lighting, DH annunciator on left, ANG annunciator, KNS-660 compatible
066-3020-17 Gray, 28 volt lighting, DH annunciator on left, ANG annunciator, KNS-660 compatible
066-3020-17 Gray, 5 volt lighting, DH annunciator on left, ANG annunciator, KNS-660 compatible



PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



066-3020-06
- Flight Command Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-3020-11
- Flight Command Indicator

NSN: 6615-01-391-3503

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
