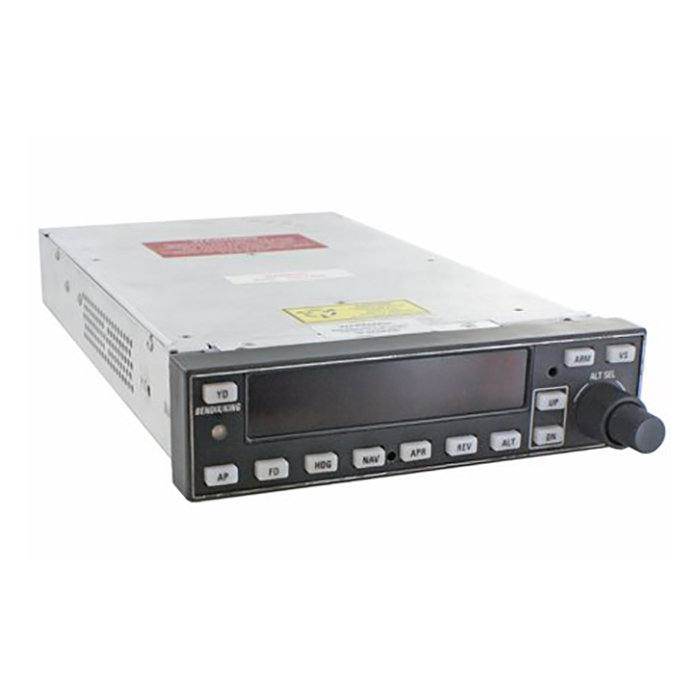

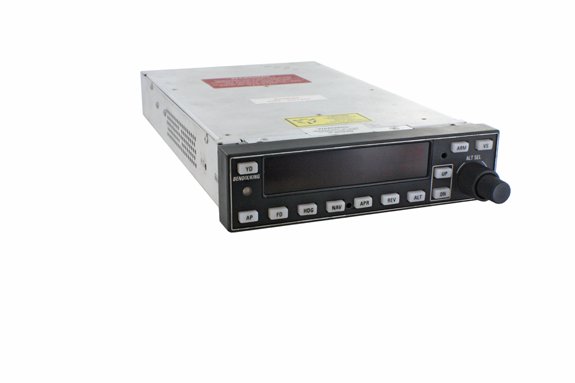

Part #: 065-00183-2901

Model: KC-225

OEM:

BendixKing

Desc:

Flight Computer

Part Number :


KC 225

FEATURES

  • Flight Control Computer
  • Part of KFC 225 Flight Control System



SPECIFICATIONS

Dimensions: 6.306" W x1.665" H x 11.26" + 1.71" L Weight: 3.20 lbs (Including mounting rack and mating connectors)
Mounting: Panel with supplied rack Mating Connectors: Subminiature 62 pin (P2251) 78 pin (P2252)
Crimp Contacts: 22 Awg Temperature: -45° C to +70° C
Altitude Range: -1000 to 35,000 Ft Power Inputs: (Nominal) +28VDC at 0.6A +14V DC at 1.2A (not qualified for emergency operation)
Power Outputs: +15VDC at 250ma --15VDC at 250ma +5VDC at 50ma (Configurationmodule power) +5.1VDC at 50ma (Baro set reference) TSO: C52b, C9c
Part Number: Description:
065-00183-0101 Pitch and Roll system (2 axis), Flight Computer
065-00183-0201 2 axis, EFIS compatible, Flight Computer
065-00183-2501 Pitch and Roll with Yaw Damper (3 axis)
065-00183-2601 3 axis, EFIS compatible, Flight Computer
065-00183-0301 2 axis, Flight Computer
065-00183-0401 2 axis, EFIS compatible
065-00183-0501 2 axis, Flight Computer
065-00183-0601 2 axis, EFIS compatible
065-00183-2701 3 axis, Flight Computer
065-00183-2801 3 axis, EFIS compatible
065-00183-2901 3 axis, Flight Computer
065-00183-3001 3 axis, EFIS compatible







065-00183-2901
- Autopilot Computer
Price Condition Status
$14,500.00 SV OUTRIGHT IN WORK
$4,750.00 SV EXCHANGE IN WORK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
065-00183-0501
- Flight Computer
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
065-00183-2701
- Autopilot Computer
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Many avionics systems require a configuration or setup process. This process is required to interface certain avionics systems to other systems in the aircraft that will be inputting or outputting information to and from these systems. Some examples of systems that require a configuration or setup process include:

Autopilot
EFIS
GPS
EGPWS
EHSI
RADAR
TAWS
TCAS


In addition, most newer technology or solid state systems require configuration via computer interface of some type. A qualified avionics technician should always refer to the appropriate manufacturer's installation manual for complete information and instructions.
