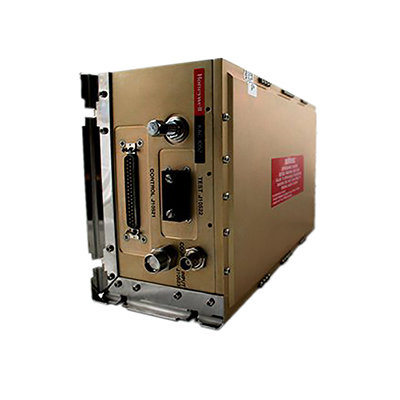

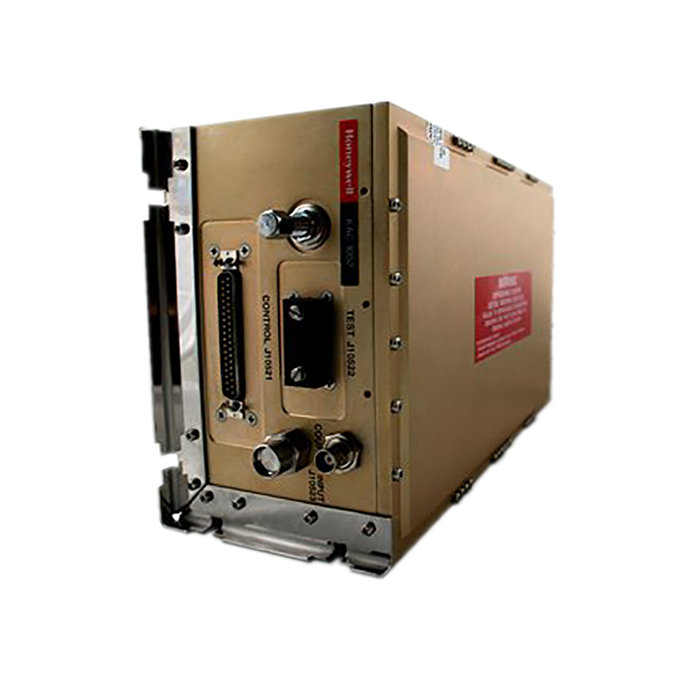

Picture of product KAC-1052

Part #: 064-01074-0101

Model: KAC-1052

NSN:

5985-01-555-4226

OEM:

BendixKing

Desc:

HF Antenna Coupler

Part Number :


KAC-1052
FEATURES
  • Antenna Coupler unit for use with KHF-1050 HF system
  • Used in conjunction with KRX-1053 receiver/exciter, KPA-1052 power amplifier, and PS-440 control
  • Microprocessor control
  • Selects tuning network configurations, impedance transformations, and binary capacitance/inductance to produce VSWR of 2.5:1 or less
  • Can be mounted vertically or horizontally



SPECIFICATIONS

Size: 13.5"L x 4.7"W x 7.2H" Weight: 15.7 lbs.
Temperature: -55 to 70C Altitude: 55000 feet
TSO: C31d, C32d Power Requirement: +27.5 VDC at 3A
VSWR: Less than 1.5:1 (typical), 3.0:1 (max) Tuning Time: 50 msec (nominal) for prev. tuned freq., 2-10 sec (nominal) if not prev. tuned
Part Number: Description:
064-01074-0101 HF Antenna Coupler



Serial # KAC1052-3413
Condition SV
Mods 1-3
Tag Date 08/28/24
Shop Honeywell International Inc.
Warranty 6 Months
064-01074-0101
- HF Antenna Coupler

NSN: 5985-01-555-4226

Price Condition Status
$26,500.00 SV EXCHANGE 1 IN STOCK
$45,000.00 SV OUTRIGHT 1 IN STOCK
$62,150.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes. The KAC-1052 is certified for vertical installation in fixed wing aircraft only. Therefore, helicopter installation must use a horizontal mount P/N 071-00202-0001 which is supplied in the 050-03699-0000/0001 kits.
No, the HF-1050 (aka KHF-1050) has the ability to install 2 systems sharing one antenna with only one system transmitting at a time. An auto select transmit scheme determines which system is selected to transmit. When one system transmit, reception on the other system is disabled. The KHF-1050 does not require any external accessories for dual system operation other than a custom fabricated coaxial cable to allow interconnecting the two KAC-1050 antenna couplers to the antenna.
