Part #: 071-01553-0200

Model: KA-92

NSN:

5985-01-417-9558

OEM:

BendixKing

Desc:

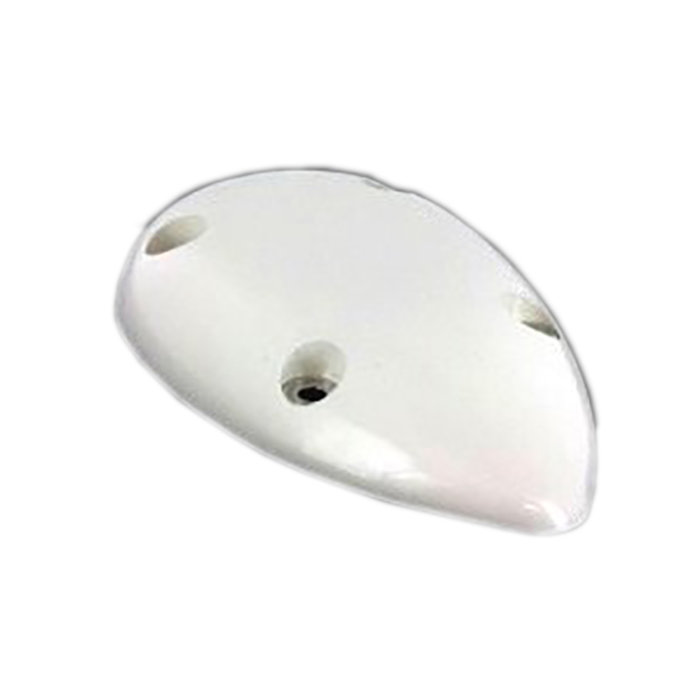

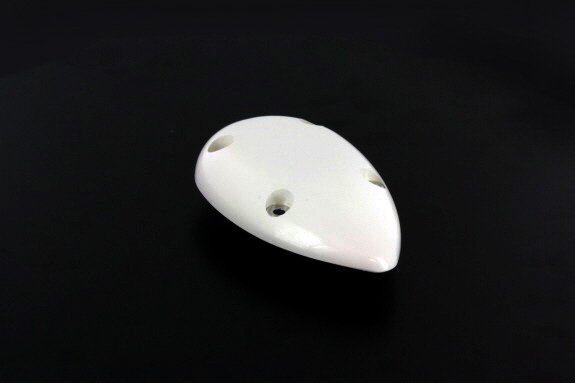

GPS Antenna

Part Number :


KA-92
FEATURES
  • Active GPS Antenna commonly used with Bendix/King line of GPS Receivers such as KLN-89B, KLN-90B, KLN-94, KLN-900, and KLX-135A
  • May also be used with GNS-XLS FMS although AT-XLS is suggested antenna
  • Mounted on top of fuselage at least 3 ft. away from VHF antennas
  • Mounting antenna near propeller and T-tail of aircraft should be avoided
  • Mounts with 4 each #8-32 x 0.75 screws

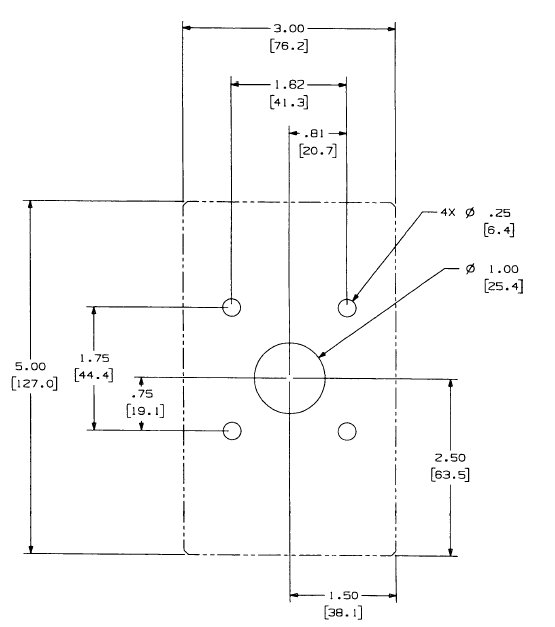

  • Click Here to view mounting pattern



SPECIFICATIONS
Dimensions: .70"H x 2.70"W x 4.30"L Weight: .27 lbs.
TSO: C129 Airspeed Rating: 600 knots TAS
Output Impedance: 50 ohms nominal DC Voltage: 5 volts +- 0.5 volts
DC Current: 50 ma max. Gain and Noise: 26.5 dB and 2.3 db
Part Number: Description:
071-01553-0200 GPS Antenna



Serial # 02839
Condition SVC
Mods None
Tag Date 10/29/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 64065
Condition SVC
Mods None
Tag Date 10/29/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 02688
Condition SVC
Mods None
Tag Date 09/25/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 08396
Condition SVC
Mods None
Tag Date 09/16/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
071-01553-0200
- GPS Antenna

NSN: 5985-01-417-9558

Price Condition Status
$595.00 SVC OUTRIGHT 4 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
