Part #:

Model: KA-61

OEM:

BendixKing

Desc:

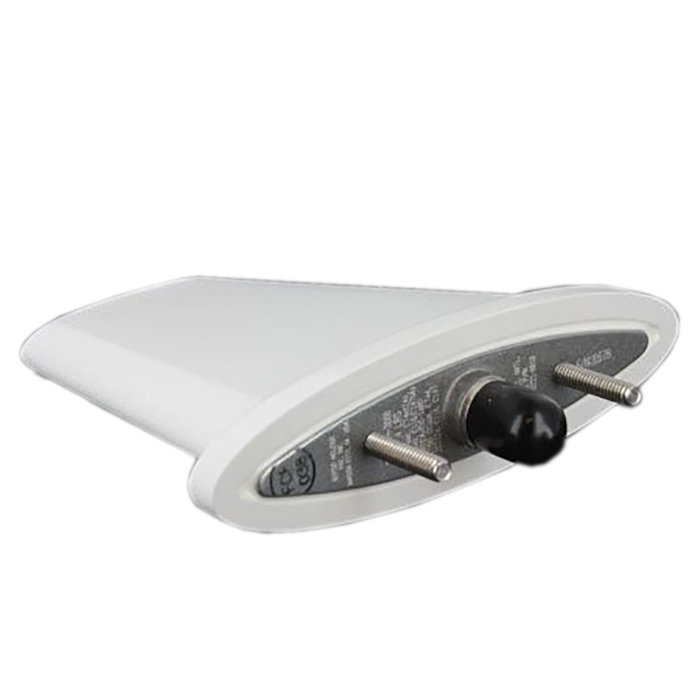

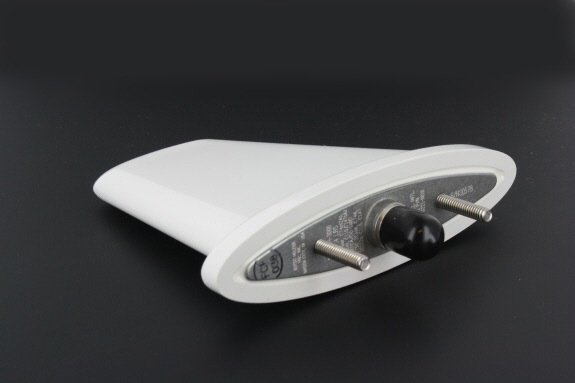

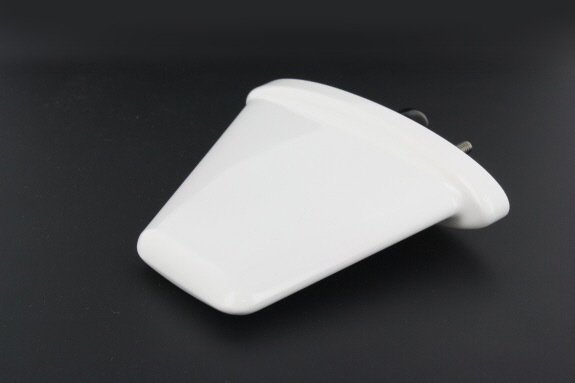

L-Band Antenna

Part Number :
Bendix King Logo


KA-61
FEATURES
  • L-Band Antenna
  • Direct Replacement for the KA-60 antenna (P/N 071-01591-0001)
  • BNC or TNC configuration available (see P/N chart below)
  • TNC recommended by Honeywell due to improved electrical connectivity and signal performance
  • Lightning- qualified for improved reliability
  • Supports Honeywell transponders, DME & IHAS installations



SPECIFICATIONS

Impedance:   50 Ohms nominal Frequency: 960-1220 MHz
VSWR:                  1.5:1 Max Polarization: Vertical
RF Power: 2.5 kW peak Pattern: Omni-Directional
max height: 17″ Weight: 0.2 lbs
gain: Unity TSO:   C66c, C74d, C118a, C112e, C147a
Connector: BNC or TNC Female



  Description:
071-00221-0010 BNC Connector, White, L-Band Antenna
071-00221-0011 BNC Connector, Black, L-Band Antenna
071-00221-0020 TNC Connector, White, L-Band Antenna
071-00221-0021 TNC Connector, Black, L-Band Antenna
89000043-001 Same as 071-00221-0010, manufactured by RAMI for BendixKing



071-00221-0010
- L-Band Antenna (BNC)

NSN: 5985-01-316-4591

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-00221-0011
- L-Band Antenna (BNC, Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-00221-0020
- L-Band Antenna (TNC, White)

NSN: 5985-01-552-5663

Price Condition Status
$1,695.00 NEW OUTRIGHT REQUEST LEAD TIME
071-00221-0021
- L-Band Antenna (TNC, Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
89000043-001
- AV-61(-BK1) L-Band Antenna (BNC)
Price Condition Status
$325.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

PN 89000043-001 is now available as an direct replacement for PN 071-00221-0010.  This is detailed in a Service Information Letter (SIL) frm BendixKing dated 20 September 2019.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, Honeywell has replaced the KA-60 DME/Transponder antenna with the KA-61. The KA-61 is a direct fit, form, and function replacement for the KA-60. Click Here to read the bulletin from Honeywell.
