Part #: 071-01501-0000

Model: KA-54A

NSN:

5985-01-453-5289

OEM:

BendixKing

Desc:

Rad. Alt. Antenna

Part Number :


KA-54A

FEATURES

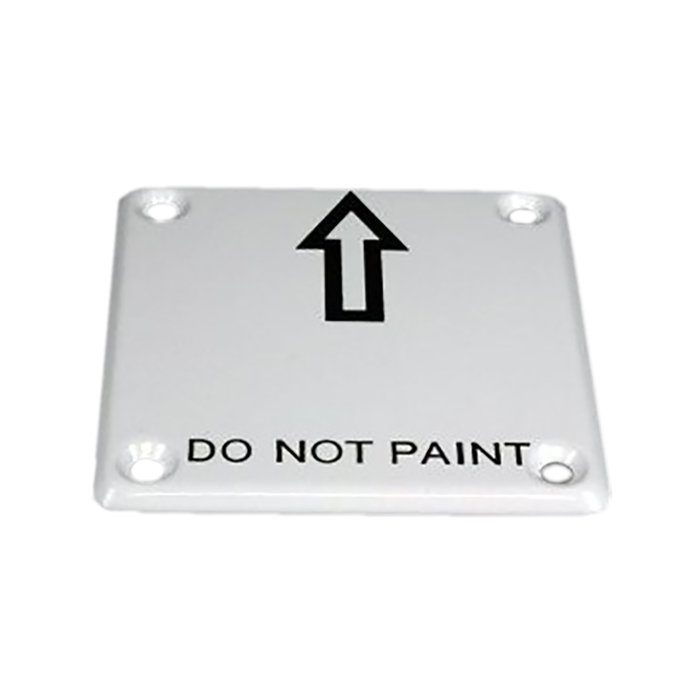

  • Radar altimeter antenna used with KRA-405 and KRA-405B systems
  • Two KA-54A antennas required for each system installation
  • Thin, small size for easy, compact installation
  • Equivalent to Sensor Systems S67-2002 and L3 DM PN19-2-1 as Certified Antennas for the KRA-405B system per Installation Manual Table 2-1 page 2-11



SPECIFICATIONS
TSO Compliance: C87 Env Cat D2AJXWFD Dimensions: 3.65" L x 3.50" W x 0.73" H
Weight: 0.2 lbs. each Altitude: 60,000 ft.
Temperature Range: -54 to 85 deg. C Beamwidth: 45 deg. min (E-Plane), 40 deg. min (H-Plane)
Sidelobes: Greater than -40dB down VSWR: 4240-4360 MHz: 1.5:1 Maximum
Gain: 10 dB above isotopic Polarization: Linear
Power Handling: 1W average, 10W Peak Cross Coupling: 20 in spacing-88 dB max, 36 in spacing-95 dB max
Input Impedance: 50 ohms nominal
Part Number:  Description:
071-01501-0000 Radar Altimeter Antenna



071-01501-0000
- Radio Altimeter Antenna (White)

NSN: 5985-01-453-5289

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

There is no physical, technical, or functional difference at all between the Sensor Systems S67-2002 and Honeywell KA-54A antennas. Honeywell (Bendix/King) obtains the antennas from Sensor Systems, labels it with Part Number 071-01501-0000. In fact, Honeywell even lists the generic Sensor Systems P/N S67-2002 as a recommended antenna for the KRA-405B radar altimeter system. Please see this excerpt from the KRA-405B installation manual.

If an intermittent noise problem exists, then it is strongly recommended to use only non-magnetic stainless steel screws when mounting the KA-54A antenna. As an example of such a screw is P/N MS24693-C272.
The arrows on some radar altimeters are a reference reminder that the antennas must be mounted on the same longitudinal axis on the aircraft. Normally, the antennas are mounted so that the arrow head of one antenna points to the tail of the other antenna arrow. The 2 arrows can point at each other as long as they are on the same longitudinal axis. Click here to view a basic diagram of proper radar altimeter antenna installation.
