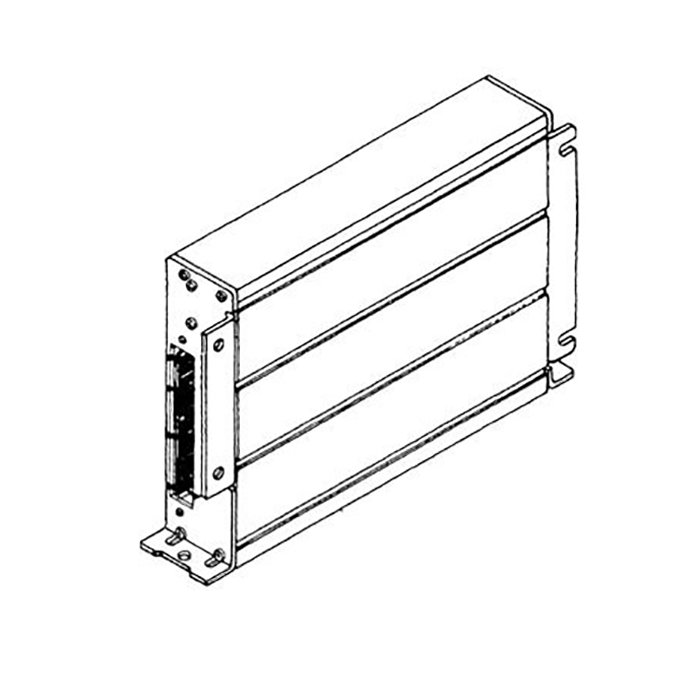

Picture of product KA-120

Part #: 066-1089-00

Model: KA-120

OEM:

BendixKing

Desc:

DME/GS Adapter

Part Number :


KA-120

FEATURES

  • Code conversion unit that accepts serial tuning information from one or two nav receivers and generates two sets of parallel information
  • One set of parallel tuning information is for DME and one set for Glideslope
  • Possible code formats are ARINC 2x5 or Bendix/King Slip code for DME and Bendix/King 4x5 or ARINC 2x5 for glideslope
  • Either parallel output can be tuned from either serial input or both outputs can be tuned from the same input
  • Both parallel outputs can be placed in high impedance state for paralleling with other controls
  • Provides a hold function that latches DME parallel information if DME tuning info is lost while in hold mode
  • Will operate from either 14 or 28VDC
  • May be mounted vertically or horizontally



SPECIFICATIONS
Dimensions: 1.07H" x 4.00"W x 6.75"L Weight: 1.0 lbs. (.454kg)
Temperature: -55 to 70C Power: 27.5VDC max current 0.20 amps 13.75VDC max current 0.20 amps
TSO: DME C66b, GS C34c Environmental: DO-160A Cat. A2D2/A/MNO/XXXXXXZ/BZ/AB/BZ/A
Part Number:  Description:
066-1089-00 DME/GS Adapter



Serial # 2204
Condition SVC
Mods 1
Tag Date 12/11/15
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-1089-00
- DME/GS Adapter
Price Condition Status
$495.00 SV OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes. Southeast Aerospace recommends that Service bulletin 1 and 2 be complied with on the KA-120 when the adapter is being installed on a new installation.

Service Bulletin 1 corrects an impedance mismatch between the new generation KX-155 and KX-165 Nav/Comms that utilize surface mount technology. KA-120 with serial number 1845 and above have Service Bulletin 1 incorporated during original manufacturing. The cost to add SB 1 is approximately $200.

Service Bulletin 2 corrects a serial tuning bus incompatibility when interfacing the KA-120 with a KX-125 and with new generation KX-155 and KX-165 surface mount units (post Mod 16 units). KA-120 with serial number 2819 and above have Service Bulletin 2 incorporated during original manufacturing. Honeywell does offer warranty credit for any KA-120 S/N 2818 and below that requires this modification. An authorized Honeywell Service Center must perform the modification and submit the warranty claim.
