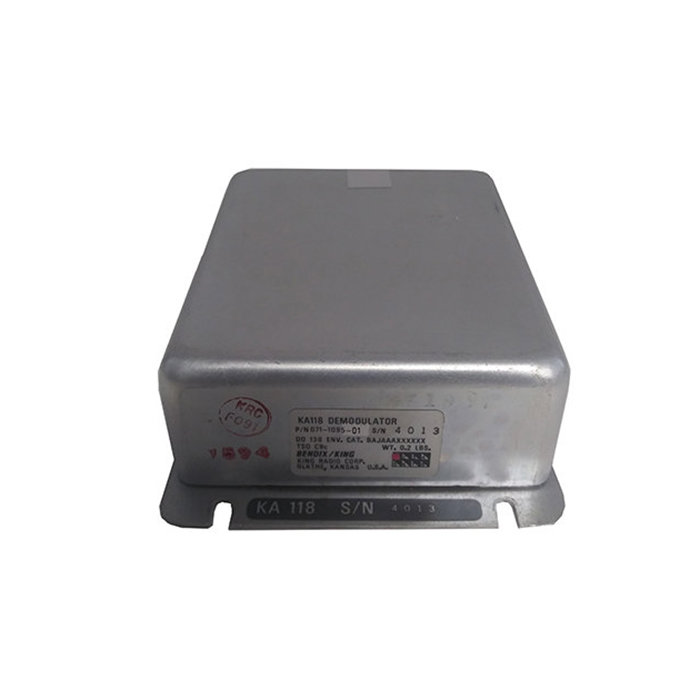

Picture of product KA-118

Part #:

Model: KA-118

OEM:

BendixKing

Desc:

Heading Error Adapter

Part Number :


KA-118



FEATURES

  • Used to interface ARINC navigation indicators as NAV#2 with the KFC-200 Autopilot System
  • AC course datum signals are demodulated and scaled for proper presentation to the KFC-200
  • Includes Heading Select demodulator channel
  • -00 version generates AC excitation signal for the nav indicator
  • -01 version relies on the aircraft 26V 400Hz supply as the reference



SPECIFICATIONS
Dimensions: 3.30" x 4.80" x 1.70" Weight: 0.2 lbs.
Mounting: 4-#6 screws TSO: C9c
Env. Cat.: BAJAAAXXXXXX Power Inputs: 28VDC at 0.4a or 14VDC at 0.3a +-15VDC at 5ma
Input Scale Factor: 200-400mVAC/degree in phase RT course datum and heading select Output Scale Factor: 0.2VDC/degree course datum +rt; 0.55VDC/degree heading select +rt
Part Number: Description:
071-1059-00 Demodulator, Heading Error Adapter, AC Signal /NavIndicator
071-1059-01 Demodulator, Heading Error Adapter, Aircraft 26V 400Hz



071-1095-00
- Heading Error Adapter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
071-1095-01
- Heading Error Adapter
Price Condition Status
$250.00 SV OUTRIGHT REQUEST LEAD TIME
