Part #:

Model: IN-812A

OEM:

BendixKing

Desc:

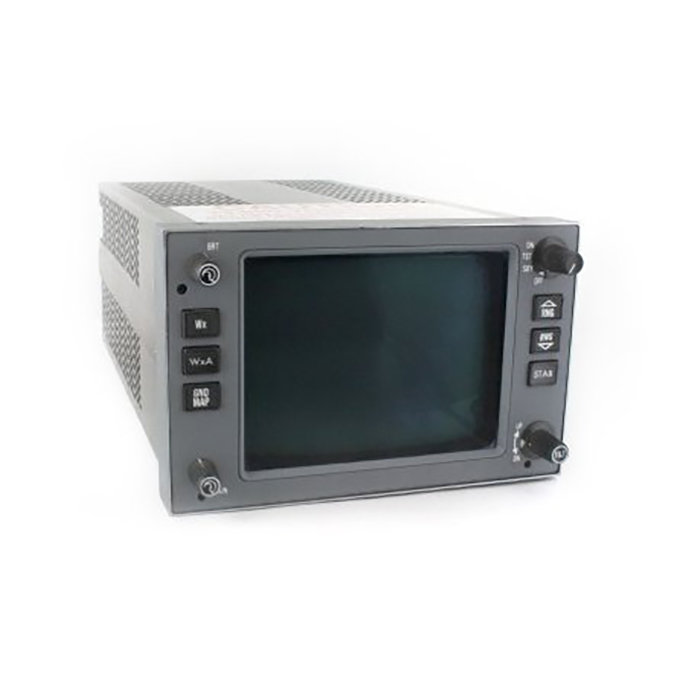

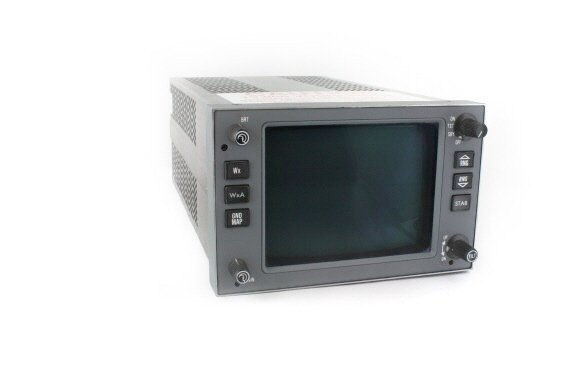

Radar Indicator

Part Number :


IN-812A



FEATURES

  • Color radar indicator used with RDS-81
  • Display range/range marks of 10/2.5,20/5,40/10,80/20,160/40,240/60
  • Special inputs provided for direct external control of CRT color guns allowing an external graphics unit such as GC-360A or GC-381A to control display
  • Provides four color display of weather and a three color display of ground targets
  • Capable of handling 5,14, or 28 V panel lighting
  • Available with black or gray bezel (see table below)



SPECIFICATIONS

Altitude: 25000 ft. unpressurized Temperature: -20 to 55C
Dimensions: 6.4"W x 4.11"H x 12.75"L Weight: 8.9 lbs.
TSO: C63b Class 7 Env. Categories: DO-160A; A1B1/A/PKS/XXXXXXABABA
Input Power: 28VDC @ 2.0 amps continuous (operating); 14VDC @ 1mA, 28VDC @ 264mA or 5VAC @ 1mA (lighting) Self Test Capability: TST position on indicator selects test pattern
Part Number: Description:
066-3114-00 Black panel color, 5/14/28 volt lighting, Radar Indicator
066-3114-01 Gray panel color, 5/14/28 volt lighting, Radar Indicator



066-3114-00
- Radar Indicator

NSN: 5841-01-326-6141

Price Condition Status
$2,950.00 SV OUTRIGHT IN WORK
$2,250.00 SV EXCHANGE IN WORK
066-3114-01
- Color Radar Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
