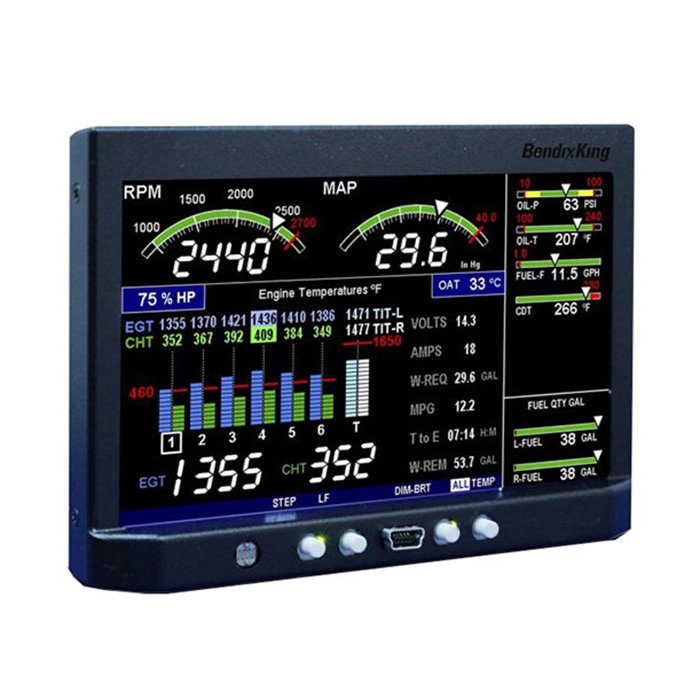

Picture of product AeroPoint 200

Part #:

Model: AeroPoint 200

OEM:

BendixKing

Desc:

Engine Display - Single Engine

Part Number :

AeroPoint 200
FEATURES
  • Designed for single engine aircraft
  • 4 or 6 cylinder versions available
  • RPM
  • VGA display
  • Manifold air pressure
  • Exhaust gas temperature
  • Cylinder head temperature
  • Outside air temperature (C or F)
  • Oil temperature replaces factory sender
  • Oil pressure
  • Fuel Flow, GPH, FloScan 201 or 231 transducer
  • Estimated fuel used
  • Estimated time to empty
  • Volts
  • Amp-1 with 100 amp Shunt
  • Percent horsepower
  • Data recording of all engine parameters with GPS position
  • USB memory stick 1 GB/ Recording
  • LOP and ROP algorithm
  • Trend charting software
  • 3 year warranty



SPECIFICATIONS

dimensions: 5.11” H x 5.584” W x 3.3” D, Note add 2” for connectors on depth Linerized accuracy 1 degree: 1 degree
weight: 24 Oz display: 1000 nits
resolution:  1°F voltage: 7.5 to 35 volts at ½ amp



Part Number: description:
apo20001 Single Engine Aircraft, 4 cylinder
apo20002 Single Engine Aircraft, 6 cylinder



89000035-001
- APO20001 Engine Indicator w/ Install Kit (4 cyl)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
89000035-002
- APO20002 Engine Indicator w/ Install Kit (6 cyl)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
