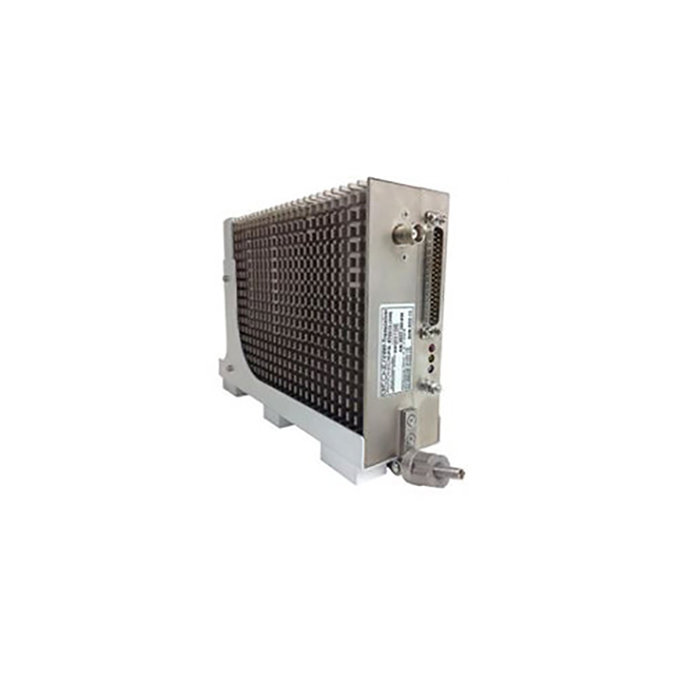

Picture of product RT6512-(100)

Part #: 0644.927-910

Model: RT6512-(100)

OEM:

Becker Avionics

Desc:

VHF Transceiver 20W

Part Number :



RT6512

FEATURES

  • Channel Spacing: 25 and 8.33 kHz
  • Output power: 20 W
  • Frequency Range: (Standard 118-136.991 MHz -1XX PNs, (118-155.975 MHz -2XX PNs)
  • Standard communication interface: ARINC 429 (standard), RS422 (Becker proprietary)
  • Emergency mode (Optional)
  • EASA, FCC certificated
  • Low weight and reduced size compared to similar devices
  • Passive cooling
  • Overheat protection
  • Crosstalk reduction for dual installations
  • Maintenance-Free
  • Dedicated control unit: RCU6512 from Becker



SPECIFICATIONS
power supply: 28 VDC nominal Current consumption: 0.6 A nominal, 7 A in TX mode
transmitter power: 20 W CHANNEL SPACING: 25 kHz / 8.33 kHz
Operating altitude: Up to 50,000 ft. vibration: Fixed wing & Rotary wing
Operating Temperature: -40°C to +70°C interfaces  ARINC 429, RS422
Certification: EASA.210.10060121 STANDARDS: ED-23C, DO-186B, ED-67, DO-207, DO160G
TX CLASS: Class 3 & 5 RX class: C & E H2
WEIGHT: 2.5 Kg (5.5 lbs.) incl. mounting tray DESIGN ASSURANCE LEVEL (dal): Level C (DO-178C & DO-254)
Part Number: Description:
0644.927-910 RT6512-(100), 20W, Std. Freq Range (118-136.975 MHz
0637.300-910 RT6512-(200), 20W, Ext. Freq Range (118-155.975 MHz)
0646.643-910 RT-6512-(201), 20W, Ext. Freq Range (118-155.975 MHz, Emergency Mode



0644.927-910
- VHF Transceiver 20W
