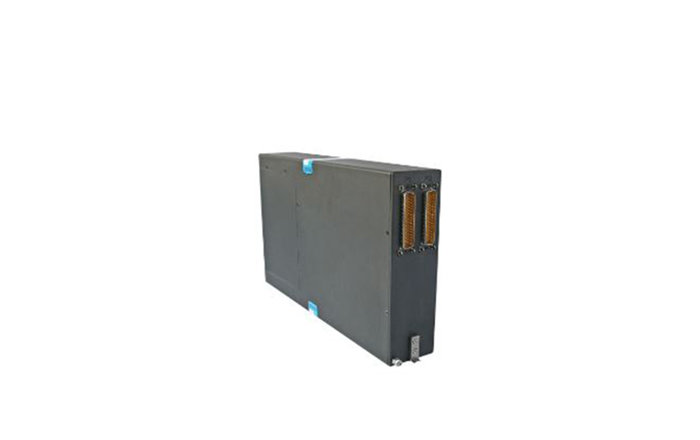

Picture of product IC6100-3-(01)

Part #: 0925.703-921

Model: IC6100-3-(01)

OEM:

Becker Avionics

Desc:

Digital Intercom Amplifier

Part Number :
Becker Logo

IC6100-3-(01)



FEATURES

  • The IC6100 IC Amplifier Unit is an Intercom System, software configurable and accordingly influences
  • Processes all incoming and outgoing audio signals from the headsets and from IC Ring Performs the logical functions necessary for aircraft intercommunication
  • Provides the creation of up to 2 IC Ring groups
  • Communicates together or isolated at will by using the Alert Tone activation Line #2
  • Allows the generation of up to 8 different aural tone signals which may be activated through discrete control lines
  • Can be used as HOT MIKE lines (up to 6 as Hot mike) or Alert Tone activation lines (alert tones from 3 to 8)
  • Alert Tone activation lines or one as alert tone (#1) and the other as ISOLATION line (#2)
  • 6  balanced SW configurable audio fixed inputs
  • 8 alert tone activation inputs (active low)
  • 3  control outputs for specific logical external activations
  • 6 control inputs for specific logical IC-action
  • Amplification of summed audio signal to 250 mW into 300 Ω or 500 mW into 8 Ω
  • Conditioning of mike audio to 50...400 mV into 150 Ω (standard carbon mike) or 0.5...4 mV into20 Ω (dynamic mike):- Automatic Gain Control (AGC).- Providing the standard mike BIAS voltage supply
  • Generation of a sidetone for the I  C.The sidetone is SW    configurable (all headsets at the same time)
  • Conditioning of mike audio for intercom operation:- Enhancing to IC Audio Line level  0.775 V into 600 Ω.- Intercommunication VOX level control by software
  • Amplification of summed audio signal to 250 mW into 300 Ω or 500 mW into 8 Ω
  • Conditioning of mike audio to 50...400 mV into 150 Ω (standard carbon mike) or 0.5...4 mV into20 Ω (dynamic mike):Automatic Gain Control (AGC).- Providing the standard mike BIAS voltage supply
  • Generation of a  sidetone for the IC.The sidetone is SW configurable (all headsets at the same time)
  • Conditioning of mike audio for intercom operation:- Enhancing to IC Audio Line level  0.775 V into 600 Ω.- Intercommunication VOX level control by software
  • Addition of an incoming IC audio signal to the summed-up monitor audio; adjustment of the IC audiolevel via the SW program by 0 .... -48 dB
  • Interconnection and separation of the IC circuits by using a dedicated alert tone line
  • Winchman  Individual VOX level adjust is performed  via discrete control lines (#1)
  • Interface facility for IC Amplifier Unit configuration
  • Initialization of a system selftest upon power-on (P_BIT) , a background test routine iscontinuouslyrunning (C-BIT)
  • Provision of 2 alternative internal operation voltage(s) from either of the airframe power supply buses
  • lnput definition for VOX-level adjust line will be as follows:  Single click:   Active LO, Input voltage ≤ 1 V (min. LO time 0.3 s, max. LO-time ≤ 2 s)- Reset click:   Active LO, Input voltage ≤ 1 V (LO-time > 3 s)
Part Number: Description:
0925.703-921 IC Amplifier Unit



0925.703-921
- Digital Intercom Amplifier
Price Condition Status
RFQ RFQ RFQ
