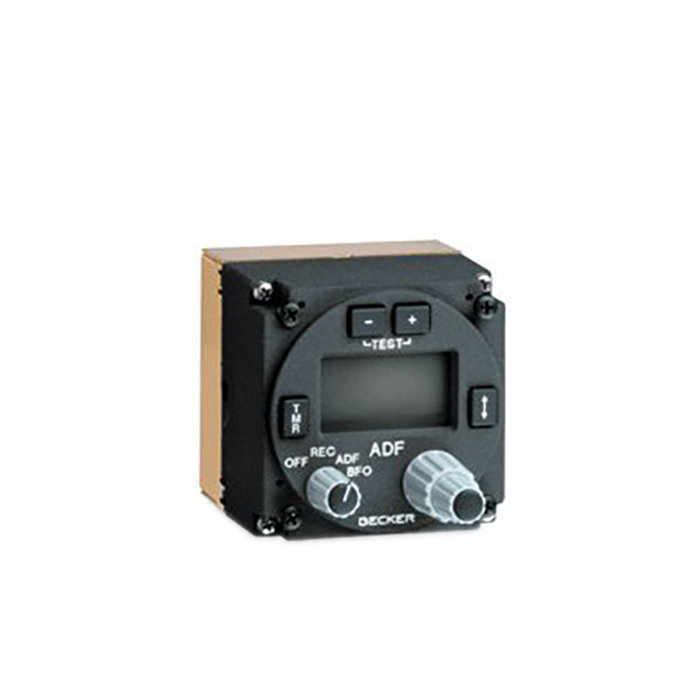

Picture of product CU5502-(1)-101

Part #: 0503.800-912

Model: CU5502-(1)-101

OEM:

Becker Avionics

Desc:

ADF Control Unit for RA3502-X (2 1/4)

Part Number :
Becker Logo


CU-5502
FEATURES
  • Control Unit for remotely controlled NAV receiver
  • LCD Display
  • Active / Preset Frequency
  • Timer Function
  • 14/28 VDC Red/Orange Illumination
  • Qualifications and Specs: LBA no. 10.921/53 JTSO, BAPT A132 880 J, RTCA DO-179 JTSO-2C41d, FTZ 17 TR 2010, ED-12B/DO-178B Level C, D1-BA(MN)XXXXXXZBABATAXXX, EUROCAE/RTCA ED-14C/DO-160C



SPECIFICATIONS
Supply Voltage: 10-32 VDC Current Consumption Without Panel Lighting: ≤ 60 mA
Panel Lighting: ≤ 160 mA @ 13.75 VDC ≤ 80 mA @ 27.5 VDC Operating Temperature: -20° C to +55° C
Storage Temperature: -55°C to +85°C Altitude: 50,000 ft
Interface: RS 422 serial line Dimensions: 61.3 H x 61.3 W x 62 D mm
Weight: 0.26 kg
Part Number: Description:
0503.800-912 ADF Control Unit for RA3502-X (2 1/4)



0503.800-912
- ADF Control Unit for RA3502-X (2 1/4)
Price Condition Status
RFQ RFQ RFQ
