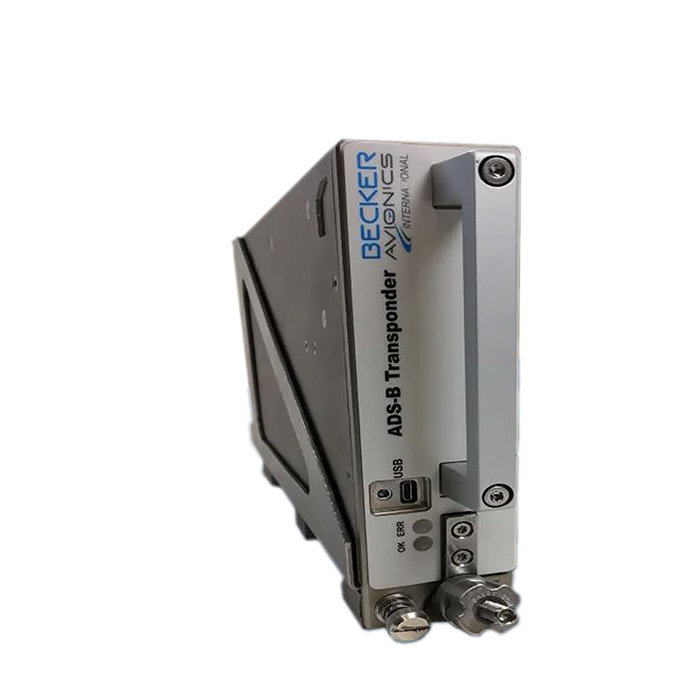

Picture of product BXT6513-(020)

Part #: 0657.948-915

Model: BXT6513-(020)

OEM:

Becker Avionics

Desc:

ADS-B Transponder w/ Diversity and Cloak Mode

Part Number :
Becker Logo


BXT6513-(020)

FEATURES

  • Designed for fixed and rotary wing applications
  • Backshell and Mounting Tray
  • External memory module for configuration data
  • Smooth, light weight design
  • No ventilation slots
  • No forced cooling
  • Quick Configuration
  • Field Loadable Software for system upgrades
  • On-wiring maintenance
  • Diversity or single antenna configuration
  • TCAS II compliant
  • Mode A/C Mode S and ADS-B
  • EASA, FCC certificated (ETSO-C112e, ETSO-C166B)



SPECIFICATIONS

power supply: 18.0...32.2 VDC- 14 W (typical @ 28 V) Current consumption: 0.6 A nominal, 7 A in TX mode
transmitter power: min. 250 W ANTENNA DIVERSITY: YES
TCAS II COMPLIANCE: YES vibration: Fixed wing & Rotary wing (SMB2, U2FF1)
Operating Temperature: -45°C to +70°C DESIGN ASSURANCE LEVEL (dal): Level C
Certification: ETSO C112e-ETSO C166b  STANDARDS: ED-23C, DO-186B, ED-67, DO-207, DO160G
dimension: (WxHxL) 47 x 171 x 276 mm ads-b out: 1090 MHz, Class B1
WEIGHT: 1.6 Kg (3.5 lbs.)  EXTENDED SQUITTER: YES
Part Number: Description:
0657.948-915 ADS-B Transponder w/ Diversity and Cloak Mode



0657.948-915
- ADS-B Transponder w/ Diversity and Cloak Mode
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
