NSN: |
|
OEM: |
Becker Avionics |
Desc: |

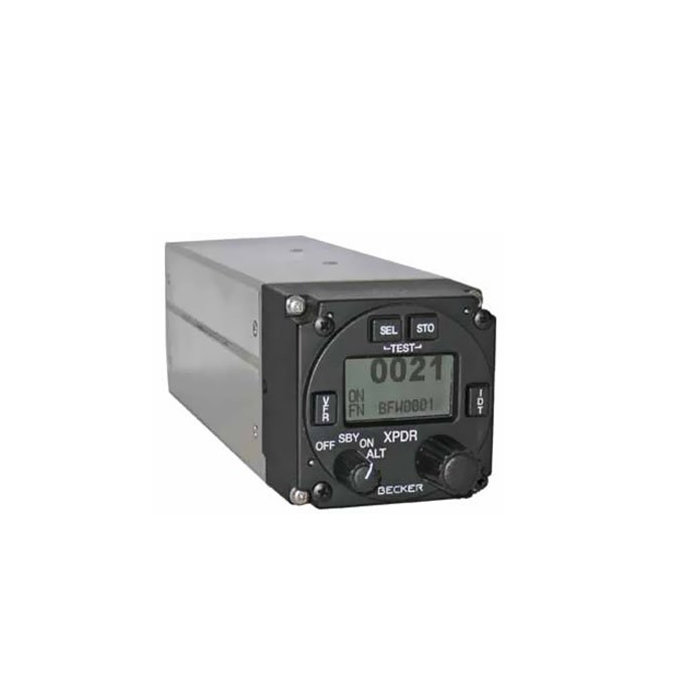

2-1/4" Mode S Transponder, 150W |
FOR REFERENCE ONLY
FEATURES
TECHNICAL DATA
Supply voltage: | 10.0 V to 33.0 V DC | Current consumption typical, without illum.: | Operation: 0.43 A at 14 V 0.25 A at 28 V Standby: 0.22 A at 14 V 0.14 A at 28 V |
Power-up time: | 2 sec. (internal self-test) | Ext. fuse protection: | 5 A slow-blow |
Operating temperature: | - 20°C to + 55°C (short-time + 70°C) | Storage temp: | - 55°C to + 85°C |
Operating altitude: | 50.000 ft | Operating modes: | Mode A, Mode A+C, Mode S |
Weight: | approx. 1.764 lbs | Certifications: | ETSO - 2C112a, EASA.21O.322 |
Interfaces: | Altim. serial and parallel Avionics data link processor |
Receive frequency: | 1030 MHz ± 0.2 MHz | Sensitivity (MTL): | - 74 dBm +/- 3 dB |
Selectivity: | ± 15 MHz > 40 dB ± 25 MHz > 60 dB | Dynamic range: | ≥60 dB |
Side lobe suppression: | 3-pulse method (A/C) P5 (Mode S) | Nominal impedance: | 50 Ω |
Transmit frequency: | 1090 MHz ± 1 MHz | Transmitter type: | Solid state |
Transmit power: | ≥250 W | Reply rate limitation: | 500...1200 replies / sec. configurable |
Nominal output: | 50 Ω impedance |
Part Number: | Description: |
---|---|
0588.687-915 | 2-1/4" Mode S Transponder, 150W |
