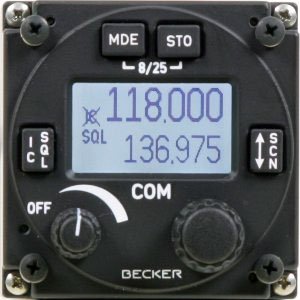

Picture of product AR6201-(000)

Part #: 0610.321-921

Model: AR6201-(000)

OEM:

Becker Avionics

Desc:

VHF Comm Radio (2", Green Display)

Part Number :
Becker Logo


AR 6201
FEATURES
  • Compact VHF Transceiver (2 1/4" Mount)
  • Smaller and lighter than the previous AR 4201 version
  • State-of-the-art DSP (Digital Signal Processing) technology
  • Mountable in a 2 1/4" standard instrument panel recess
  • Efficient AM-transceiver, easy switching between 8.33 & 25 kHz modes
  • Full graphic LC-display, easy reading under all light conditions
  • Push button and display illumination can be dimmed
  • Standard or dynamic microphones can be used
  • Built-in test facility
  • Dual monitor mode allows scanning of two channels
  • Integrated VOX/Intercom circuit, allows communication between pilot & co-pilot
  • Available in two versions: one with switch over for both 8.33 & 25 kHz, or 25 kHz only



SPECIFICATIONS
Frequency: 118.000 to 136.990 MHz Channel Spacing: 8.33 or 25 kHz
Channel Selection: 8.33 or 25 kHz (selectable) RF-Output Power: > 6 W (carrier power)
Receiver Sensitivity:  > 12 dB sinad for 2 uV Input Voltage Range: 9 to 36 Vdc
Operating Temperature: -20°C to +55°C, for short time up to +70°C Current Consumption: 1,6A @ 12 Vdc (transmit),  85mA @ 12 Vdc (receive standby)
Certification: ETSO 2C37e & 2C38e TSO C169a  Function: dual watch mode, integrated VOX/Intercom
Part Number: Description:
0610.321-921 Green Display, VHF Comm Radio
0614.203-910 White Display, VHF Comm Radio



0610.321-921
- VHF Comm Radio (2", Green Display)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
