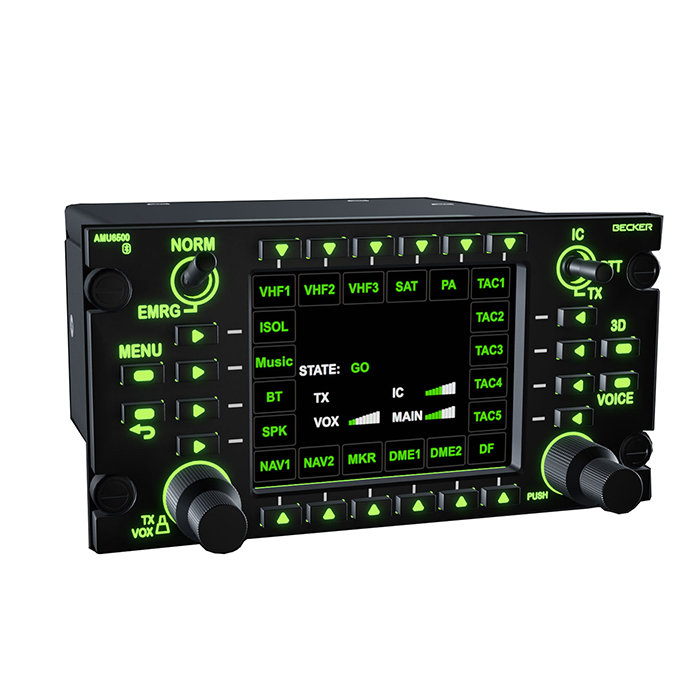

Picture of product AMU6510-(005)-(XX)
Part #: 0675.725-921
Model: AMU6510-(005)-(XX)
Desc: Audio Management Unit
OEM: Becker Avionics
Part Number :

Becker-avionics







FEATURES

  • Standalone and Modular: Expandable audio management unit tailored to meet diverse operational needs
  • Enhanced Usability: Intuitive human-machine interface with superior usability features
  • Customizable Functionality: Individually programmable soft keys and user-defined functions
  • Mission-Ready Design: Specifically configured for military and mission-focused aviation platforms
  • Innovative Hardware and Display Architecture: Supports unique multicast and intercom functionalities
  • Advanced Safety and Redundancy: Decentralized design ensures robust reliability and safety
  • Exceptional Value: Delivers crystal-clear communication with numerous advanced features at an optimal price-performance ratio
  • Supports up to 12 transceivers
  • 3D Spatial Audio: Immersive spatial sound capability
  • Passenger and Crew Connectivity: Includes passenger phone audio integration and phone call functionality
  • Stereo Music Input: Wideband audio input (line-in) for music and other audio sources
  • Certified to ETSO-C139a standard



SPECIFICATIONS

Input Voltage: 28 VDC EMERGENCY VOLTAGE: 18 VDC
Weight: 2.7 lbs. DIMENSIONS: 75.8 x 145.8 x 176.4 mm  (3 x 5.7 x 6.9 inch)
operating Temperature: -40° to +55° C Altitude: 55,000 Feet
storage Temperature: -55° to +85° C Output Voltage: #1:  0-5 Vdc regulated #2:  5 Vdc fixed regulated
short time: +70 °C SERVICE INTERFACE (USB): USB 2.0 with Micro B connector
forced cooling: No Forced cooling required speaker amplifier: 9 W



Part Number: Description:
 0675.725-921 Audio Management Unit





0675.725-921
- Audio Management Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
