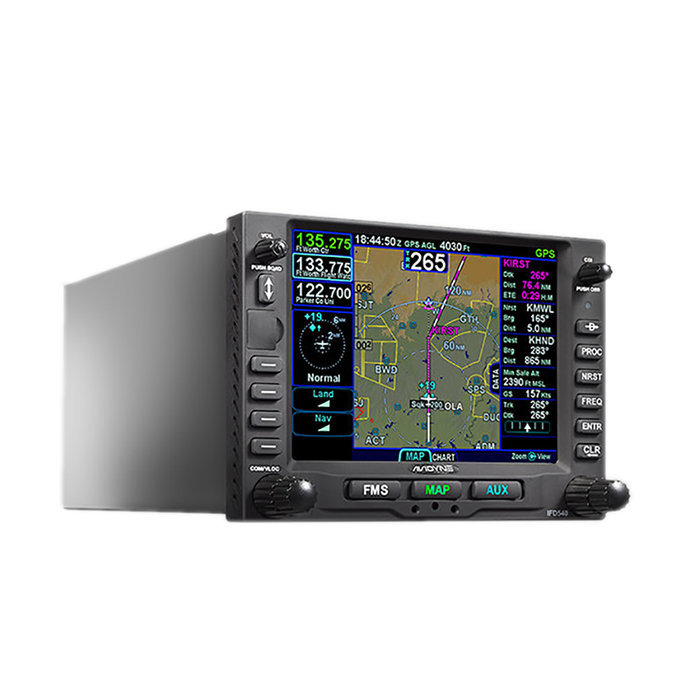

Picture of product IFD540

Part #:

Model: IFD540

OEM:

Avidyne

Desc:

FMS/GPS/NAV/COM (10W, Black)

Part Number :

avidyne-logo





IFD540

FEATURES

  • Avidyne’s IFD540 FMS/GPS/NAV/COM is a 5.7” touchscreen navigator
  • Includes CMax™ Approach Charts and Airport Diagrams
  • The IFD540 also supports optional European VFR (Bottlang) Charts for over 2,200 airports in 29 European countries
  •  Graphical flight planning capability allows for easy editing of your flight plan with the touch of the screen
  • GeoFill™ intelligently predicts the next waypoint entry
  • GeoFill can reduce data entry by as much as 75%, reducing head-down time, and ultimately increasing efficiency and safety
  • Terrain Awareness (SVS-TA) is provided via terrain coloration, providing visual Caution-Warning Alerting System (CAS) alerts and aural alerts terrain hazard awareness and alerting
  • Forward Looking Terrain Alerting (FLTA) alerting provides an extra measure of safety by displaying a solid yellow or red impact point based on projected flight path in the event that a collision with terrain is projected
  • Standard high, low and grouping symbology is used to clearly depict obstacles on the SVS display
  • Uses standard traffic symbology with traffic depictions indicating relative threat level by their size and relative altitude and bearing
  • Airfields are depicted with a METAR-style flag when in field of view
  • With valid METAR data from your datalink, airfield flags will be color-coded to represent the ceiling and visibility, consistent with the moving map presentation



SPECIFICATIONS

DISPLAY: 5.7" Diagonal w/Touch Screen resolution: Full VGA-640 x 480 pixels
screen: 65,535 Colors, Ultrabright sunlight readable w/ LED Backlighting Dimension: Width: 6.30" (16.0cm), Height: 2.66" (11.7 cm), Depth: 11.00" (27.5 cm) behind panel including connector
weight w/TRAY & CONNECTORS: 8.79 lbs. (3.99 kg) POWER REQUIREMENTS: 11-33 VDC, 4.4A/6.5 Xmit @ 14 vdc, 2.2/4.0A Xmit @ 28VDC
TEMPERATURE: Operating Temp: -20°C to +55°C, Short Term Temp: +70°C VHF COM POWER OUTPUT: 10 Watts nominal, Optional 16 Watt (for 28 VDC installations only)
altitude: to 50,000 ft. eNVIRONMENTAL: DO 160E
Part Number: Description:
700-00182-000 WAAS GPS Receiver
700-00182-001 WAAS GPS Receiver
700-00182-002 WAAS GPS Receiver
700-00182-100 WAAS GPS Receiver
700-00182-101 WAAS GPS Receiver
700-00182-102 WAAS GPS Receiver
850-00182-000 WAAS GPS Receiver
850-00182-002 WAAS GPS Receiver
850-00182-100 WAAS GPS Receiver
850-00182-101 WAAS GPS Receiver
850-00182-102 WAAS GPS Receiver



700-00182-000
- GPS/Nav/Comm (Black Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$11,500.00 SV OUTRIGHT REQUEST LEAD TIME
$2,950.00 SV EXCHANGE REQUEST LEAD TIME
700-00182-001
- GPS/Nav/Comm w/ Video (Black Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
700-00182-002
- GPS/Nav/Comm (16W, Black Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
700-00182-100
- GPS/Nav/Comm (Gray Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
700-00182-101
- GPS/Nav/Comm w/ Video (Gray Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
700-00182-102
- GPS/Nav/Comm (16W, Gray Bezel)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00182-000
- 700-00182-000 FMS/GPS/NAV/COM (10W, Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00182-002
- FMS/GPS/NAV/COM (16W, Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00182-100
- FMS/GPS/NAV/COMM (10W, Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00182-101
- GPS/NAV/COMM/WIFI/BT/FLTA/SVS/VIDEO, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00182-102
- FMS/GPS/NAV/COM (16W, Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
