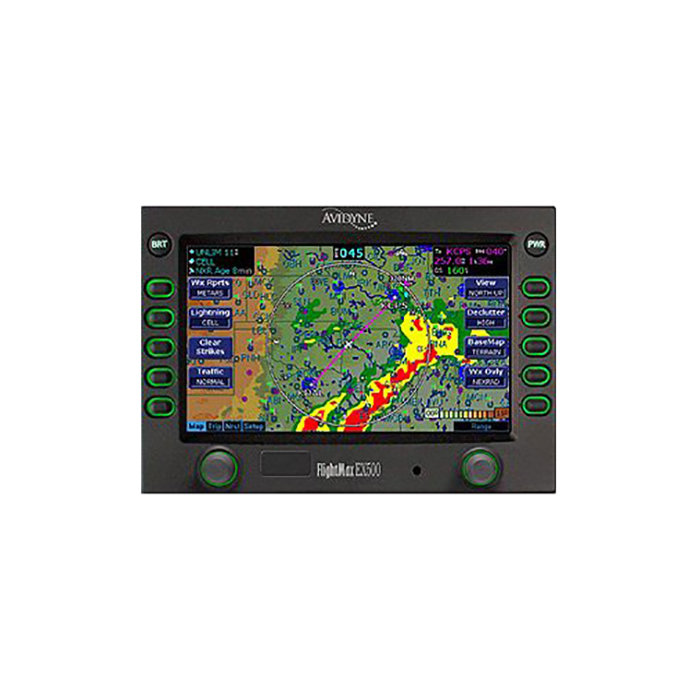

Picture of product EX500

Part #:

Model: EX500

OEM:

Avidyne

Desc:

MultiFunction Display

Part Number :

avidyne-logo



EX500

FEATURES

  • 5.4" diagonal MFD able to display radar, datalink weather, lightning, traffic, and terrain data in an easy-to-interpret format
  • Full overlay capability allows you to add or remove traffic, Stormscope, and radar, with 180-degree forward view and 360-degree center view maps

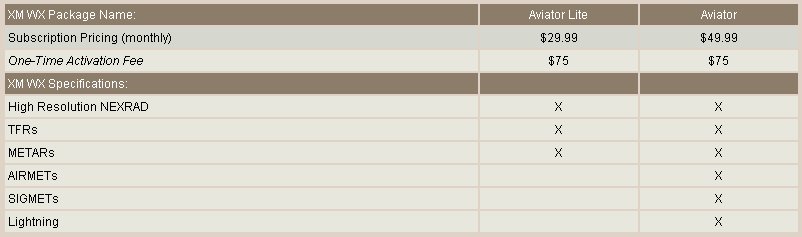

  • Datalink capability via XM Satellite Weather providing NEXRAD, METARs, AIRMETs, SIGMETs, TFRs and lightning updates (click Here for service plans pricing)
  • Terrain and water base map with man-made obstacles greater than 200 AGL
  • Includes Trip page providing supplemental information about your route of flight including a list of all remaining waypoints in the active flight plan, with distances and times for each leg
  • Includes standard traffic interface to Goodrich Skywatch / Skywatch HP , 9900B / 9900BX and Honeywell KTA-870/KMH-880
  • Includes standard stormscope interface to Goodrich WX-500
  • Can display curved flight path segments such as DME arcs, holding patterns and procedure turns when interfaced with Garmin GNS-430 and GNS-530 series units
  • Optional radar interface to Collins WXR-250/270/300, Bendix RDR-100/1200/1300, Honeywell RDR-2000/2100, RDS-81/82/84/86, and Bendix RDR-130/150/160 (note: EGPWS interface not available for MFD with RDR-130/150/160 interface)
  • Easy access to radar modes, tilt control, and bearing adjust
  • Optional Honeywell/Bendix/King EGPWS interface
  • Optional TCAS I or TCAS interface

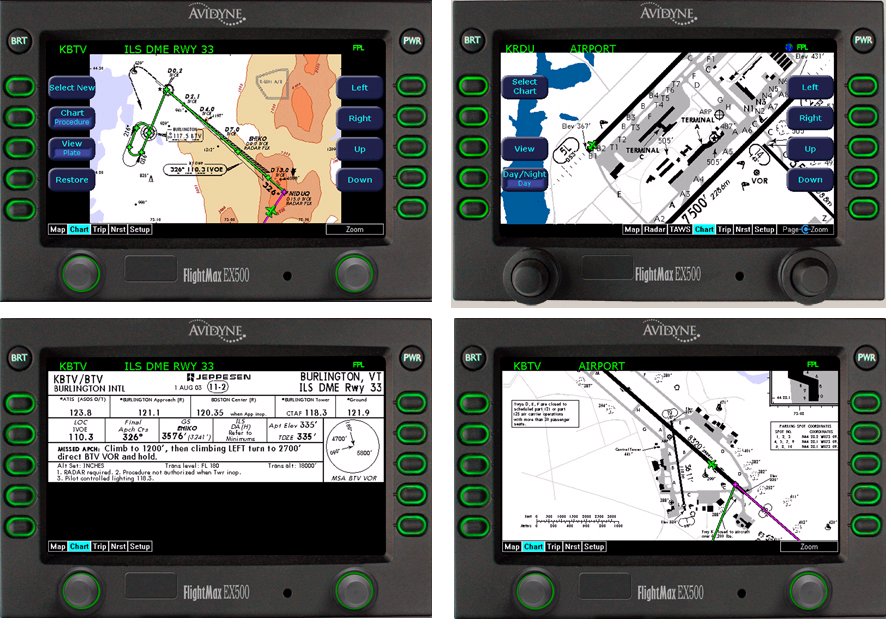

  • Optional CMAX Electronic Charts allows for viewing approach charts and airport diagrams (for examples, click Here )
  • Optional International Jeppesen and terrain database (covers Europe, Asia, Africa)

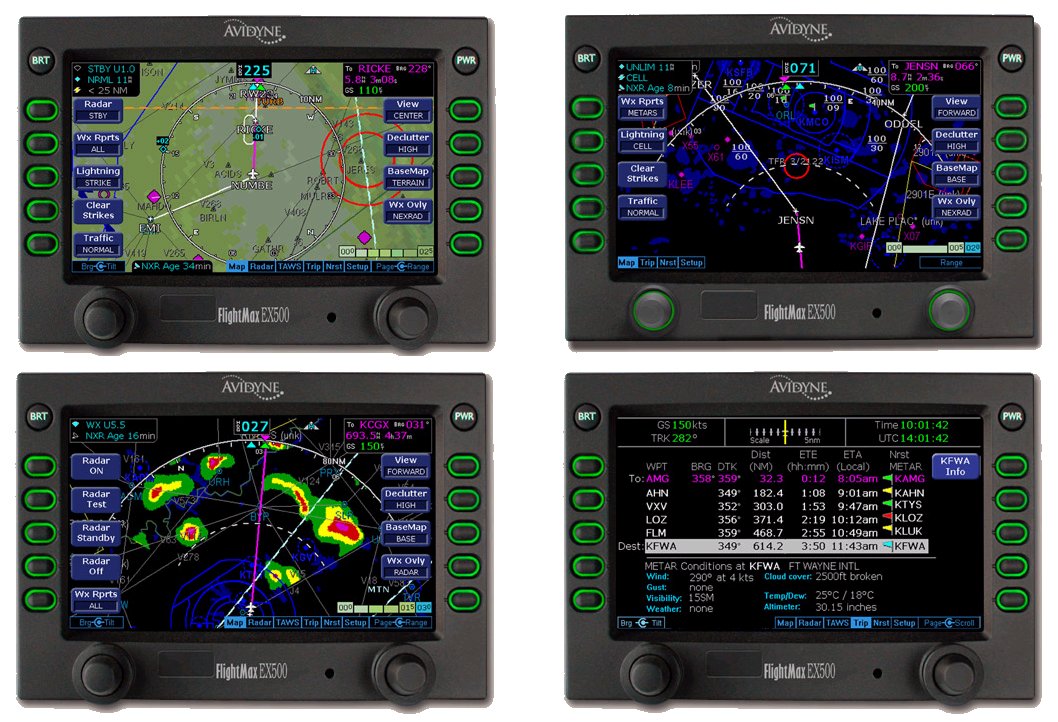

  • CLICK Here to view more screen shots of the EX500



SPECIFICATIONS
TSO: C63c, C110a, C113, C118, C147 Display: 5.4 Diagonal, 616 x 350 pixels, 65,535 colors, Ultrabright sunlight readable, Extra-wide viewing angle
Weight: 5.4 lbs. Dimensions: 4.35H x 6.25W x 10.75D
Power: 2.0A @ 28VDC Cooling: Internal Forced Air Cooling Provided
Altitude: Up to 25,000 ft. Environmental: DO 160D, To 50,000 ft., -20C to +55C Operating +70C Short Term
Datalink: Internal datalink transceiver using FlightMax Datalink Weather Service & ORBCOMM satellite network GPS Interface: RS-232, ARINC 429 GAMA Graphics
Heading Interface: ARINC 407 - Synchro XYZ, ARINC 429 Warranty: 2 Years parts & labor included
Part Number: Description:
700-00007-001 No Radar Interface - Black w/Quake SC**
700-00007-002 RDR1100/1200 Interface, Black w/Quake SC**
700-00007-003 RDR1300 Interface, Black w/Quake SC**
700-00007-004 RDR130/150/160 Interface, Black w/Quake SC**
700-00007-005 RDS8X/RDR2XXX Interface, Black w/Quake SC**
700-00007-006 WXR270/270A Interface, Black w/Quake SC**
700-00007-701 No Radar Interface - Gray no Quake SC**
700-00007-702 RDR1100/1200 Interface, Gray no Quake SC**
700-00007-703 RDR1300 Interface, Gray no Quake SC**
700-00007-704 RDR130/150/160 Interface, Gray no Quake SC**
700-00007-705 RDS8X/RDR2XXX Interface, Gray no Quake SC**
700-00007-706 WXR270/270A Interface, Gray no Quake SC**
700-00007-801 No Radar Interface - Black no Quake SC**
700-00007-802 RDR1100/1200 Interface, Black no Quake SC**
700-00007-803 RDR1300 Interface, Black no Quake SC**
700-00007-804 RDR130/150/160 Interface, Black no Quake SC**
700-00007-805 RDS8X/RDR2XXX Interface, Black no Quake SC**
700-00007-806 WXR270/270A Interface, Black no Quake SC**
700-00007-901 No Radar Interface - Gray w/Quake SC**
700-00007-902 RDR1100/1200 Interface, Gray w/Quake SC**
700-00007-903 RDR1300 Interface, Gray w/Quake SC**
700-00007-904 RDR130/150/160 Interface, Gray w/Quake SC**
700-00007-905 RDS8X/RDR2XXX Interface, Gray w/Quake SC**
700-00007-906 WXR270/270A Interface, Gray w/Quake SC
850-00010-001 System P/N* - No Radar Interface
850-00010-002 System P/N* - RDR1100/1200 Radar Interface
850-00010-003 System P/N* - RDR1300 Radar Interface
850-00010-004 System P/N* - RDR130/150/160 Radar Interface
850-00010-005 System P/N* - RDS8X/RDR2XXX Radar Interface
850-00010-006 System P/N* - WXR270/270A Radar Interface
*System P/N = EX500 & Pilot's Guide  **Quake SC is the modem used w/Orbcomm narrowcast datalink system. The Orbcomm system was deactivated in 2011, leaving these part numbers interchangeable.



700-00007-004
- Multifunction Display (RDR-130/150/160)
Price Condition Status
$5,750.00 SV OUTRIGHT IN WORK
700-00007-001
- Multifunction Display (non-radar)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-002
- Multifunction Display (RDR-1100/1200)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-003
- Multifunction Display (RDR-1300)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-005
- Multifunction Display (RDS-8X, RDR-2XXX)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
700-00007-701
- Multifunction Display (non-radar)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-704
- Multifunction Display (RDR-130/150/160)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-705
- Multifunction Display (RDS8X, RDR2XXX)
Price Condition Status
$3,950.00 SV OUTRIGHT REQUEST LEAD TIME
700-00007-706
- Multifunction Display
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-801
- Multifunction Display
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-802
- Multifunction Display (RDR-1100/1200)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-803
- Multifunction Display ( (RDR-1300))
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-804
- MultifuNction Display (RDR130/150/160)
Price Condition Status
$5,950.00 SV OUTRIGHT REQUEST LEAD TIME
700-00007-805
- Multifunction Display (RDS-8X, RDR-2XXX)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-806
- Multifunction Display (WXR250/270/300)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
700-00007-904
- Multifunction Display (RDR-130/150/160)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
850-00010-105
- Option- EGPWS interface
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
850-00016-000
- DC50 Datalink Antenna Coupler
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The EX600 is basically an EX500 with a new slightly taller bezel and the added "Quick Pan" feature.

The interfaces & connectors are the same for both the EX500 & EX600.
