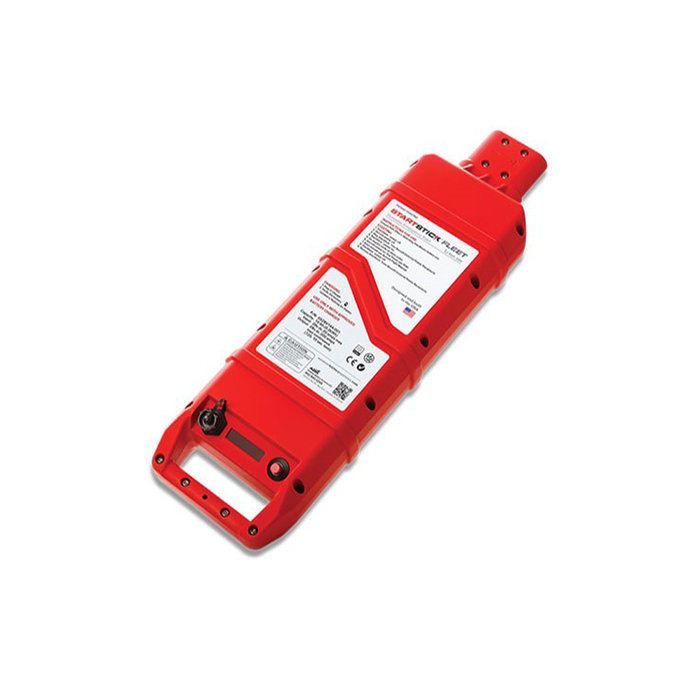

Picture of product Startstick 15

Part #: 100155

Model: Startstick 15

OEM:

Aviation Battery Sys

Desc:

StartStick 15

Part Number :



no image



FEATURES

  • Digital Display, sunlight readable display shows battery status and capacity
  • Cable-less,compact design
  • Durable Casing
  • 3–4 Starts per Charge
  • Recharge In Flight
  • Over and under voltage protection
  • State of charge and voltage display
  • 2.8 hours for complete recharge when the battery is fully discharged
  • On-board diagnostics
  • Over current and short circuit protection
  • Smart Lithium Technology
  • Transmits up to 28 kilowatts of power
  • Impact, water and chemical resistant polymer case
  • Fully Serviceable Battery Pack
  • Includes 120/220V 50/60hzs battery charger



SPECIFICATIONS

weight: 14.9 lbs Length: 21.21”
Width: 6.19” Height: 3.07”
Load on GPU Connector: 12.4 lbs/foot Number of Starts per Charge: 3–4
Capacity: 15 Ah Capacity (Lead acid equivalent): 29.4 Ah
Nominal Voltage: 26.4 Volts Max Current (Pulse): 800 Amps
Operating Temperature: 0 to 60° C Max Current (Continuous): 300 Amps
AC Charger Input Voltage: 110/240 Volts Max Current (Chemistry): 25,866 Amps
In-Flight Charge Circuit Rating: 5 Amps Charge Rate (Software regulated): 3.5 Amps
Time Before Discharge: 44 minutes Charge Cycles: >1,000
Engine Starts: 3,000-4,000 Charge Time (After one start): 25–35 minutes
Charge Time (Dead battery): 4.2 hours



Part Number: Description:
100155 StartStick 15















100155
- Groud Power Unit
