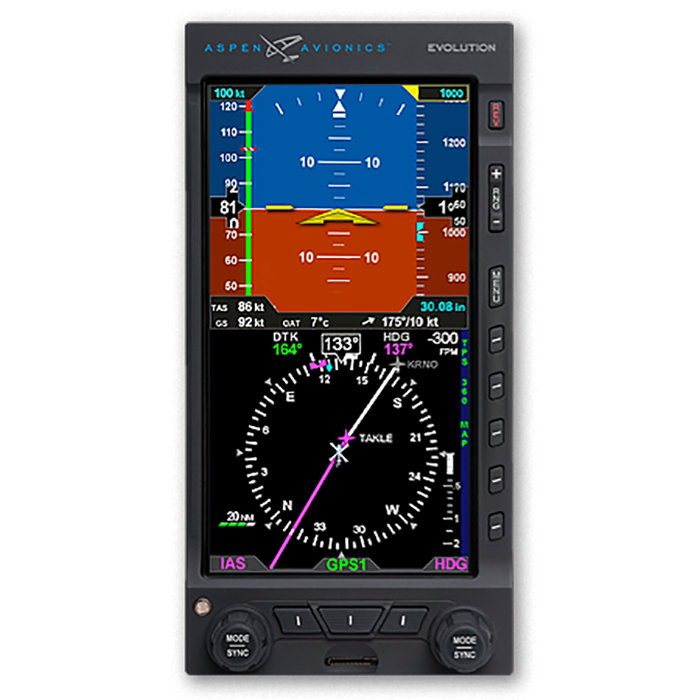

Picture of product EFD1000H Pilot

Part #: 920-00001-102

Model: EFD1000H Pilot

OEM:

Aspen Avionics

Part Number :
aspen

EFD1000H Pilot
 FEATURES
Pilot H Features:
  • Special vibration mount meets DO-160F helicopter vibration standards.
  • Airspeed and altitude tapes
  • Integral altitude alerter
  • Slaved Directional Gyro with heading bug
  • Base map view with flight plan overlay
  • Display of real--time winds aloft, OAT, TAS, ground speed
  • Built-in backup battery
  • Built-in emergency GPS
  • Lightweight, compact, all solid-state

SPECIFICATIONS

General Specifications:

Overall Dimensions   3.50” W x 7.00”H x 4.15”D
Weight   2.9 lbs. with mounting bracket
Display Type   6.0” Diagonal TFT Active Matrix LCD
Display Resolution   400x760
Display Backlight   High Intensity White LED
Display Colors   32,768

Operational Specifications:

Operating Temp   -20°C to +55°C
Storage Temp   -55°C to +85°C
Max Operating Altitude (unpress.)   35,000 ft.
Cooling   Integral Fan
Max Humidity   95% at 50°C
Input Voltage   +8 to +32 Volts DC
Max Current   2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc

I/O Specifications:

ARINC 429 Inputs   5 Low Speed
ARINC 429 Outputs   1 Low Speed
RS-232 Inputs   5
RS-232 Outputs   3
Pitot / Static   Quick Connect

Certification Specifications:

FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level B

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet

Evolution Flight Display System




920-00001-102
- Helicopter Primary Flight Display (DG Only)
Price Condition Status
RFQ RFQ RFQ
