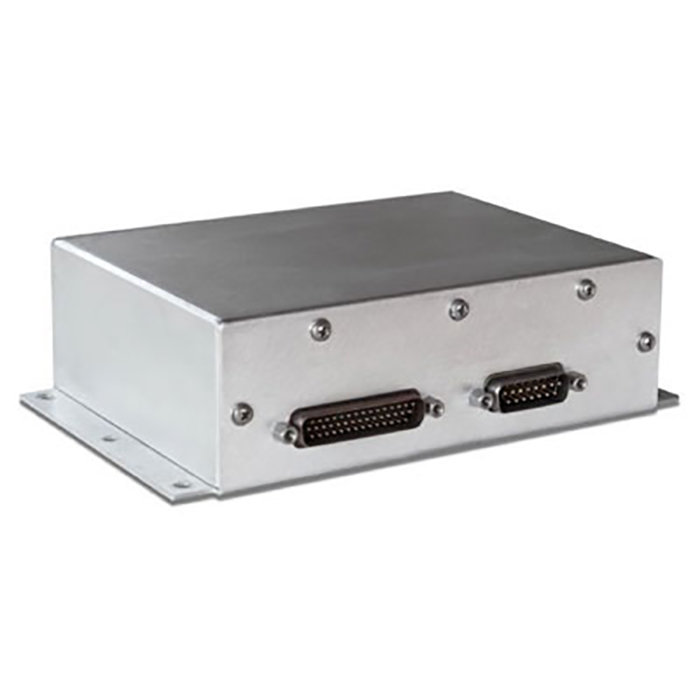

Picture of product EA100

Part #:

Model: EA100

OEM:

Aspen Avionics

Part Number :


EA100
FEATURES
  • The EA100 Adapter for Autopilots provides digital-to-analog from your Evolution Flight Display’s AHRS to deliver accurate and reliable attitude information directly to your autopilot
  • This digital autopilot interface improves autopilot safety and reliability
  • Reliable, accurate digital attitude information feeds directly into your autopilot
  • EA100 Adapter easily integrates into your auto pilot system
  • Built-in AHRS fault detection, immediate autopilot disconnect when fault is detected
  • Install with single Pro PFD or with a multi-display Evolution Package
  • Redundant attitude source through MFD1000 when coupled with an Evolution 2000 or Evolution 2500 Package
  • Improved safety, lower maintenance costs
  • The EA100 Adapter provides a digital-to-analog data conversion between the Evolution Flight Display EFD1000 and an aircraft’s attitude-based autopilot system
  • Display’s Attitude Heading Reference System (AHRS) to provide accurate and reliable attitude information directly to your autopilot
  • The EA100 improves legacy autopilots by providing them with superior digital attitude information, and can breathe new life into an aging automatic flight control system

 SPECIFICATION

  • Input voltage: +11 to +32 Volts DC
  • Dimensions:   4.5” x 6.8” x 1.8”
  • Weight:   2.0 lbs.
  • Nominal Current:   1.0 amp
  • Software:   RTCA DO-178B Level C
  • Environmental:   RTCA DO-160E



Evolution Flight Display System





910-00013-001
- Autopilot Interface
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
920-00006-001
- Autopilot Attitude Interface Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
920-00006-002
- Autopilot Attitude Interface Adapter w/ 10' Cable
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
925-00401-002
- Autopilot Adapter w/ 10' Cable, Install Kit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
925-00401-003
- Autopilot Adapter w/ 20' Cable, Install Kit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
925-00401-004
- Autopilot Adapter w/ 30' Cable, Install Kit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
