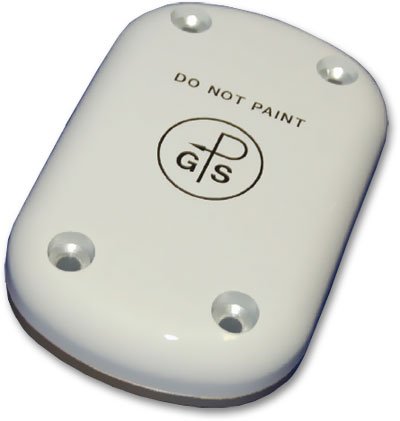

Picture of product AT-2300-326

Part #: AT2300-326

Model: AT-2300-326

OEM:

AeroAntenna

Desc:

GPS /XM Antenna (Arinc743)

Part Number :


AT2300-326
FEATURES
  • GPS/XM Satellite Receiver Antenna
  • Standard ARINC 743 Footprint
  • GPS 1575.42 +10.23 MHz / XM 2332.5-2345 MHz
  • Suitable for installation on all piston, turboprop & turbine airframes
  • Optimized for use with WAAS Gamma 3 GPS receivers
  • Approved under TSO C190
  • Designed to DO-160E
  • Env Cat: F2-AB[BD][S(CLMY)U(FF1)]X[FSXSZXXX[ZCZW]YH[A4J44][2A]CAC



SPECIFICATIONS
GPS SPECIFICATIONS
Frequency: 1575.42 +10.23 MHz Polarization: Right Hand Circular
Axial Ration: 3 dB Max at Bore Sight Relative Radiation: per RTCA/DO-301
Gain: 29.5 +3 dB Noise Figure: 2.5 dB Max @ 25°C
Impedance: 50 Ohms VSWR: <1.5:1
Power Handling: 1 Watt Voltage: 4.5-15 VDC
Current: 60 mA Max Connector:  TNCF
XM SPECIFICATIONS
Frequency: 2332.5-2345 MHz Polarization: Left Hand Circular
Axial Ration: 3 dB Max at Bore Sight Gain: 24 ± 2 dB
Noise Figure: 1.1 dB Max @ 25°C Impedance: 50 Ohms
VSWR: <1.5:1 Input IP3: -3dBm Min
DC Voltage: 3.6-5.5 VDC DC Current: 55 mA Max
Connector: TNCF
COMMON SPECIFICATIONS
Finish: Weatherable Polymer Weight: 8 oz Max
Altitude: 55,000' Operating Temp: -55°C to +70°C



AT2300-326
- GPS /XM Antenna (Arinc743)
