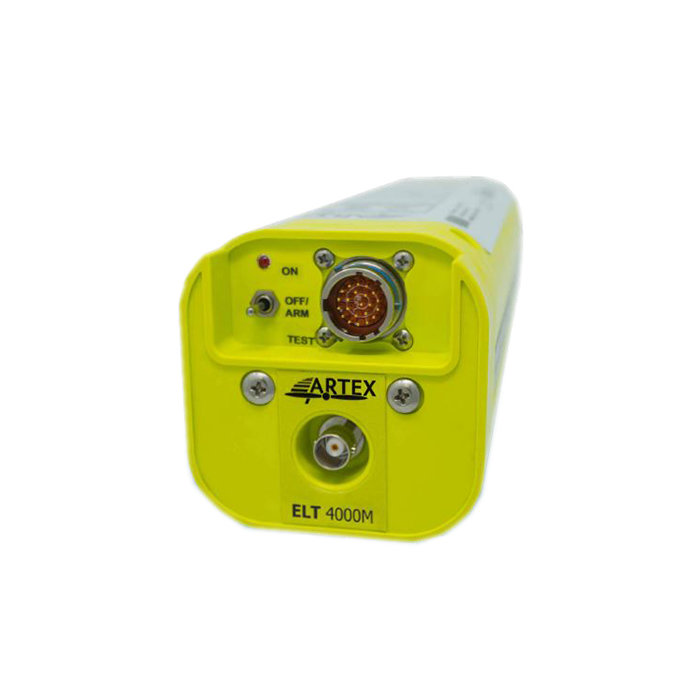

Picture of product ELT4000M

Part #: A3-06-3260

Model: ELT4000M

OEM:

ACR/Artex

Desc:

Emergency Locator Transmitter (Military)

Part Number :
Bendix King logo


ELT4000M

FEATURES

  • Automatic Fixed Emergency Locator Transmitter
  • Three-Frequency distress beacon, digital 406 MHz and anolog 243 and 121.5 MHz homing signals
  • Auto activation via internal G-switch
  • ARTEX ELT 4000M HM Helicopter version with 5 axis G-switch available
  • Single antenna connector and cable to transmitterblad-Blade, Rod, and Whip Antenna available
  • Compatible with legacy antennas
  • Easy maitenance and installation
  • Many cockpit remote switch options available
  • Can be connected to on-board GPS via Inergrated ARINCA429 interface
  • Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
  • If optional GPS data is embedded in digital transmission the search radius reduces down to 100m



SPECIFICATIONS

Operating Frequencies: 406.031 MHz (± 1 kHz)  / 121.5/243 MHz (+/0.005%)  Output Power: 406MHz: 5W for 24 hours @ -20°C to +55°C, 121.5MHz: 50mW for 50 hours @ -20°C to +55°C
battery: 5 year Alkaline , Voltage 12.0, Amp-Hour Rating 10.0 Activation method: Automatic by 4.5 +/-0/5 ft/sec  (2.3 G) Primary G-Switch or Manual
Battery: 6 year Lithium, Replacement Battery (P/N: 8322) Temperature: Operating: -20°C to +55°C (-4°F - 13°F)  Storage: -55°C to +85°C (-67°F - 185°F)
certifications:  (Pending) FAA, EASA Via Bilateral Approved, CAAC, ANATEL, IndustryCanada MEASUREMENTS: 11.63" (L) x 3.42 (W) x 4.15 (H) inches (29.5 x 9.9 x 10.5 cm)



Part Number: Description:
A3-06-3260 Emergency Locator Transmitter (Military)



°C



°C
A3-06-3260
- Emergency Locator Transmitter (Military)
Price Condition Status
$5,060.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Long messaging transmits longtitude and latitude.  Short messaging does not.
