Part #:

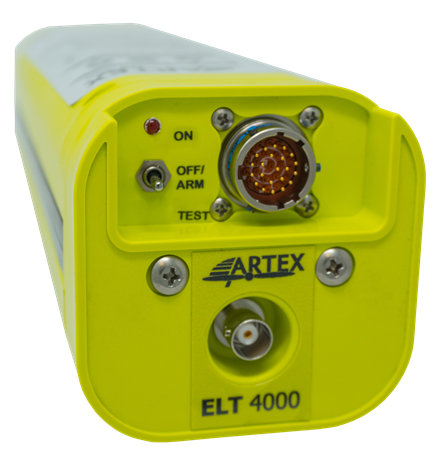

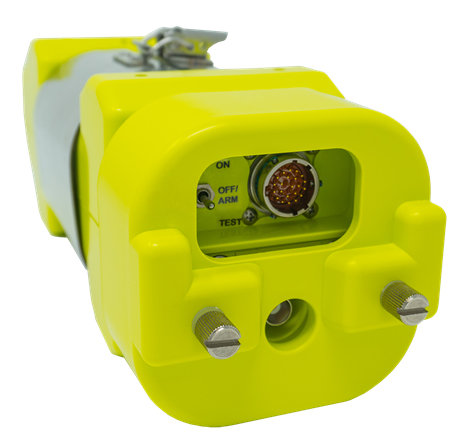

Model: ELT4000

OEM:

ACR/Artex

Desc:

ELT with Alkaline Batteries

Part Number :


ELT 4000
FEATURES
  • Transport-grade Automatic Fixed Emergency Locator Transmitter (ELT) that utilizes alkaline batteries
  • Dual Frequency distress beacon, digital 406 MHz and analog 121.5 MHz homing signal
  • Auto activation via internal G-switch
  • Dual-band antenna with single connector and cable to transmitter – Blade and Whip available
  • Compatible with legacy antennas
  • Easy maintenance and installation
  • Many cockpit remote switch options available
  • Can be connected to onboard GPS via Integrated ARINC429 interface
  • GPS data is embedded in digital transmission reducing search radius down to 100 meters Cospas-Sarsat Type Approved
  • Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
  • 5-year battery life (replaceable)
  • Ships non-hazmat



SPECIFICATIONS
Operating Frequencies: 406.031 MHz (+/- 1kHz) / 121.5 MHz (+/- 0.005%) Antenna options: Rod Antenna (110-338* or 8603*); Blade Antenna (110-340 or 8601) **Approvals for use of this antenna with ELT 4000 pending
emission designators: 16K0G1D (406.031 MHz) / 3K20A3X (121.5 MHz) gps: Built-in GPS Navigational Interface (ARINC429)
output power: 406 MHz: 5W (37 dBm) for 24 hours @ -20°C (-4°F) to +55 °C (131 °F); 121.5 MHz: 100 mW min (+20 dBm) for 50 hours @ -20 °C (-4°F) to +55 °C (131 °F) output connector: BNC Female (406/121.5 MHz)
activation: Automatic via Primary G-Switch by 4.5 +/- 0.5 feet per second (2.3 G) and Manual Activation battery: 5-year Alkaline
temperature certified to: Operating: -20°C to +55°C (-4°F to 131 °F), Storage: -55°C to +85°C (-67°F to 185°F) Self test: G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, and Low Battery
remote control: ON/ARM/TEST weight: 5.45 lbs (2.47 kg)
measurements: 11.63 (L) x 3.42 (W) x 4.15 (H) inches (295 x 87 x 105 mm) mounting: Mounting Tray Bottom (452-5050-1), Mounting Tray Top (452-3052-1), Mounting Tray Cap (452-5066-1), and Mounting Strap (A3-06-3043)
approvals: FAA, Cospas-Sarsat (CAAC, ANATEL, Industry Canada, and EASA Pending)
Part Number ELT 4000 ELT Description:
8260 Beacon & Battery
8261 Base Pack
8262 Base Pack with Rod Antenna and Remote Switch
8263 Base Pack with Blade Antenna and Remote Switch



In order to ship hazardous materials (HAZMAT) the shipper must have HAZMAT certified personnel. SEA will provide HAZMAT paperwork along with proper packaging and labeling for shipments directly to our customers.  If the shipment must be sent to another location such as a freight forwarder, SEA will provide the HAZMAT paperwork to the original ship to address only. Please contact your freight forwarder prior to ordering to verify that they are HAZMAT certified.  SEA is not responsible for issues that arise if your freight forwarder does not have HAZMAT qualified personnel.

8260
- ELT Beacon and Battery
Price Condition Status
$4,540.00 NEW OUTRIGHT REQUEST LEAD TIME
8261
- ELT Base Pack
Price Condition Status
$5,360.00 NEW OUTRIGHT REQUEST LEAD TIME
8262
- ELT Base Pack w/ Rod Antenna, Switch
Price Condition Status
$6,790.00 NEW OUTRIGHT REQUEST LEAD TIME
8263
- ELT Base Pack w/ Blade Antenna, Switch
Price Condition Status
$7,240.00 NEW OUTRIGHT REQUEST LEAD TIME
A3-06-3005
- ELT With Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Long messaging transmits longtitude and latitude.  Short messaging does not.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
