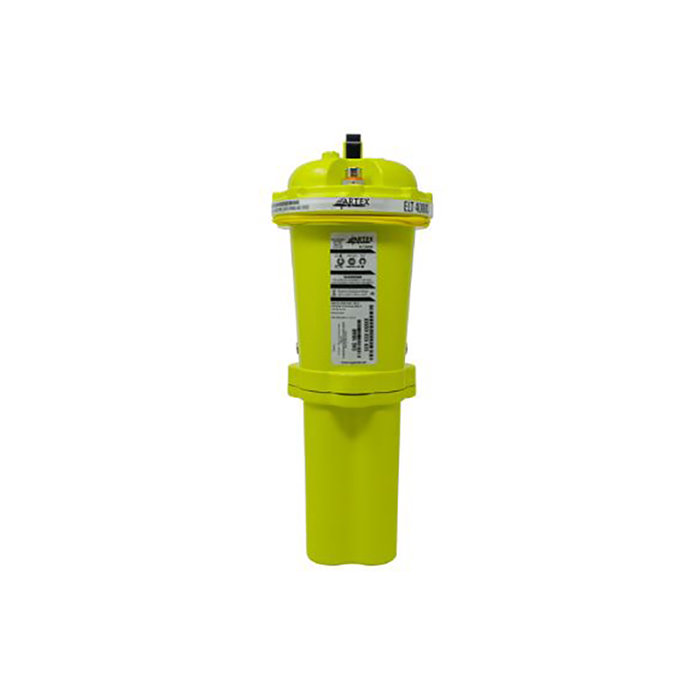

Picture of product ELT-4000S

Part #: A3-06-3168

Model: ELT-4000S

OEM:

ACR/Artex

Desc:

ELT Beacon and Battery

Part Number :





ELT 1000

FEATURES
  • FAA and EASA Approved
  • Rugged design with built-in buoyancy (no float collar)
  • Integrated GPS
  • Alkaline battery (exempt from TSO C142 and DO-227 requirements)
  • Five-year user replaceable alkaline battery system (on wing)
  • Special Condition exempt, no Hazmat shipping
  • Simple bracket for easy one-handed deployment
  • Compatible with existing ARTEX handheld programmers
  • Left and right-handed bracket configurations available



SPECIFICATIONS

Operating Frequencies: 406.031 MHz (+/- 1kHz) / 121.5 MHz (+/- 0.005%) Output Power: 406 MHz: EIRP 5 W (37 dBm) for 24 hours @ -20°C to +55°C / 121.5 MHz: EIRP min 100mW (min 20 dBm) for 50 hours @ -20°C to +55°C
gps: Integrated GPS Activation mode: Automatic (via water) and Manual (switch)
Battery: 5-year Alkaline Temperature: Operating: -20°C to +55°C (-4°F to 131 °F), Storage: -55°C to +85°C (-67°F to 185°F)
Self Test: Green LED validates ELT performance / Red LED indicates service required Antenna: Folding band antenna, Dual Frequency
Dimensions (incl. bracket): 6.2 (W) x 5.42 (D) x 14.7 (H) inches Certifications: TSO C126C, Cospas-Sarsat, Transport & Industry Canada, DO-178b Level D, FAA, EASA
Weight:  7.7 lbs (3.5 kg) Activation Switches: On-Off-Arm/Test
Part Number: Description:
A3-06-3168 ELT Beacon and Battery



In order to ship hazardous materials (HAZMAT) the shipper must have HAZMAT certified personnel. SEA will provide HAZMAT paperwork along with proper packaging and labeling for shipments directly to our customers.  If the shipment must be sent to another location such as a freight forwarder, SEA will provide the HAZMAT paperwork to the original ship to address only. Please contact your freight forwarder prior to ordering to verify that they are HAZMAT certified.  SEA is not responsible for issues that arise if your freight forwarder does not have HAZMAT qualified personnel.

A3-06-3168-1
- ELT Beacon and Battery (Boeing Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
A3-06-3168
- ELT Beacon and Battery
Price Condition Status
$6,595.00 NEW OUTRIGHT DUE IN

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
